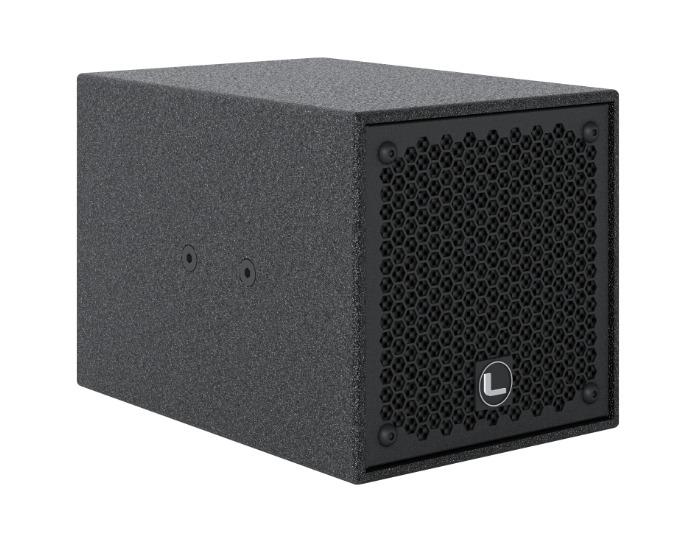

Ionic 5CXv

Ultra compact passive coaxial speaker

Compact & versatile, easy to use, easy to install and portable speaker.

5″ coaxial speaker offering a coverage of 70º conical dispersion and 117dB SPL (program).

The Ionic-5CXv is a passive coaxial speaker ideal for outdoor installations. This ultra-compact cabinet features a double polyurea coating, aluminium grill, polyester foam protection, glamp connectors and weatherproof speaker cones.

The Ionic-5CXv uses a 5” coaxial speaker (1.5” LF voice coil and 1” HF voice coil) offering a coverage of 70º conical dispersion and 117dB SPL (300 W program).

Weight has been left as low as possible providing easy set ups in fixed installation as well as easy transport for portable applications.

Although this cabinet can be used without a processor, the best performance is achieved when using our presets, optimised for LUKA processors and GTX amplifiers. Please note that using the cabinet without our recommended processors or amplifiers may affect the product warranty.

The Ionic cabinets are compact, modular and powerful and the complete series also includes two sub units and four column models.

Perfectly suited for:

Outdoor installations
Clubs & Theatres
Houses of Worship
Solo artists, band, DJ
Public buildings
Commercial complex

Coaxial Performance: Two-way passive system featuring a 5″ coaxial transducer (1.5″ voice coil) and a 1″ compression driver.

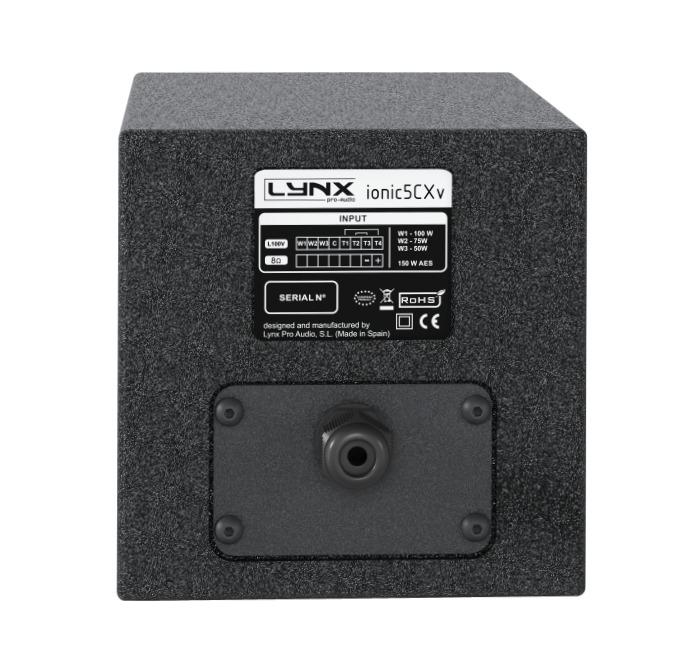

Voltage Versatility: Designed for 70V/100V line installations, featuring an integrated transformer with multiple power tap selections.
Acoustic Quality: 111 dB Max SPL (117 dB peak) with a frequency range from 85 Hz to 20 KHz.
Conical Coverage: Provides a 70º conical coverage pattern, ensuring uniform and balanced sound response across the axis.
Premium Construction: Built from 12 mm premium birch plywood finished in high-resistance textured paint.

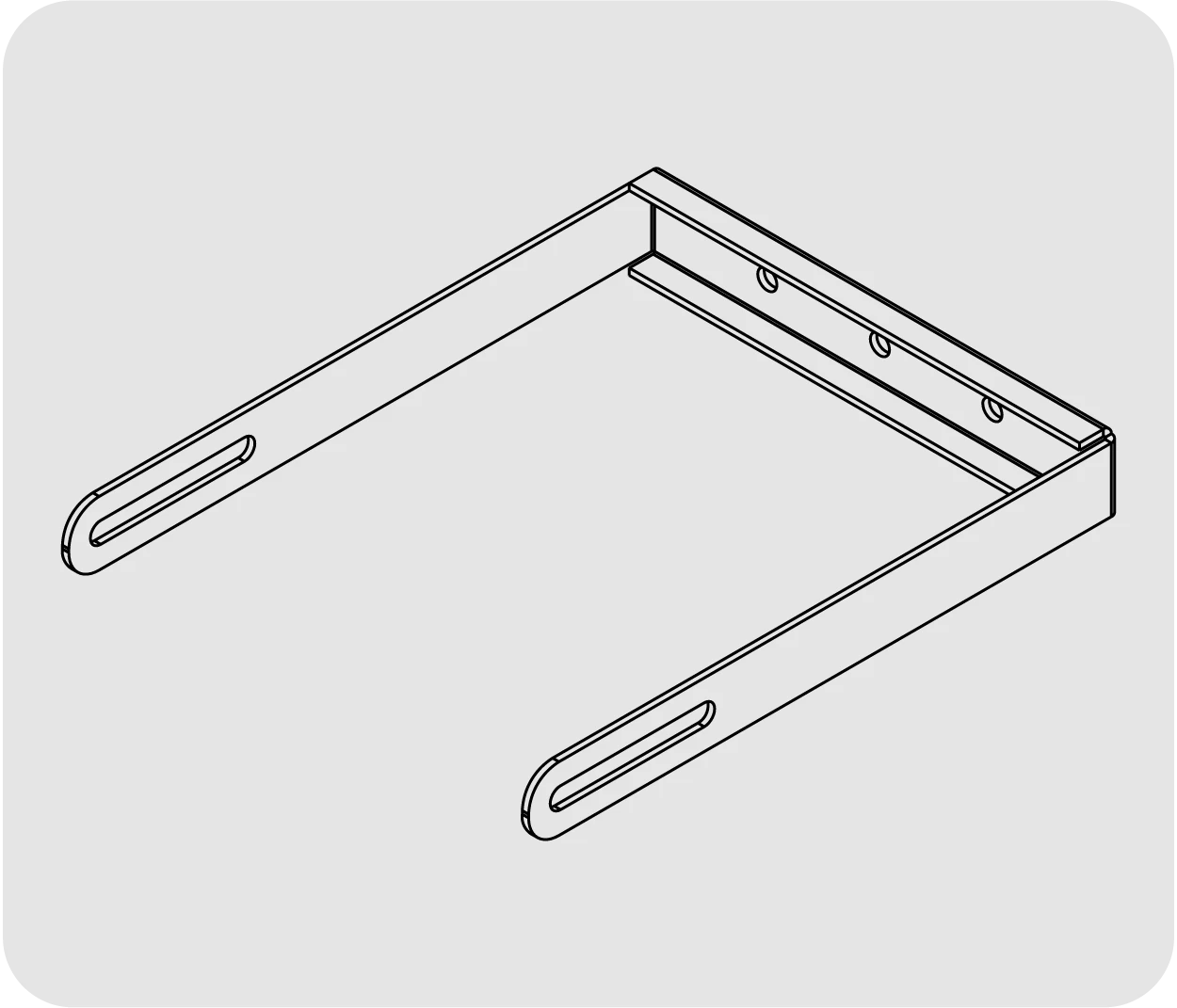

Flexible Installation: Includes a standard “U” wall bracket, ideal for commercial audio applications in hotels, offices, and public spaces.
