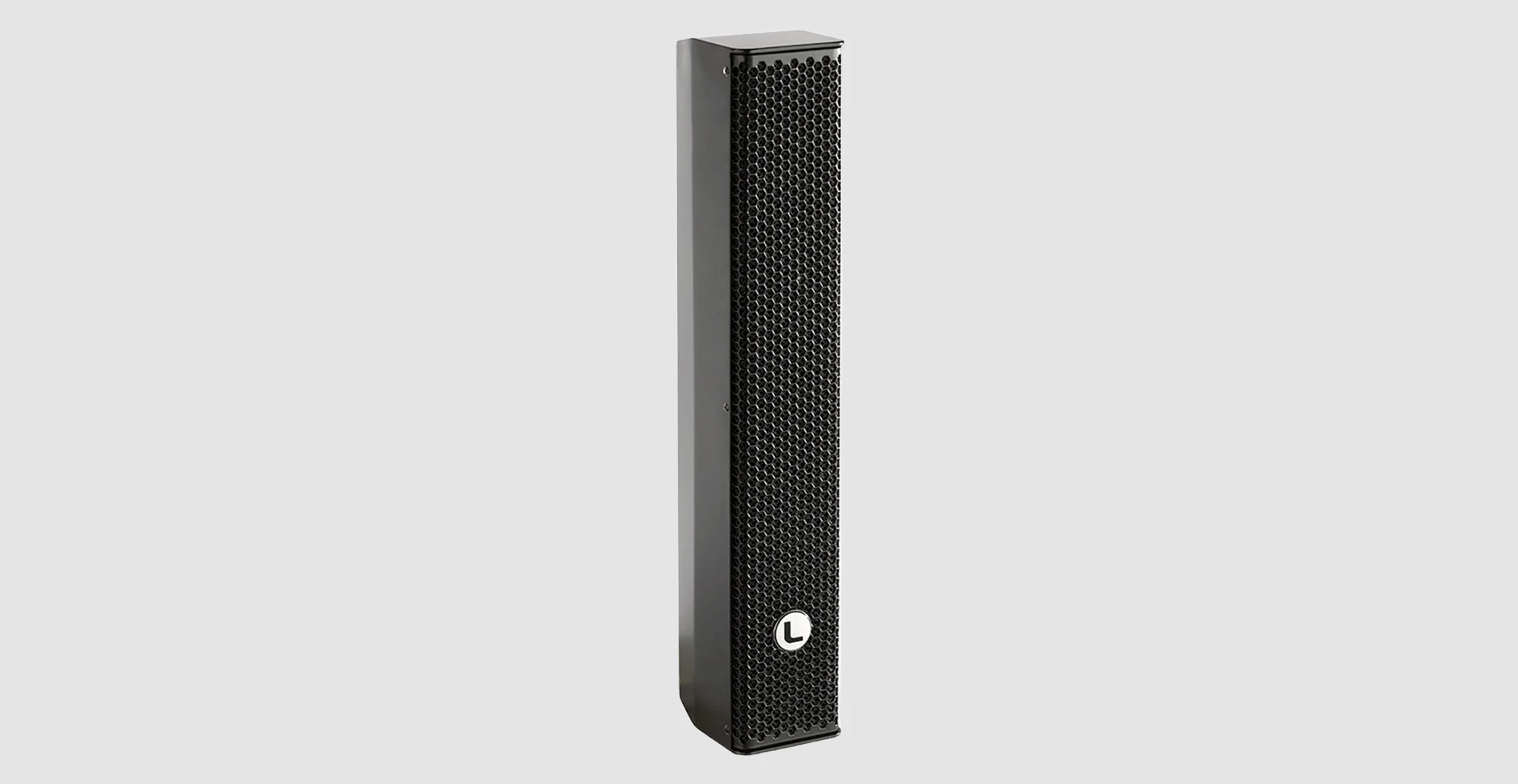

Ionic 50/OD

Smart & slim column speaker

Ultra-compact, passive column speaker.
Consists of 6 x 3” (0.75” voice coil) neodymium transducers. 15º +/- 5º vertical coverage. 119dB SPL.

The Ionic-50/OD is ideal for outdoor installations thanks to its special treatment.

The Ionic-50/OD is a passive column speaker part of the Ionic series. The Ionic cabinets are compact, modular and powerful and the complete serie include two sub units and two column models. The Ionic-50/OD uses 6 x 3” (0.75” voice coil) neodymium transducers offering a coverage of 15º +/-5º V x 100º H and 119dB SPL.

Weight has been left as low as possible providing easy set ups in fixed installation as well as easy transport for portable applications.

The Ionic-50/OD is the ideal column speaker for outdoor installations. The cabinets receive the following treatment so that they can be installed in outside locations: micro perforated aluminium grill with special polyester protection against water, tropicalized speaker treatment with special latex covering and double cabinet sealing.

The Ionic-50/OD is powered from the subwoofer units which include a Digital Signal Processor offering different presets to cover a wide range of sound applications.

Although this cabinet can be used without a processor, the best performance is achieved when using our presets, optimised for LUKA processors and GTX amplifiers. Please note that using the cabinet without our recommended processors or amplifiers may affect the product warranty.

Perfectly suited for:

PA system
Clubs & Theatres
Houses of Worship
Solo artists, band, DJ
Public buildings
Commercial complex

Column Performance: High-performance passive column system delivering 225W AES (450W Program / 900W Peak).
Transducer Configuration: Features eight 3″ neodymium transducers (0.75″ voice coil), optimized for clear vocal and instrumental reproduction.
Acoustic Quality: 118 dB Max SPL (124 dB peak) with a frequency range from 120 Hz to 20 KHz.
Controlled Coverage: Provides a 100º horizontal coverage and a 15º vertical coverage, ideal for reducing reverberation in complex architectural spaces.
Outdoor Protection: Outdoor (OD) version designed to withstand adverse weather conditions, featuring a stainless steel grille and treated components.
Construction and Finish: Built from 15 mm marine birch plywood finished in high-resistance polyurea coating and weather-specific hardware.

Components

6 x 3” speaker with 0.75” voice coil

Frequency Range

150 Hz – 20 KHz (-10dB)

Frequency Response

180 Hz – 20 KHz (± 3dB)

Sensitivity

97 dB (1W@1m)

Max SPL

119 dB – 125 dB Peak

Coverage

15º ± 5º V x 100º H

Power

150 W (300 W program, 600 W peak)

Nominal Impedance

32 Ω

Connectors

2 x Neutrik Speakon NL4MP

Finish

Epoxy paint / bespoke pattern

Material

1.5 mm stainless steel

Dimensions

502 x 89 x 117 mm (H x W x D)

Weight

4.4 Kg (9.7 lbs)

More features

Hardware for Ionic 50/OD

Enclosure

The column enclosure is constructed from 1.5mm stainless steel plate and finished with high resistant epoxy paint. Double cabinet sealing.

Internal design

The steel structure of the column is welded and perfectly sealed with a polymer coating forming an air-tight housing. All parts are assembled on metal inserts with metric screws. Tropicalized speaker treatment with special latex covering.

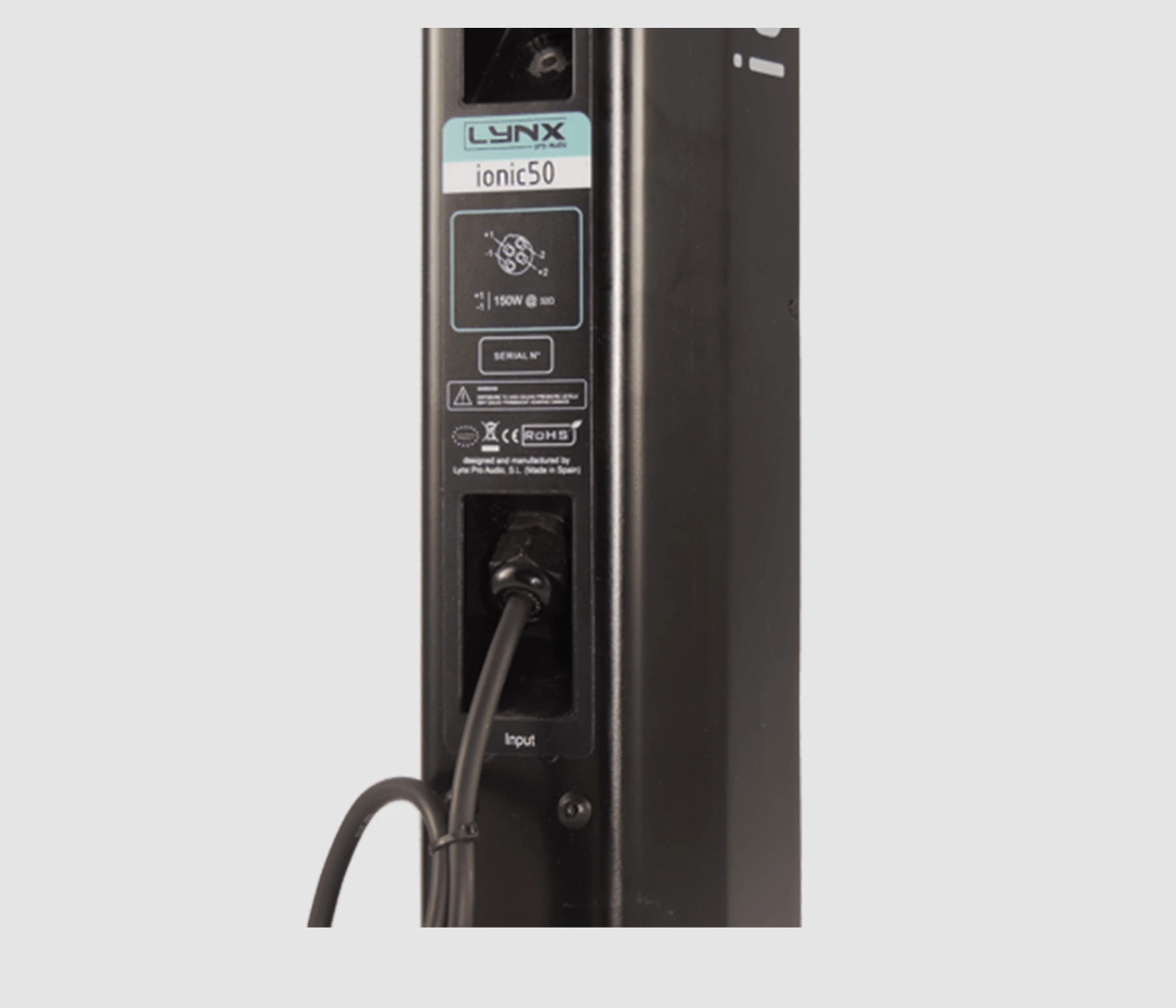

Rear panel

A compact rear panel contains the input and link connectors.

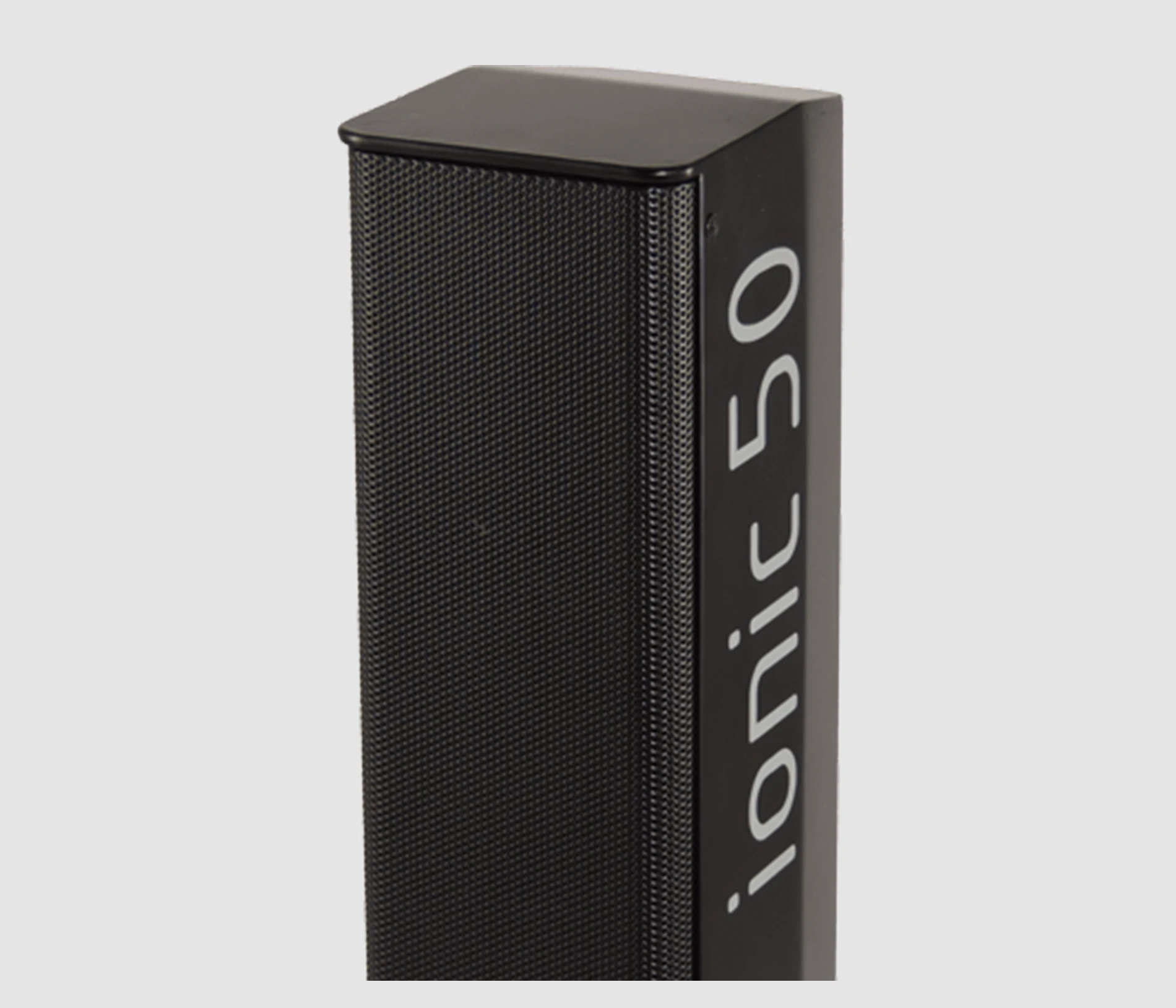

Grill

Micro perforated aluminium grill with special polyester protection against water.

Rigging

Integrated reinforcement plates are located inside the column so different installation accessories can be mounted using the external installation kit fixing points.

Accesories for Ionic 50/OD

SV-POLE

35mm inclinable Pole adaptor

SV-23

Piece to connect columns to wall or truss

SV-22

Piece to connect 2 columns together – straight

SV-I2S

Sub adaptor for satellite

SV-2I

Column cabinets connection

WB-I20/2

Wall bracket for column installation – inclinable

FC-IONIC

Flight case for 4 ionic-50/OD plus accessories

DSP configuration

DSP panel configuration

Ral colours & water-vinyl customization

Available in RAL colours by request.

In addition, more customization options for the Ionic 100 and Ionic 50 cabinets are available. These are some patterns and designs in water-vinyl:

100V Line Transformer

The Ionic-LT is the ideal accessory to transform Ionics series to 100 V line. Using the same enclosure shape, finished in stainless steel, it’s a discreet and easy-to-use accessory.

Usable with Ionic-50/OD and Ionic-100/OD.
