Ionic 18S

Omnidirectional subwoofer

Ultra-compact, self powered (class D switch mode power supply with PFC), omni-directional subwoofer cabinet.

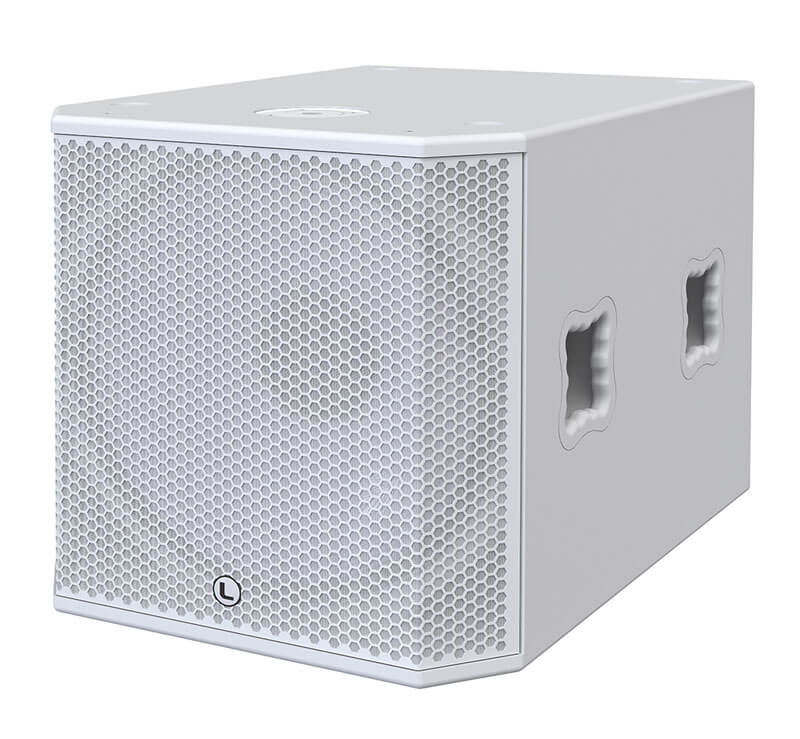

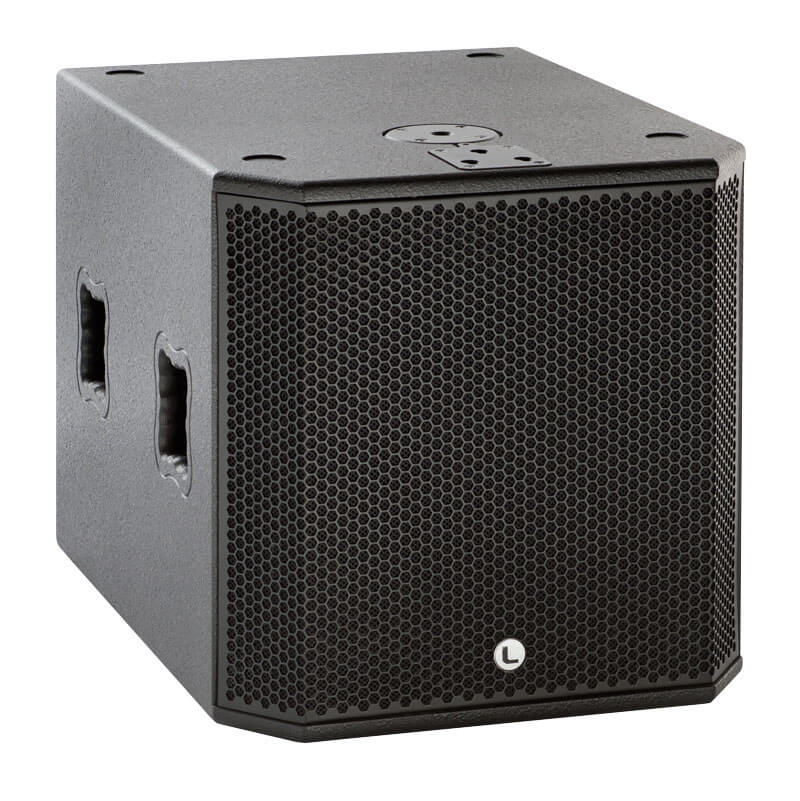

The Ionic-18S is a powered subwoofer enclosure part of the ionic series. The ionic cabinets are compact, modular and powerful and the complete series includes two sub units and four column models.

The Ionic-18S uses 1 x 18” (3” voice coil) neodymium transducers offering an ultra compact subwoofer enclosure with 132dB SPL. The power module (Class D with switching power supply) includes a Digital Signal Processor which offers different presets to cover a wide range of sound applications complementing the column speakers.

Ionic-18S provides quick and easy set ups for both fixed installations and portable applications.

Perfectly suited for:

PA system
Clubs & Theatres
Houses of Worship
Solo artists, band, DJ
Public buildings
Commercial complex

Low-Frequency Performance: Active direct radiation subwoofer system delivering 1400W (Class D with PFC), engineered to complement the Ionic column series.
High-Excursion Component: Features an 18″ neodymium transducer with a 4″ voice coil for deep and extended bass response.
Acoustic Capacity: 128 dB Max SPL (134 dB peak) with a frequency range from 35 Hz to 250 Hz.
Advanced Digital Processing: Integrated 24-bit / 96 KHz DSP with FIR filters and full control via OCS software for precise equalization.
Rugged Construction: Built from 18 mm premium birch plywood finished in high-resistance polyurea coating and a 1.5 mm steel grille.
Connectivity and Control: Includes XLR connectors for input and link, a USB port for remote management of system parameters, and Neutrik PowerCON power connectors.

Components

1 x 18″ speaker with 3″ voice coil

Frequency Range

38 Hz – 250 Hz (-10dB)

Frequency Response

42 Hz – 250 Hz (± 3dB)

Max SPL

132 dB

Coverage

Omnidirectional

Power

2400W Class D with switching power supply & PFC

LF Amplifier

1 x 1400 W

Speaker Output Amplifier

2 x 600 W @ 4 Ω

Processing

Internal Lynx Processor DSPB-FL
96 KHz / 64 bit double-precision, DSP with FIR filter linear phase

Control

User control interface with 2.8″ IPS screen

Control Connections

Ethernet (OCS) / USB (DSP programming)

Input

Analog / AES3 (optional)

AC Power

85 – 270V. 50/60 Hz with PFC

AC Connections

16A Neutrik powerCon TRUE1 TOP with looping output

Finish

Polyurea coating

Material

15 mm premium birch plywood

Dimensions

513 x 505 x 704 mm (H x W x D)

Weight

37 kg (81.5 lbs)

More features

Hardware for Ionic 18S

Enclosure

The IONIC-18S cabinet is constructed from 13-ply premium birch plywood (15mm thickness) and finished with polyurea coating.

Internal design

The internal structure of the IONIC-18S is heavily braced for greater longevity and all parts are assembled on metal inserts with metric screws. The amplification modules & DSP are housed in a separate chamber to the drivers.

Rear panel

The powder coated steel rear panel contains all connections and houses the IONIC-18S amplification modules and DSP, is easily accessible and housed separately from the drivers avoiding excessive heat & vibration, thus delivering greater efficiency and reliability.

Grill

The ionic-18S has a heavy duty, powder coated front grille with a special acoustic rear fabric to protect the transducers against dust and dirt.

Handles

One ergonomic, die cast handle with firm internal grips is located on each side of the IONIC-18S enclosure to facilitate transport, positioning and loading of the cabinets.

Accesories for Ionic 18S

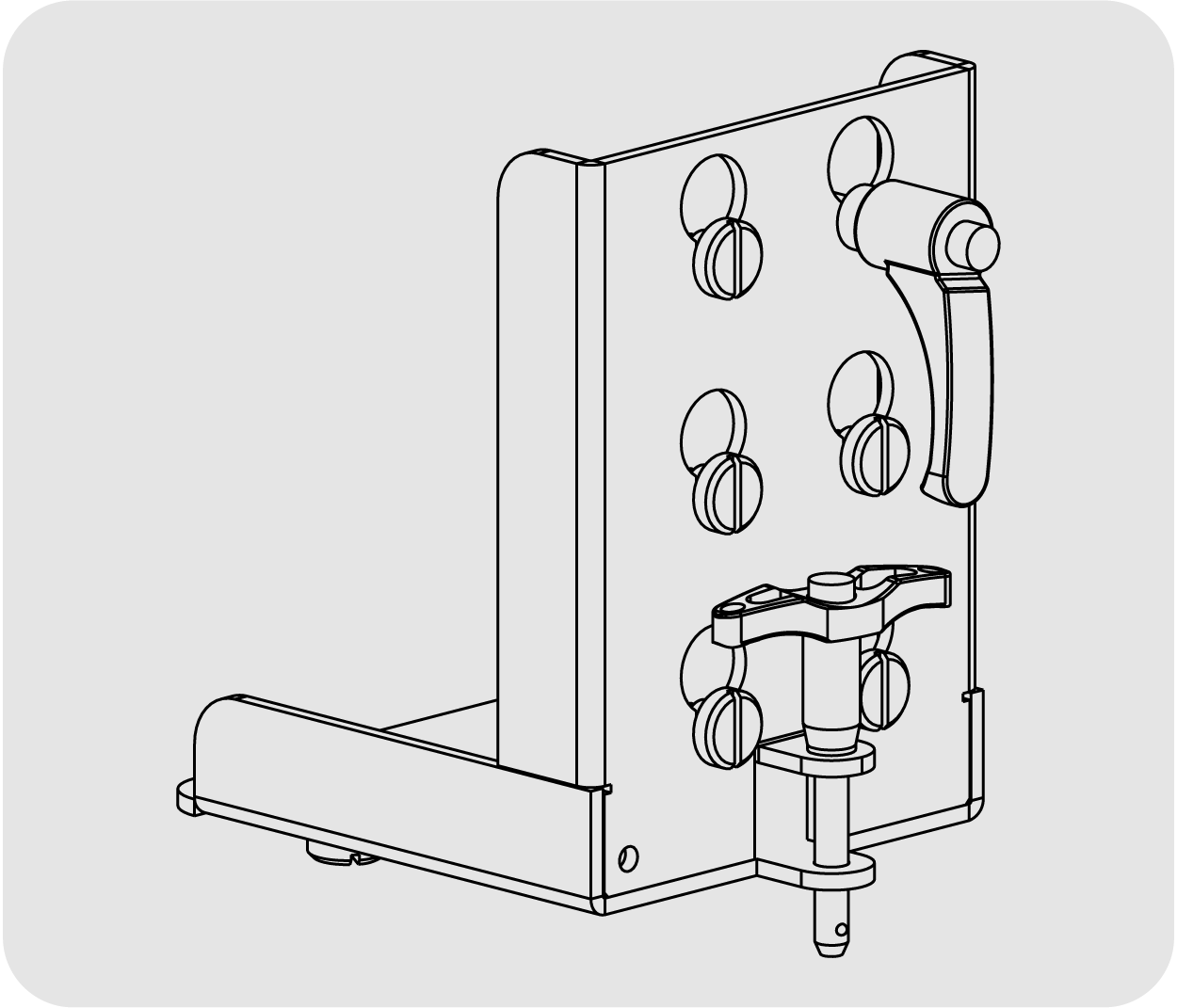

SV-I2S

Sub adaptor for satellite

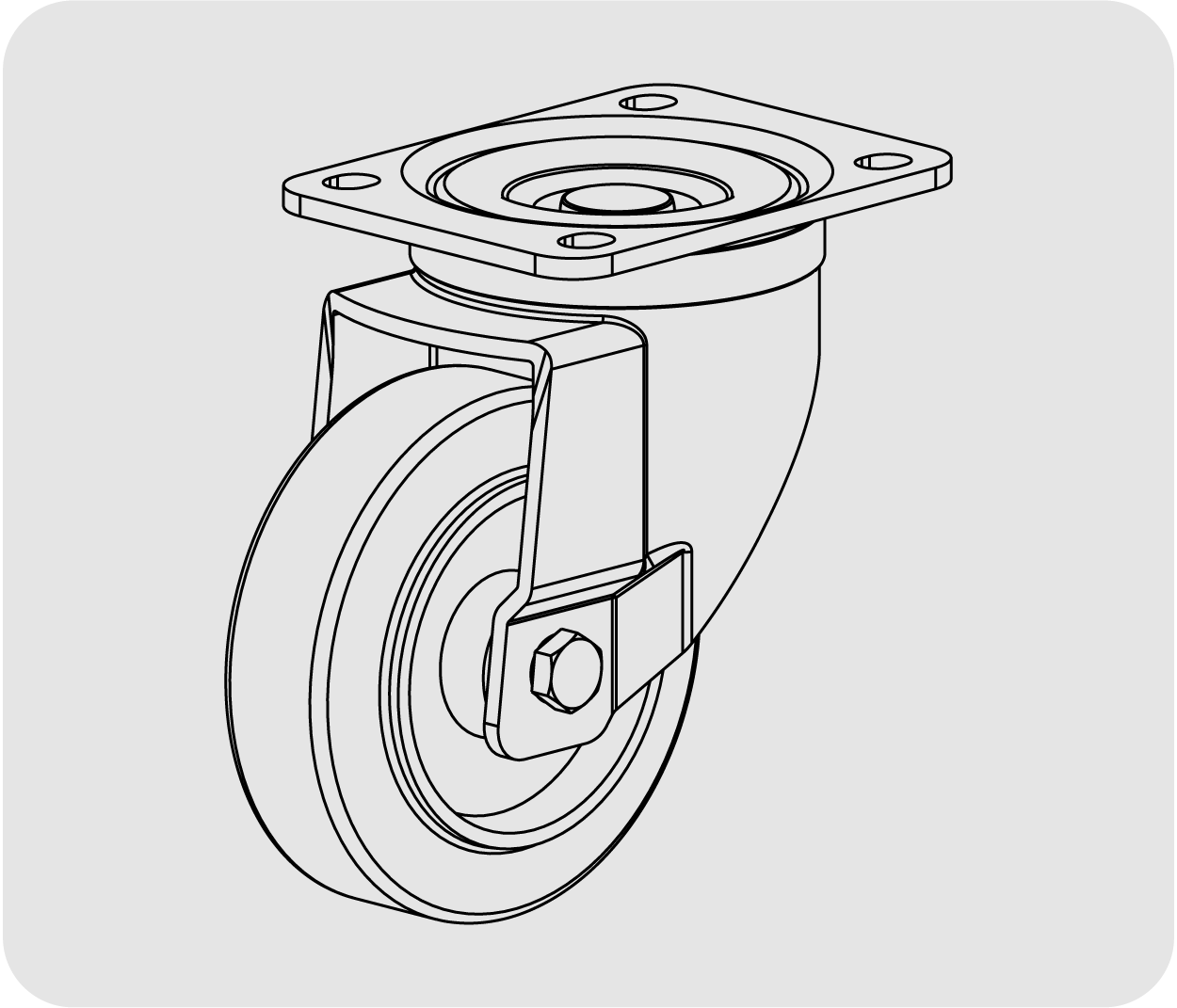

GR-18WKIT

Wheel kit

FD-IONIC18S

Nylon Protection Cover for ionic-18S

VSM-V2

M20 connector plate for M20 pole support TU-C02

TU-C02

M20 pole support for combination between sub and satellite cabinets

DSP configuration

DSP panel configuration

On the back panel of the cabinet you will find the digital control area. From the compact joystick located below the screen you are able to configure the basic adjustment functions of the internal DSP.

Just move the joystick to select the icons on the left of the screen. You can enter into the following functions: Home, settings, folder, configuration and information. Please note that you must apply the desired configuration in each one cabinet and requires electrical power to work.

If changes are not made the display will automatically dim to avoid unnecessary light in situations where light is not wanted. To re-activate the light simply press the joystick.

The following screens are an example and may vary slightly for each cabinet.

HOME

On the main screen you can see the cabinet’s input and output.

• Input: You can see a vumeter with the input level and a clip signal.

• Output: You have a vumeter with the output level (0 dBu is the amp’s maximum level) You can check the compressor and control the dynamic activity.

SETTINGS

This panel allows you to change the gain, polarity, mute and the delay for the inputs.

You also have the possibility of putting a high pass, changing the type of filter, frequency and order.

FOLDER

The folder screen shows you the name of the preset and its description.

Using the joystick you can change the preset.

CONFIGURATION

This screen is to configurate Ethernet. You can choose automatic or manual. You can also configure the screen saver.

And here you have the input selection. You can choose between analog or AES3 for channel 1 or channel 2.

INFORMACIÓN

The last screen shows you some general information regarding the cabinet’s components.

Here you can see the cabinet model, its serial number, DSP firmware and hardware versions, amp module model with hardware version, as well as the accelerometer status.
