BS-8

Install essential

Compact two-way cabinet. Consists of an 8” (2” voice coil) LF transducer and a 1” HF driver mounted on a 90ºx 60º rotatable horn.

The BS-8 is a compact, two-way passive cabinet. Consists of a 8” (2” voice coil) LF transducer and a 1” HF driver mounted on a 90º x 60º rotatable horn offering a wide range of applications from fixed installations, frontfill and as a stage monitor.

The 8” driver offers high power handling and high sensitivity with low harmonic distortion and linear response. The cone is waterproof and has been treated on both sides. The 1” HF driver delivers high sensitivity with a PETP diaphragm. The cabinet can be complemented by the BS-112 or BS-118 subwoofers and offers tremendous sound and clarity over short/mid distances.

Although this cabinet can be used without a processor, the best performance is achieved when using our presets, optimised for LUKA processors and GTX amplifiers. Please note that using the cabinet without our recommended processors or amplifiers may affect the product warranty.

Constructed from premium birch plywood and coated in high resistant polyurea paint. The enclosure also offers a screw free grille together with a number of dedicated accessories.

Perfectly suited for:

Club & Bar installations
Sound reinforcement
Theatres
Houses of worship
Multi media spaces
Public address
Stage monitor

Compact Performance: Two-way passive system delivering 200W RMS (400W Program) with an excellent SPL-to-size ratio.
Quality Components: Features an 8″ transducer (1.5″ voice coil) and a 1″ compression driver with a PETP diaphragm.
Acoustic Quality: 113 dB Max SPL (119 dB peak) with a frequency range from 60 Hz to 20 KHz.
Controlled Coverage: Rotatable GFK horn providing a 90º x 60º coverage pattern, allowing for both vertical and horizontal placement.
Durable Construction: Built from 12 mm premium birch plywood finished in high-resistance textured paint.
Installation Versatility: Includes a standard “U” wall bracket and a 35 mm pole mount, ideal for sound reinforcement in bars, clubs, and multimedia rooms.

Components

LF: 8” speaker, 2” ( 50 mm) copper wire voice coil, Waterproof cone with treatment on both sides
HF: 1” exit throat, (25 mm) voice coil, PETP dome compression driver

Frequency Range

70 Hz – 18 KHz (-10dB)

Sensitivity

93 dB

Max SPL / Peak*

118 dB / 124 dB

Rated Power

300 W AES (600 W program, 1200 peak)

Coverage

90º x 60º rotatable

Nominal Impedance

8 Ω

Connectors

2 X NEUTRIK Speakon NL4 Pin connections: +1 / -1 input +1 / -1 link

Finish

Polyurea coating

Material

15 mm Premium birch plywood

Dimensions

456 x 255 x 259 mm (H x W x D)

Weight

12 Kg (26.4 lbs)

Fittings

5 x M8, single pole-mount, ergonomic handle on the back position

Enclosure Type

Multi angle enclosure

* Calculated maximum SPL based on rated peak power and measured sensitivity

More features

Hardware for BS-8

Enclosure

This cabinet is constructed from premium birch plywood (15mm thickness) and finished with polyurea coating.

Internal design

The internal structure of the cabinet is heavily braced for greater longevity and all parts are assembled on metal inserts with metric screws.

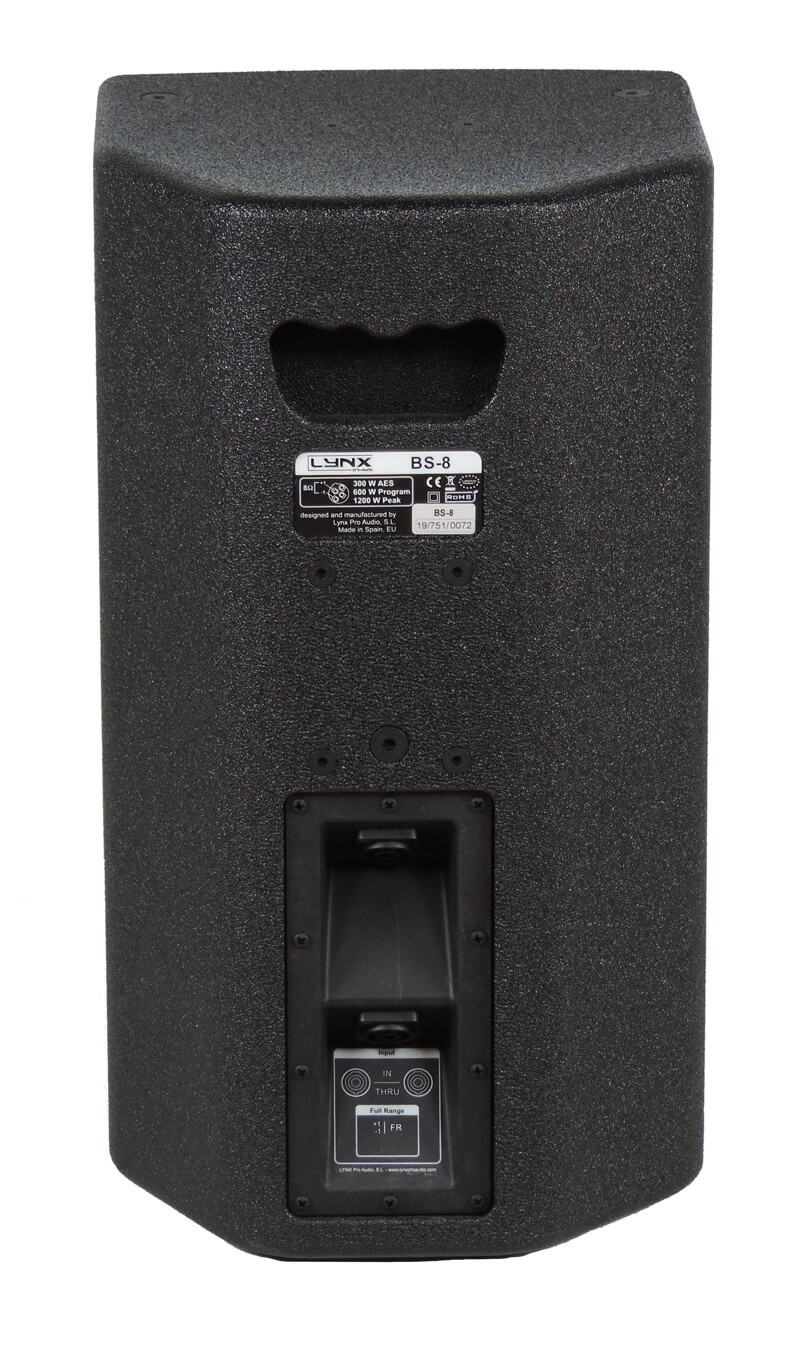

Rear panel

Discreet, integrated rear connection speakon panel.

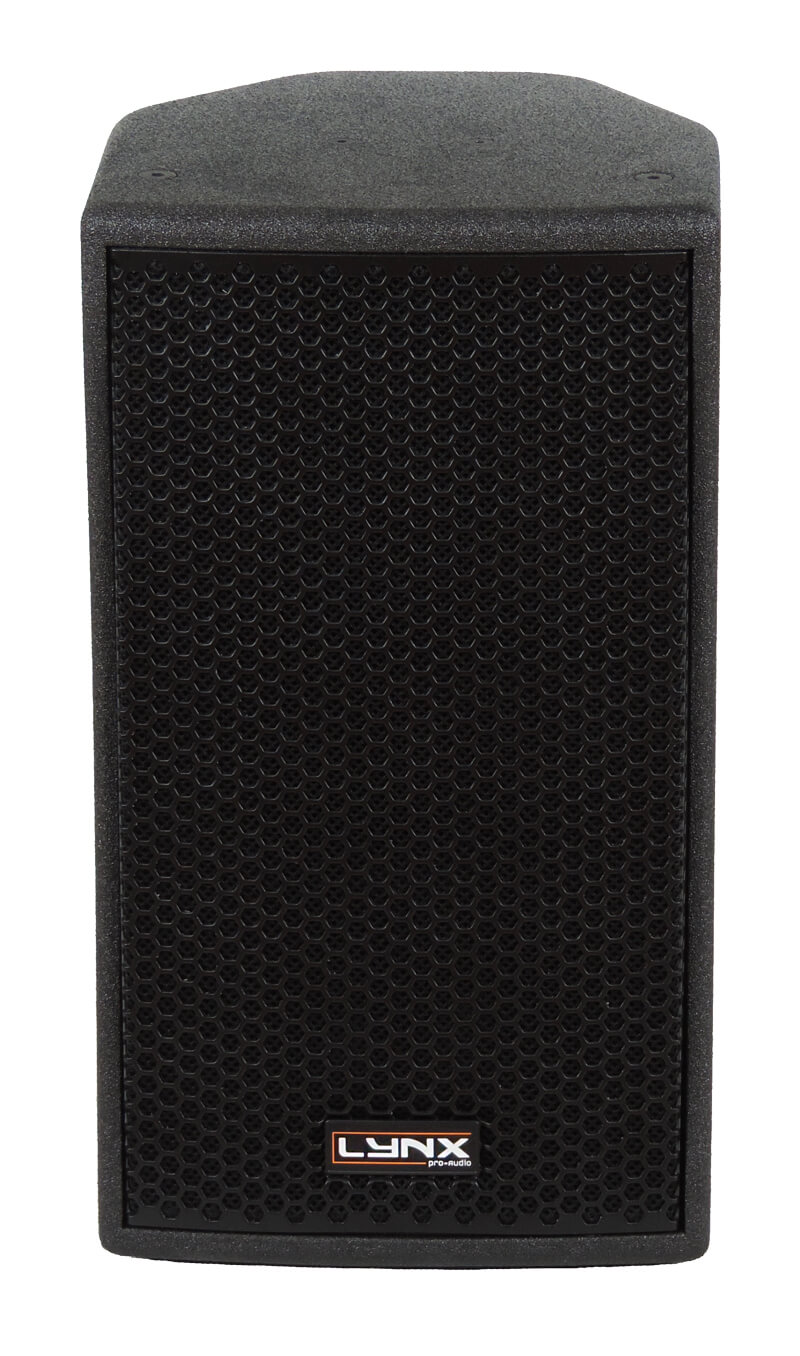

Grill

The cabinet has a heavy duty, powder coated front grille with a special acoustic rear fabric to protect the transducers against dust and dirt.

Handles

An ergonomic handle is located on each side of the cabinet.

Single pole mount

M20 pole support for tripod or satellite setup with subwoofer.

Accesories for BS-8

AGR-8

M8 Eyebolt

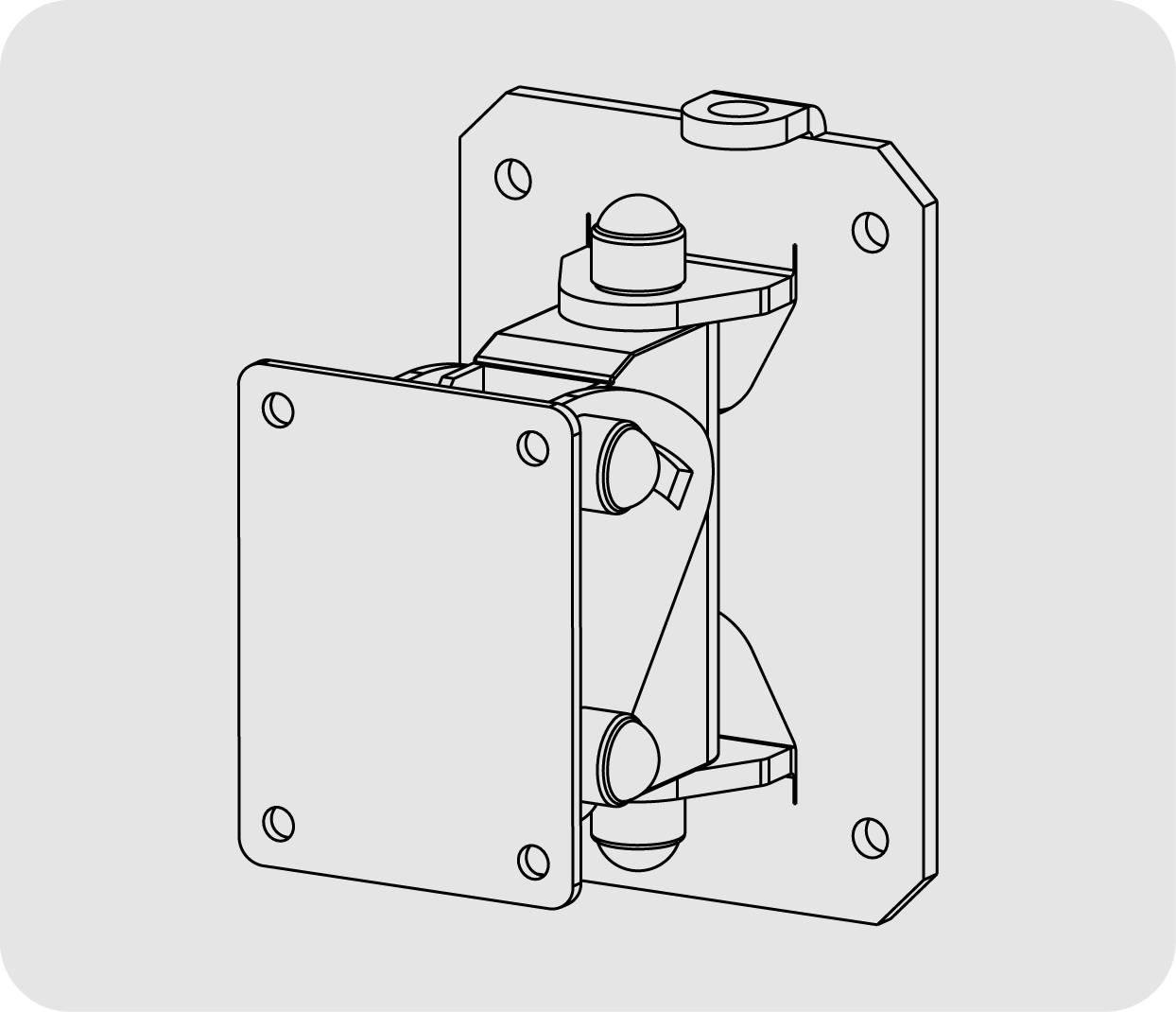

WB-20/2

Wall bracket for BS-8

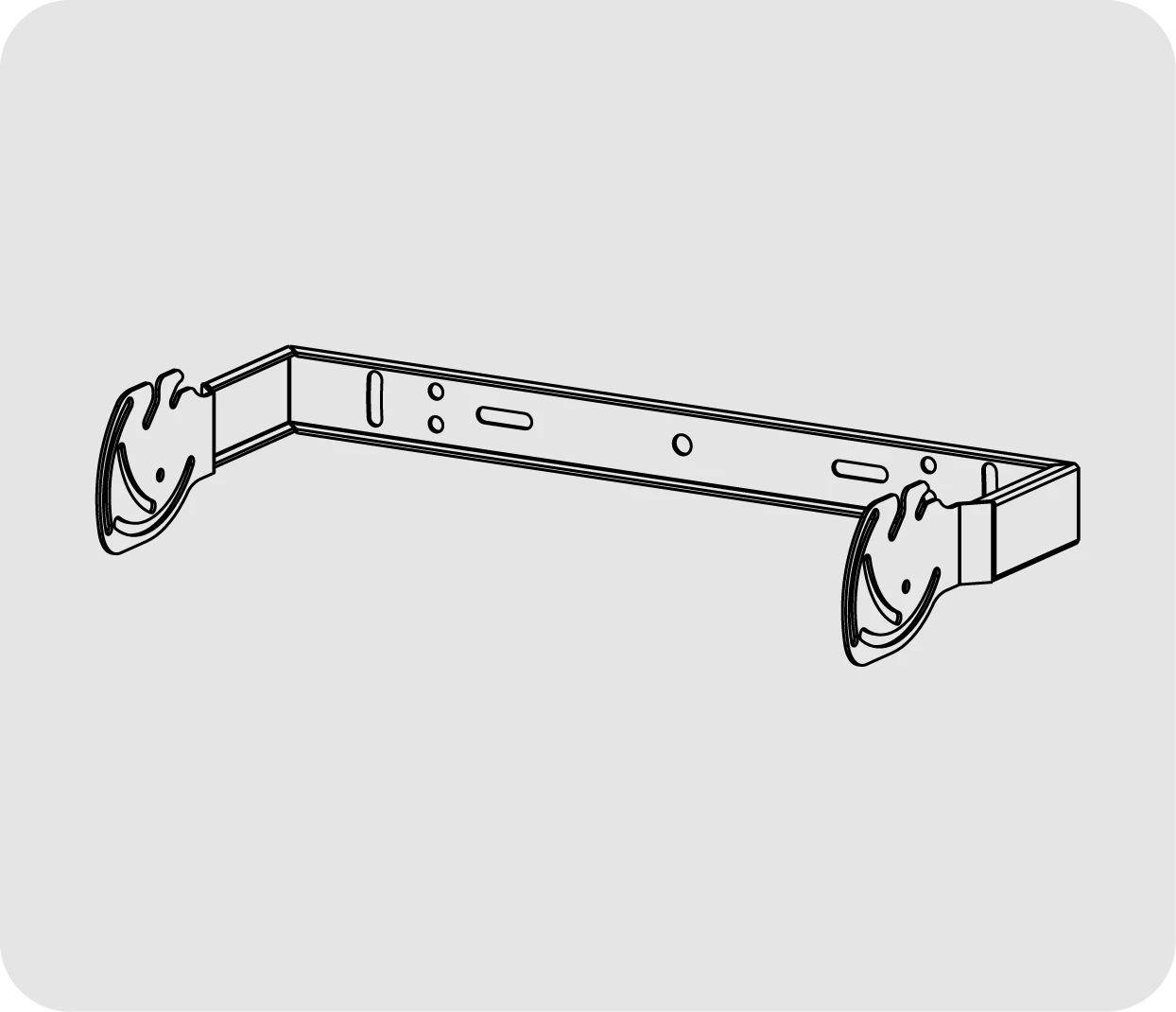

UBR-BS8

U bracket for BS-8

Components

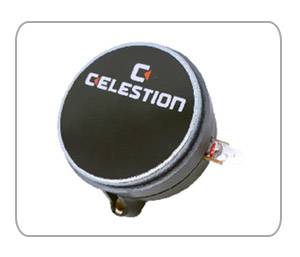

The BS-8 features one 8” low/mid transducer with FEA optimized ceramic magnetic circuit, low harmonic distortion and linear response, waterproof cone (treated on both sides) and a 1” high frequency driver with single piece PRTP diaphragm and surround mounted on a rotatable 90º x 60º horn enabling the cabinet to be used horizontally or vertically.
