BS-10

Install essential

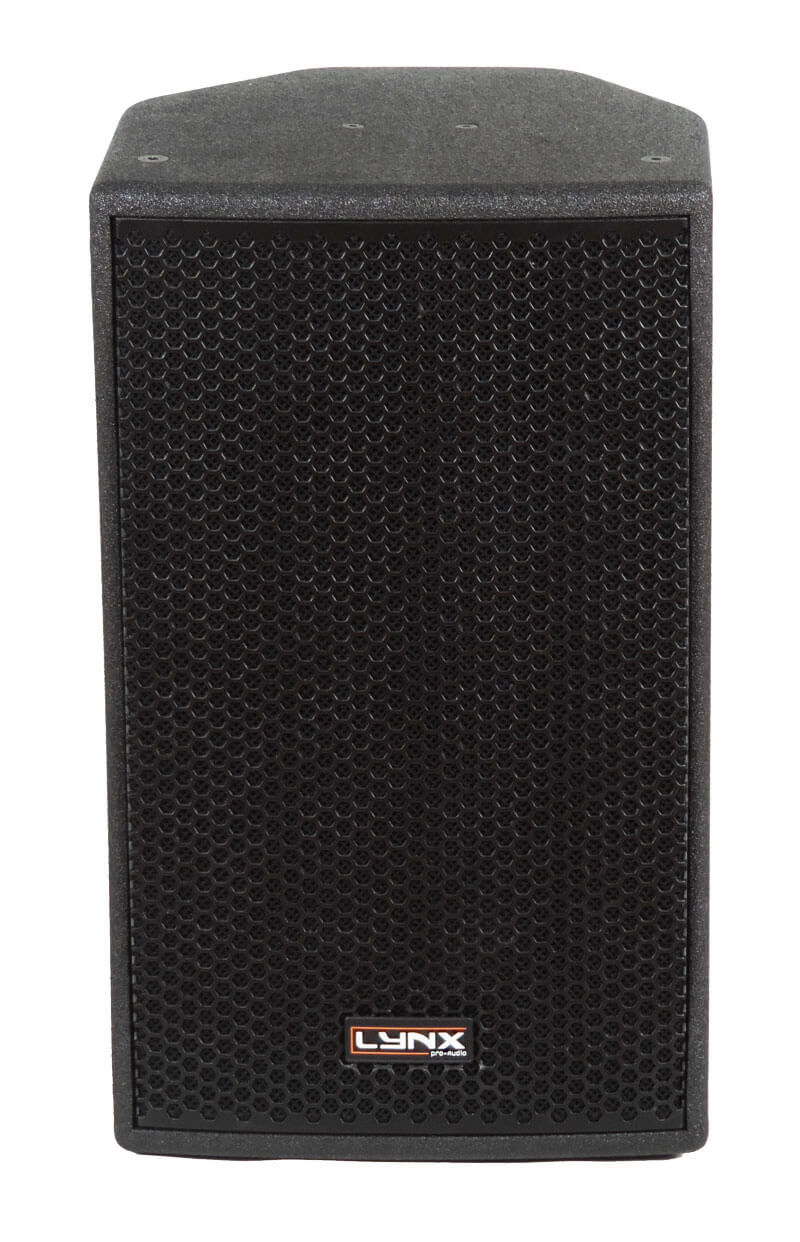

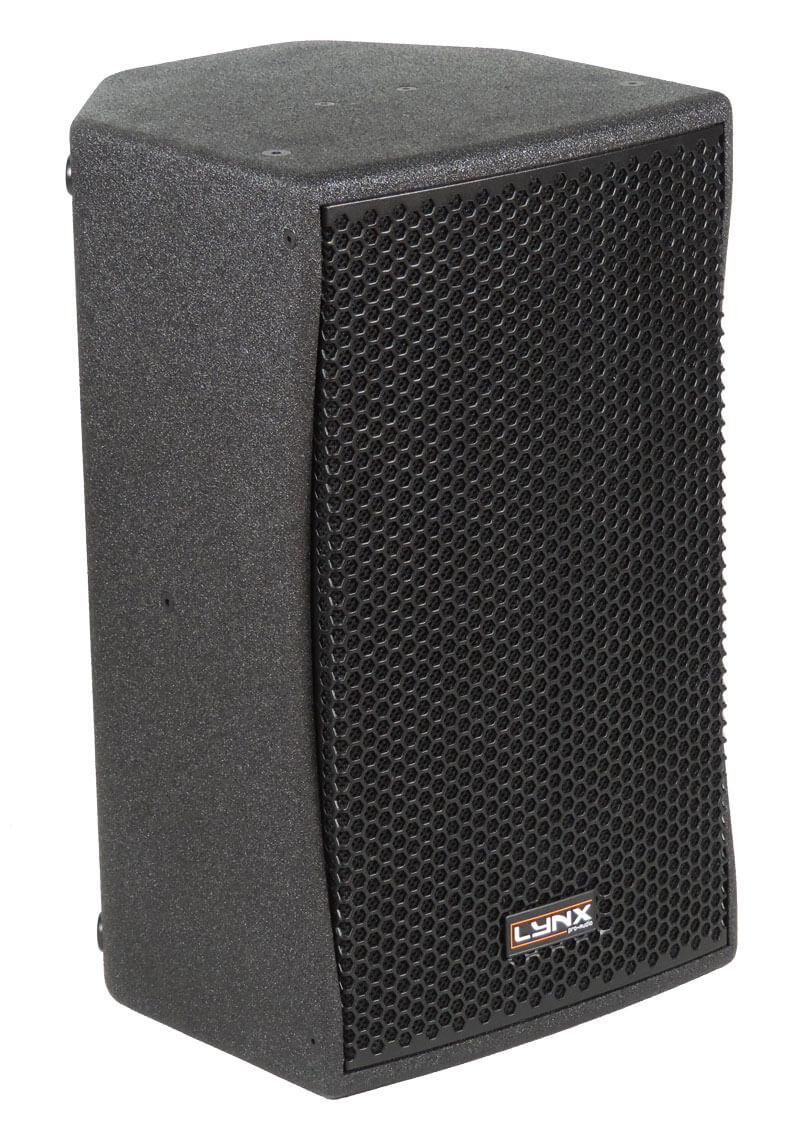

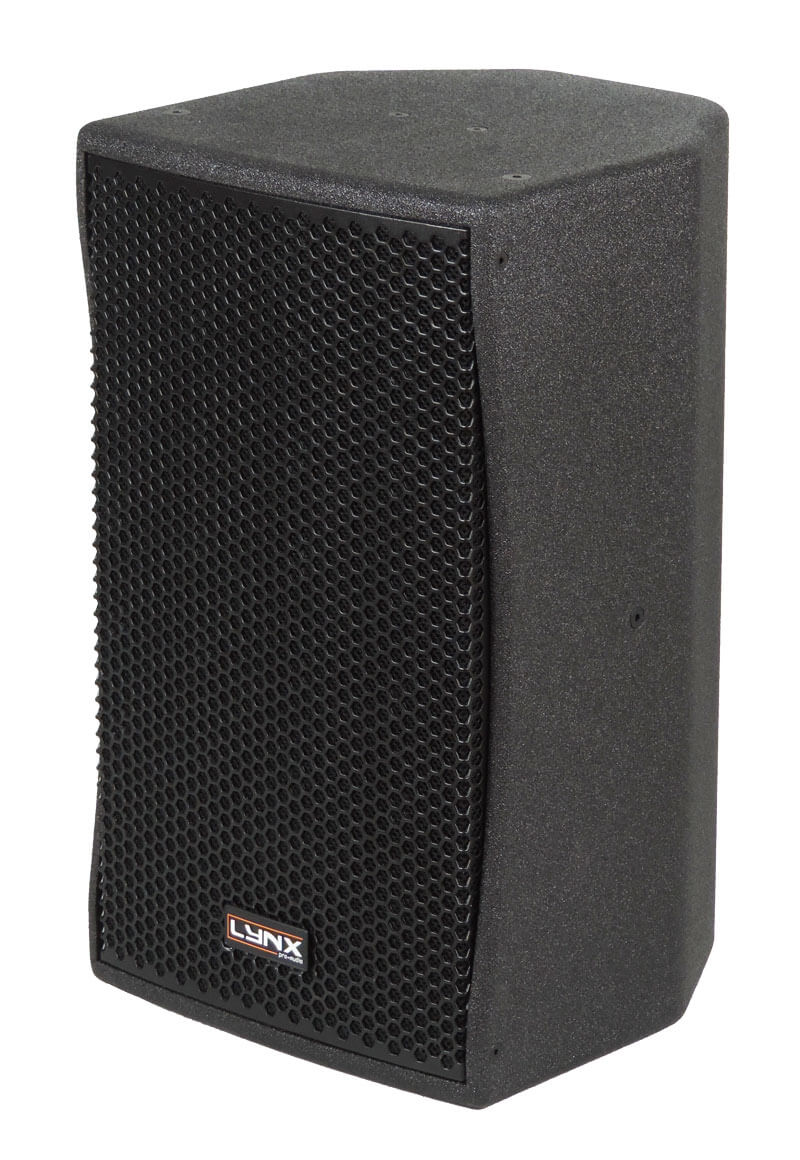

Compact, two-way passive cabinet. Consists of a 10” (2” voice coil) LF transducer and a 1” HF driver mounted on a 90º x 60º rotatable horn.

The BS-10 is a compact, two-way passive cabinet. Consists of a 10” (2” voice coil) LF transducer and a 1” HF driver mounted on a 90º x 60º rotatable horn offering a wide range of applications from fixed installations, frontfill and as a stage monitor.

The 10” driver offers high power handling and high sensitivity with low harmonic distortion and linear response. The cone is waterproof and has been treated on both sides. The 1” HF driver delivers high sensitivity, with a PETP diaphragm.

The cabinet can be complemented by the BS-112 or BS-118 subwoofers and offers tremendous sound and clarity over short/mid distances. Constructed from premium birch plywood and coated in high resistant polyurea paint. The enclosure also offers a screw free grille together with a number of dedicated accessories.

Although this cabinet can be used without a processor, the best performance is achieved when using our presets, optimised for LUKA processors and GTX amplifiers. Please note that using the cabinet without our recommended processors or amplifiers may affect the product warranty.

Perfectly suited for:

Club & bar installations
Sound reinforcement
Theatres
Houses of worship
Multi media spaces
Public address
Stage monitor

Balanced Performance: Two-way passive system delivering 300W RMS (600W Program), engineered for precise and efficient sound reinforcement.
Precision Components: Features a 10″ transducer (2″ voice coil) and a 1″ compression driver with a PETP diaphragm.
Acoustic Quality: 115 dB Max SPL (121 dB peak) with a frequency range from 55 Hz to 20 KHz.
Controlled Coverage: Rotatable GFK horn providing a 90º x 60º coverage pattern, optimizing projection based on enclosure orientation.
Durable Construction: Built from 15 mm premium birch plywood finished in high-resistance textured paint.
Installation Versatility: Includes a standard “U” wall bracket, M8 rigging points, and a 35 mm pole mount for flexible integration in various environments.

Components

LF: 10” speaker, 2” ( 50 mm) copper wire voice coil, Waterproof cone with treatment on both sides
HF: 1” exit throat, (25 mm) voice coil, PETP dome compression driver

Frequency Range

65 Hz – 18 KHz (-10dB)

Sensitivity

94 dB

Max SPL/Peak*

119 dB / 125 dB

Rated Power

300W AES (600W program, 1200W peak)

Coverage

90º x 60º rotatable

Nominal Impedance

8 Ω

Connectors

2 X NEUTRIK Speakon NL4

Finish

Polyurea coating

Material

15 mm premium birch plywood

Dimensions

500 x 300 x 301 mm (H x W x D)

Weight

14 Kg (30.8 lbs)

Fittings

5 x M8, single pole-mount, ergonomic handle on the back position

Enclosure type

Multi angle enclosure

* Calculated maximum SPL based on rated peak power and measured sensitivity

More features

Hardware for BS-10

Enclosure

This cabinet is constructed from premium birch plywood (15mm thickness) and finished with polyurea coating.

Internal design

The internal structure of the cabinet is heavily braced for greater longevity and all parts are assembled on metal inserts with metric screws.

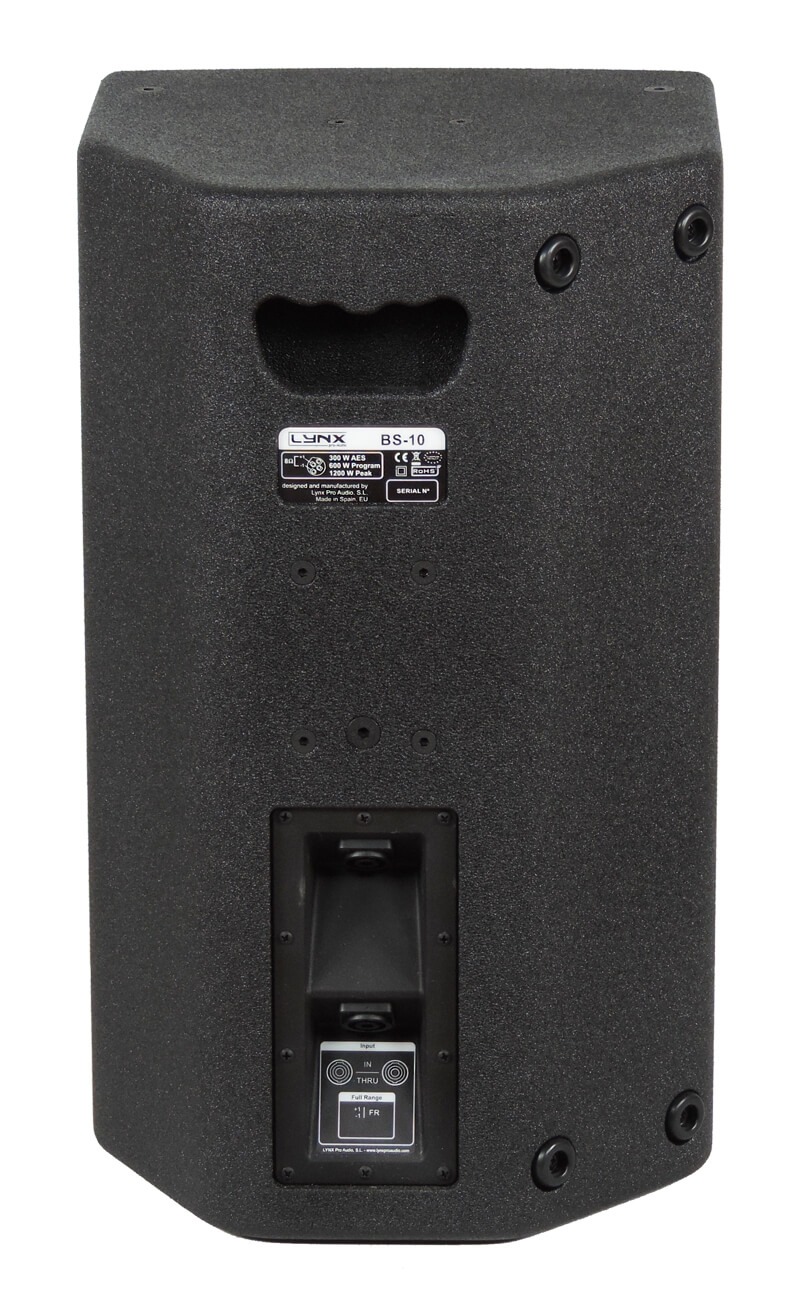

Rear panel

Discreet, integrated rear connection speakon panel.

Grill

The cabinet has a heavy duty, powder coated front grille with a special acoustic rear fabric to protect the transducers against dust and dirt.

Handles

An ergonomic handle is located on each side of the cabinet.

Single pole mount

M20 pole support for tripod or satellite setup with subwoofer.

Accesories for BS-10

AGR-8

M8 Eyebolt

WB-20/2

Wall bracket for BS-10

UBR-BS10

U bracket for BS-10

Components

The BS-10 features one 10” low/mid transducer with FEA optimized ceramic magnetic circuit, low harmonic distortion and linear response, waterproof cone (treated on both sides) and a 1” high frequency driver with single piece PRTP diaphragm and surround mounted on a rotatable 90º x 60º horn enabling the cabinet to be used horizontally or vertically.
