BS-112

Install essential

Compact, 12” (3” voice coil) passive subwoofer cabinet band pass configuration.

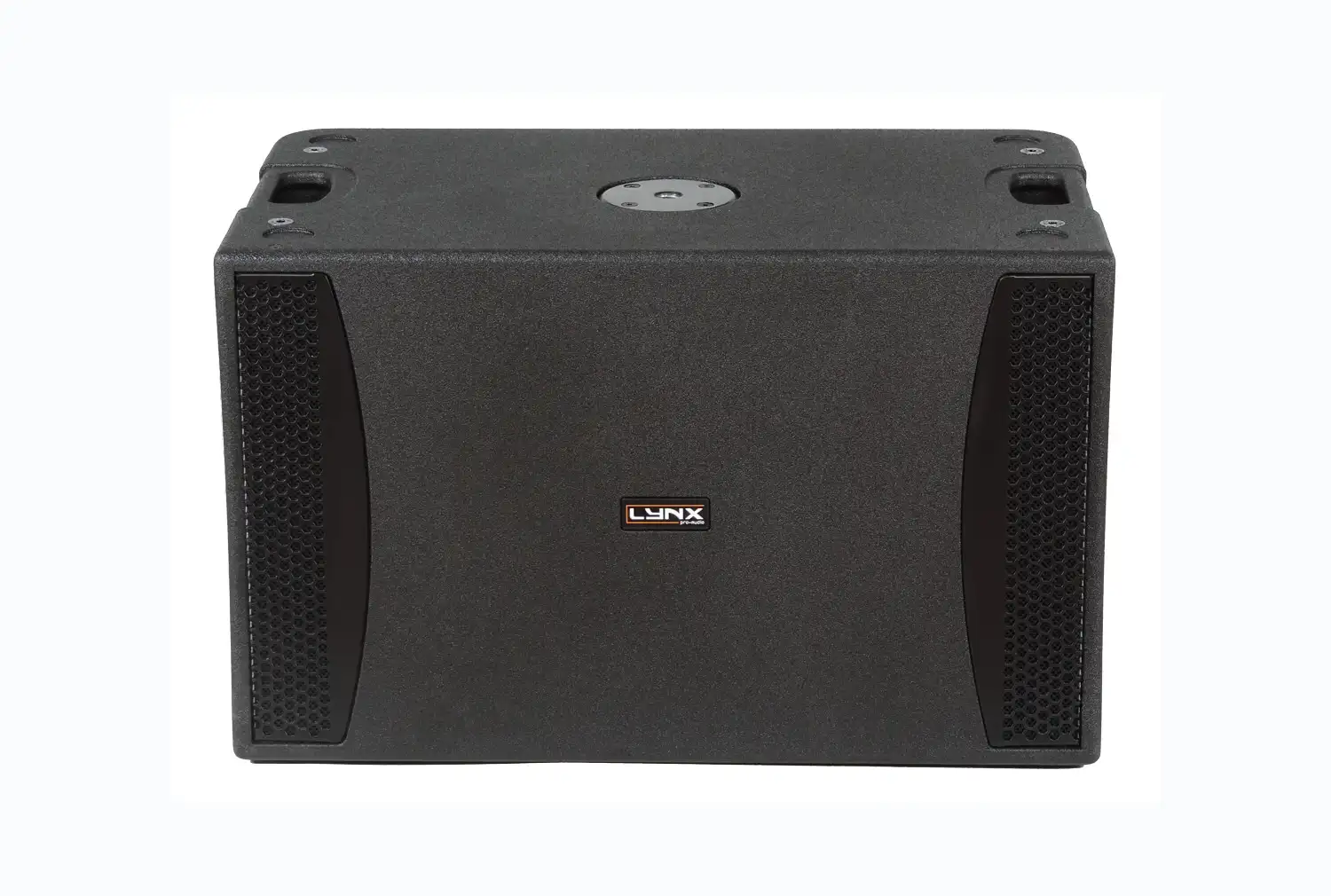

The BS-112 is a compact, band pass passive subwoofer designed to extend low frequency support to the four BS Series full range cabinets.

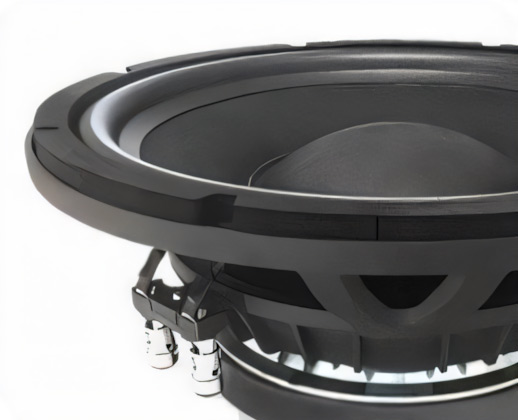

The 12” (3” voice coil) driver offers high power handling and high sensitivity with low distortion and ultra low air noise. The cone is waterproof and rubber suspension has been treated on both sides and has been optimized for direct radiation subwoofer applications.

Constructed from premium birch plywood and coated in high resistant polyurea paint. The enclosure also offers a screw free grille together with pole mount fitting so that it can be used with any of the four full range cabinets.

Although this cabinet can be used without a processor, the best performance is achieved when using our presets, optimised for LUKA processors and GTX amplifiers. Please note that using the cabinet without our recommended processors or amplifiers may affect the product warranty.

Perfectly suited for:

Club & bar installations
Sound reinforcement
Theatres
Houses of worship
Multi media spaces
Public address

Low-Frequency Performance: Passive direct radiation subwoofer system delivering 400W RMS (800W Program).
Precision Component: Features a single 12″ transducer with a 3″ voice coil and optimized linear excursion for precise response.
Acoustic Quality: 122 dB Max SPL (128 dB peak) with a frequency range from 45 Hz to 200 Hz.
Compact Design: Bass-reflex configuration engineered to provide deep bass reproduction within a minimal enclosure size.
Premium Construction: Built from 15 mm premium birch plywood finished in high-resistance textured paint.
Installation Integration: Includes M8 rigging points and a 35 mm pole mount for satellite speakers, ideal for reinforcement in clubs, hotels, and multimedia spaces.
