BS-5

Ultra compact passive cabinet

Ultra-compact, full range, two way passive cabinet for background sound reinforcement.
It consists of a 5” transducer and a 1” high frequency dome tweeter. It offers 60ºconic dispersion, 107 dB SPL and 160W program.

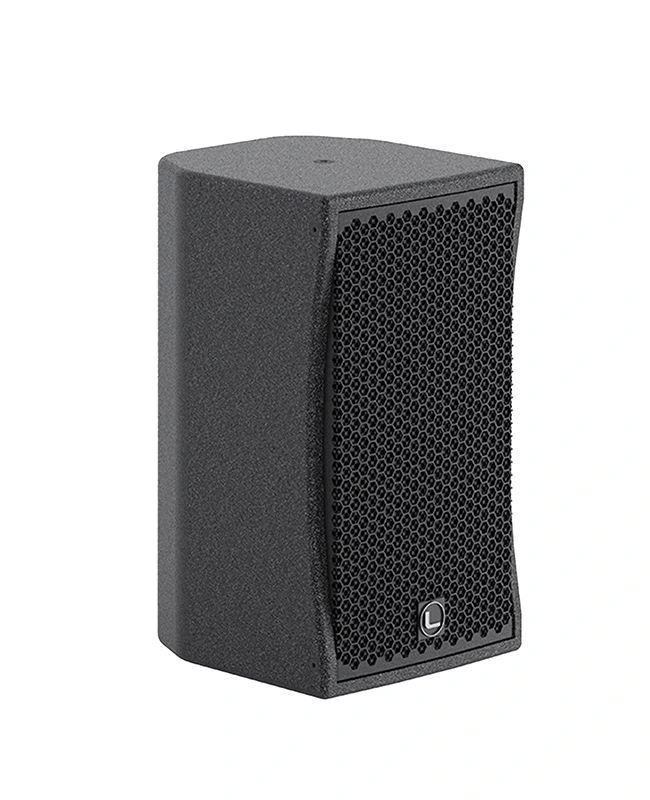

The BS-5 is a two-way versatile, ultracompact, lightweight passive cabinet designed for high-performance in background sound applications. It features a 5” low/mid transducer with rubber surround and a 1” tweeter with an aluminium dome. Constructed from 9/15 mm premium birch plywood and coated with durable polyurea paint, this speaker is built to last. For enhanced low-frequency reinforcement, we recommend pairing the BS-5 with the SUB-08 or BS-112 subwoofers.

Engineered for flexibility, the BS-5 delivers exceptional clarity and detail, making it ideal for small to medium-sized spaces. Its compact form factor and lightweight design ensure easy transport and installation without sacrificing sound quality. The high-efficiency drivers provide clear midrange and precise highs, while the robust enclosure ensures consistent performance even in demanding environments.

When combined with the SUB-08 or BS-112, the BS-5 creates a well-rounded sound system with a fuller low-end, making it suitable for both fixed installations and mobile setups. Whether used in frontfill applications or as part of a larger system, the BS-5 delivers reliable performance in a variety of professional settings.

Although this cabinet can be used without a processor, the best performance is achieved when using our presets, optimised for LUKA processors and GTX amplifiers. Please note that using the cabinet without our recommended processors or amplifiers may affect the product warranty.

Key features:

Ultra-compact light weight.
Background sound reinforcement.
LUKA processor optimised preset.
White, black and RAL colour optional.
Rugged design.

Perfectly suited for:

Club & bar installations
Live sound
Theatres
Houses of worship
Broadcast
Public address
Multi media spaces

Ultra-Compact Design: Two-way passive system ideal for discreet installations and high-fidelity sound reinforcement.
Quality Components: Features a 5″ transducer (1″ voice coil) and a 1″ silk dome tweeter with a neodymium magnet.
Acoustic Performance: 109 dB Max SPL with a frequency range from 75 Hz to 20 KHz.
Wide Coverage: Provides a 60º x 60º conic dispersion, ensuring uniform sound distribution in small spaces.
Elegant Construction: Built from 12 mm premium birch plywood finished in high-resistance textured paint.

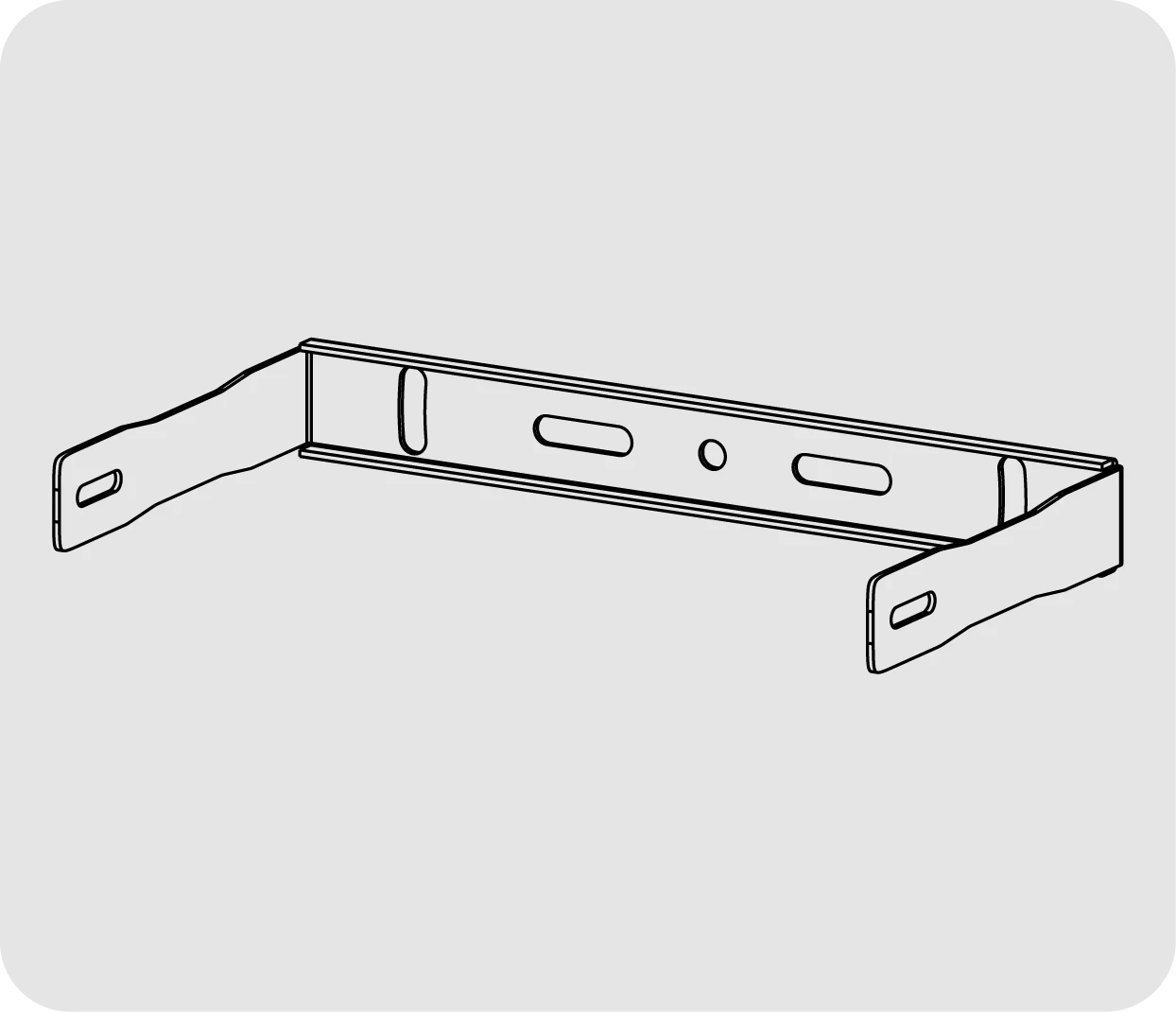

Simple Installation: Comes standard with a “U” wall bracket, facilitating mounting in bars, restaurants, and multimedia rooms.
