TS Series

Amplifiers

The TS Series offers 4-channel, 100 V installation amplifiers (300–2500 W) supporting high and low impedance via Phoenix connectors. They features rear-panel level controls and versatile configurations like bridge mode, subsonic filters, and GPIO for third-party integration.

TS Series is a dynamic range of 100 V 4-channel mid/high power level amplifiers meticulously designed to meet the demands of the installation market. Both, high and low impedance loads can be connected, through their input and output Phoenix connectors and output level controlled via potentiometers on the rear panel.
These amplifiers have multiple configuration possibilities such as bridge mode, subsonic filter, channel power limiter and signal link among others, in order to meet the needs of any installation. These devices also can be equipped with a GPIO connection to communicate with a third party control system.
With all these configurations TS amplifiers can meet the power requirements of any installation from 300 up to 2500 W.

Class D Amplification: Four-channel power amplifiers featuring high-efficiency switching technology for touring and installation applications.
DSP Processing: Internal 48 kHz / 32-bit digital processor providing control over crossover, parametric EQ, delay, and limiters.
Control Interface: Front panel LCD screen for quick setup and real-time level monitoring.
Network Connectivity: Ethernet port for remote management and comprehensive configuration via dedicated control software.
Protection Systems: Advanced circuitry against short circuits, overheating, direct current (DC), and mains overload.
Compact & Robust Design: 1U rack format with a reinforced steel chassis, optimizing space without compromising power output.

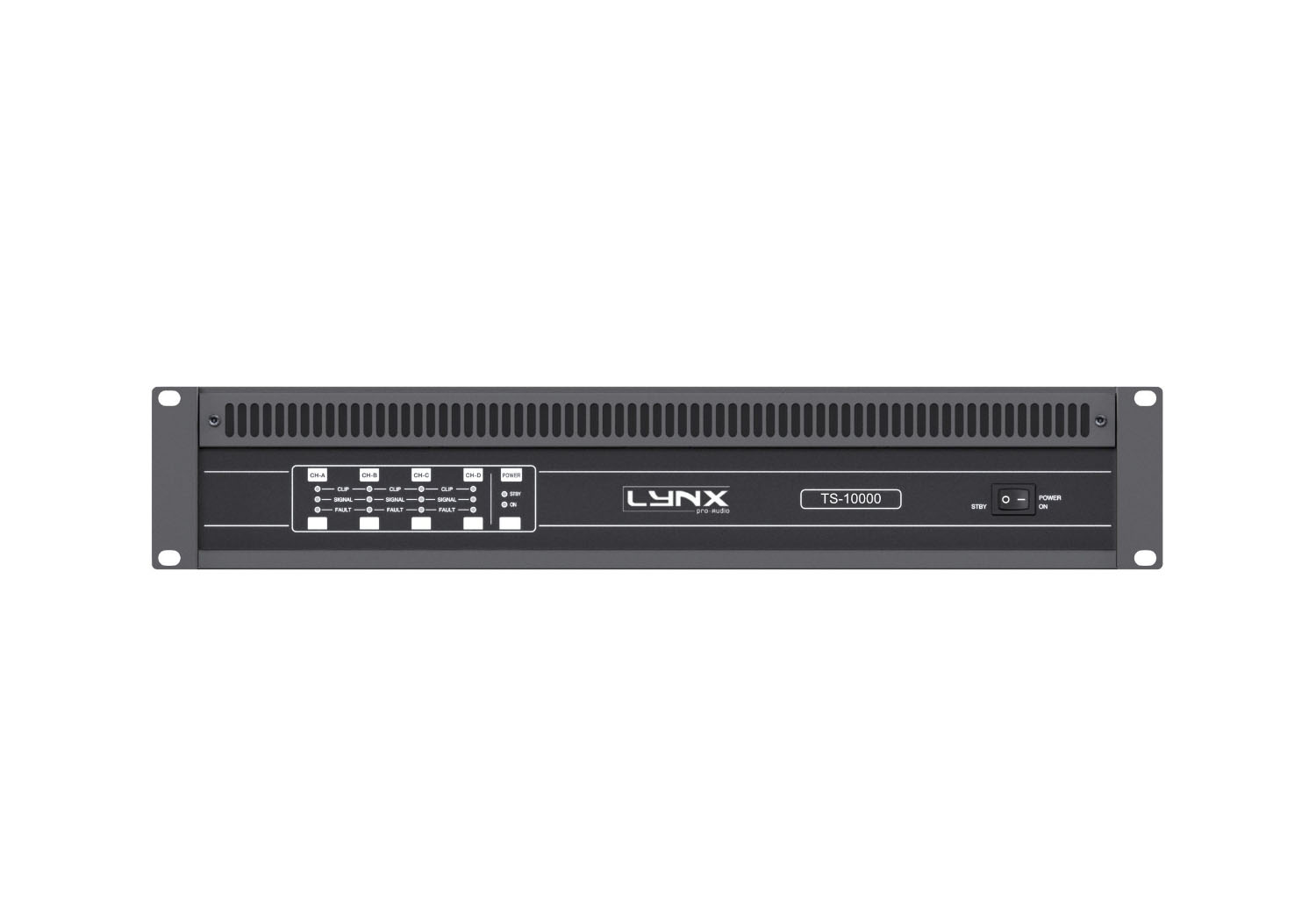

	TS-2500	TS-5000	TS-10000
Number of channels	4	4	4
Total output power	2500 W	5000 W	10000 W
*Output power (All ch driven / single ch)**
@ 2 Ohms	4x 312 / 1x 312 W	4x 1250 / 1x 1250 W	4x 2500 / 1x 2500 W
@ 2.67 Ohms	4x 430 / 1x 430 W	4x 1250 / 1x 1700 W	4x 2500 / 1x 3300 W
@ 4 Ohms	4x 625 / 1x 625 W	4x 1250 / 1x 2500 W	4x 2500 / 1x 2500 W
@ 8 Ohms	4x 625 / 1x 1250 W	4x 1250 / 1x 1250 W	4x 1250 / 1x 1300 W
Bridge @ 4 Ohms	2x 625 W	2x 2500 W	2x 5000 W
Bridge @ 8 Ohms	2x 1250 W	2x 2500 W	2x 5000 W
Hi-Z 100V	4x 625 / 1x 1250 W	4x 1250 / 1x 2500 W	4x 2500 / 1x 2500 W
Hi-Z 70V	4x 625 / 1x 900 W	4x 1250 / 1x 1800 W	4x 2500 / 1x 2500 W
Max output voltage
	150 V peak	150 V peak	150 V peak
Max output current
	18 A peak	36 A peak	50 A peak
Total Harmonic Distortion
20Hz-20KHz	<0.05%	<0.05%	<0.05%
Crosstalk
20Hz-1KHz	>70 dB	>70 dB	>70 dB
Gain
	26 dB to 44 dB	26 dB to 44 dB	26 dB to 44 dB
Signal to Noise Ratio
20Hz-20KHz	111 dBA	111 dBA	111 dBA
Required AC Mains
Operating Voltage (50Hz-60Hz)	90V -265V AC	90V -265V AC	90V -265V AC
1/8 Rated Power (230V, @4 Ohm)	2.1 A	3.7 A	7.3 A
Dimensions
W x H x D (mm)	483 x 88.9 x 342	483 x 88.9 x 342	483 x 88.9 x 342
W x H x D (inches)	19 x 3.5 x 13.5	19 x 3.5 x 13.5	19 x 3.5 x 13.5
Weight
Net	7 Kg / 15.4 lbs	7 Kg / 15.4 lbs	7 Kg / 15.4 lbs
Protections
Soft-start, Turn-on Turn-off transients, Muting at turn-on, Over-heating, DC, RF, Short-circuit, Open or mismatched loads, Overloaded power supply, ICL™ and PCM™

* IEC filtered pink noise signal (40Hz-5kHz, 12dB crest factor). 230V AC mains.

More features

Hardware for TS Series

Accesories for TS Series

Amplifier features

Low weight high efficiency class D topology
Universal power supply with PFC
Up to 10000 W in 4 channels
8, 4 and 2 Ohm low impedance operation
100, 70, 50 and 35 V high impedance modes
Power Control Management
Phoenix connectors for inputs and outputs
Up-side-down design to avoid fan dust accumulation
Temperature controlled, front to back cooling
Gain configuration from 26 to 40 dB
GPIO for third party interface. Dante™, AES3 and Networking AES67 options
Subsonic filter
Signal link mini-dips configurable
Output level control in rear panel
Output mode configuration for high or low impedance with power limitation

Parameters configuration

Amp channel setup:

50Hz HP: 50Hz subsonic filter
Output Mode: Hi impedance voltage selector. Low impedance power limitation
Bridge mode: Low impedance bridge mode. 200V/140V high impedance mode
Gain selection: change gain from 26dB to 40dB (2 dB steps)

Signal setup:

Input Link: link input signal in consecutive channels
Ouput Levels: hidden potentiometers to adjust output level

GPIO interface:

GPI Power: turn on/off by sustained contact or sustained voltage
GPI Mute: mute/unmute completelly amplifier by contact or voltage
GPO Monitor: monitor each individual channel, with switching contacts for fault/OK status
