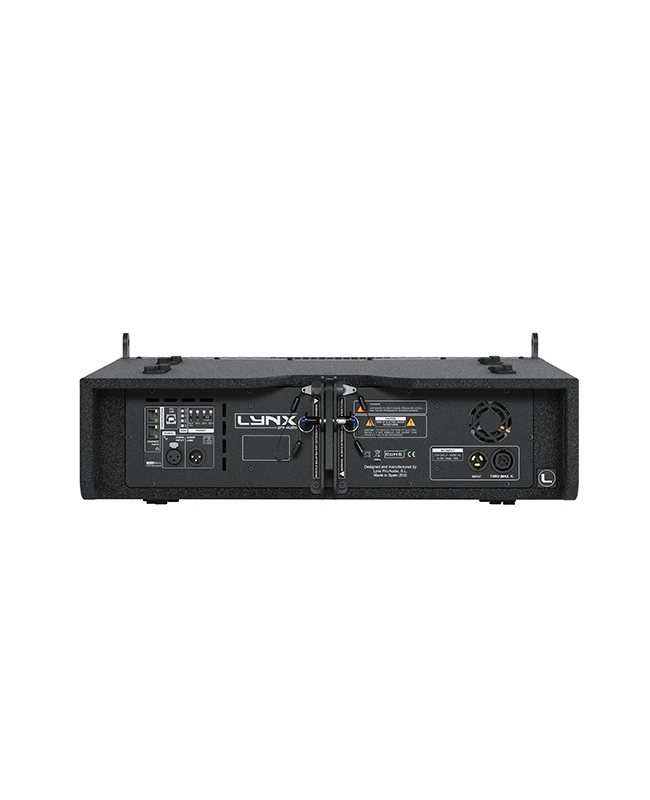

LAIA-26

New compact line array

Bi-amplified enclosure that offers high levels of power from a compact system.

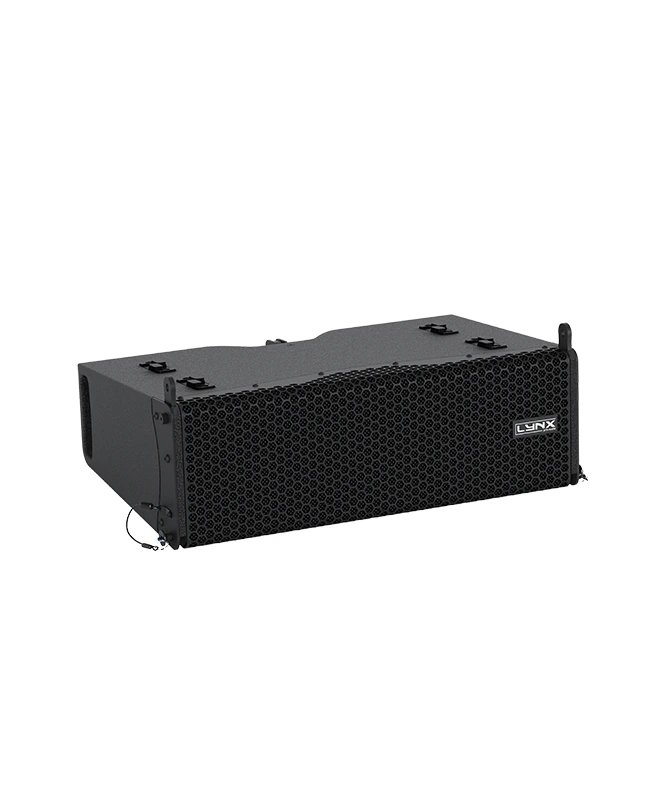

The LAIA-26 enclosure is a ultra compact Line Array module that offers an ideal solution for a wide variety of indoor and outdoor applications where a compact, practical and reliable Line Array system is required. LAIA-26 is a self-powered 2-way system with a total of 1200W in class D, universal switching power supply. Equipped with a powerful next-generation 64-bit/96KHz DSP designed and manufactured by Lynx Pro Audio, it offers the most recent advances in digital processing, such as FIR filters, which offer linear frequency and phase response.

The latest 32-bit/96KHZ AD/DA converters make the system one of the most advanced and innovative line arrays on the market, resulting in superior sound quality. Additionally, LAIA series systems can be controlled remotely using the OCS control platform, giving the user the ability to control the systems without the need for external processors.

Perfectly suited for:

Outdoor events
Theatres
Frontfill/downfill
Auditoriums
Clubs
Indoor live PA
Houses of worship

Class D Powered (bi-amplified)
Integrated Digital Processing
Internal temperature control
Electronic protection
FIR linear phase filtering
Online monitoring available
Two way active system

Components

LF: 2 x 6”, 2” voice coil, waterproof treatment
HF: 1 x 1” exit throat 1.75” voice coil

Frequency Range

75 Hz – 20 KHz (-10 dB)

Frequency Response

85 Hz – 18 KHz (± 3dB)

Max SPL*

124dB / 130 dB Peak

Coverage

100º H x 8 º V

Power

1200 W (2400 W peak) Class D with switching power supply
LF amplifier: 1 x 800 W RMS, 1600 W peak
HF amplifier: 1 x 400 W RMS, 800 W peak

DSP Processing

DSP Lite 96 KHz / 64 bit double-precision

Control

User control interface

Control connections

USB (DSP programming) / Dual Ethernet port

Input

Analog BAL/UNBAL XLR, Digital AES/EBU (Optional)

AC power

90 – 264V. 50/60 Hz with PFC

AC connections

16A Neutrik powerCon true1 TOP with looping output

Finish

Polyurea coating, high grade resistant paint

Material

15 mm premium birch plywood

Dimensions

181 x 549 x 356.8 mm (H x W x D) without pins

Weight

15 Kg (33.07 lbs)

* Calculated maximum SPL based on rated peak power and measured sensitivity

More features

Hardware for LAIA-26

Enclosure

The LAIA-26 cabinet is constructed from 11-ply premium plywood (15mm thickness) and finished with polyurea coating

Internal design

The internal structure of the LAIA- 26 is heavily braced for greater longevity and all parts are assembled on metal inserts with metric screws. The amplification modules & DSP are housed in a separate chamber to the drivers avoiding excessive heat & vibration, thus delivering greater efficiency and reliability.

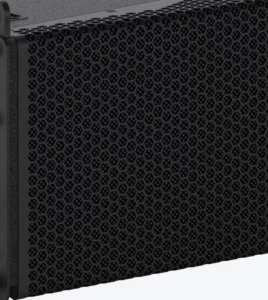

Grill

The LAIA-26 has two heavy duty, powder coated front grille with a special acoustic rear fabric to protect the transducers against dust and dirt.

Rigging

The 3 point rigging system with 2 front retractile levers and 1 centre/rear point enables up to 16 LAIA- 26 cabinets to be flown in a single array, with optional splay angles, from between 0º to 10º with 1º step increments to create the desired curve.

The system can also be rigged and angled in retracted position enabling a much easier set-up without the need to lift each cabinet individually.

Transport

The LAIA-26 is easy to transport thanks to its dedicated flight case where it can be stowed in rest position. With craddle option: no need to lock pins.

Accesories for LAIA-26

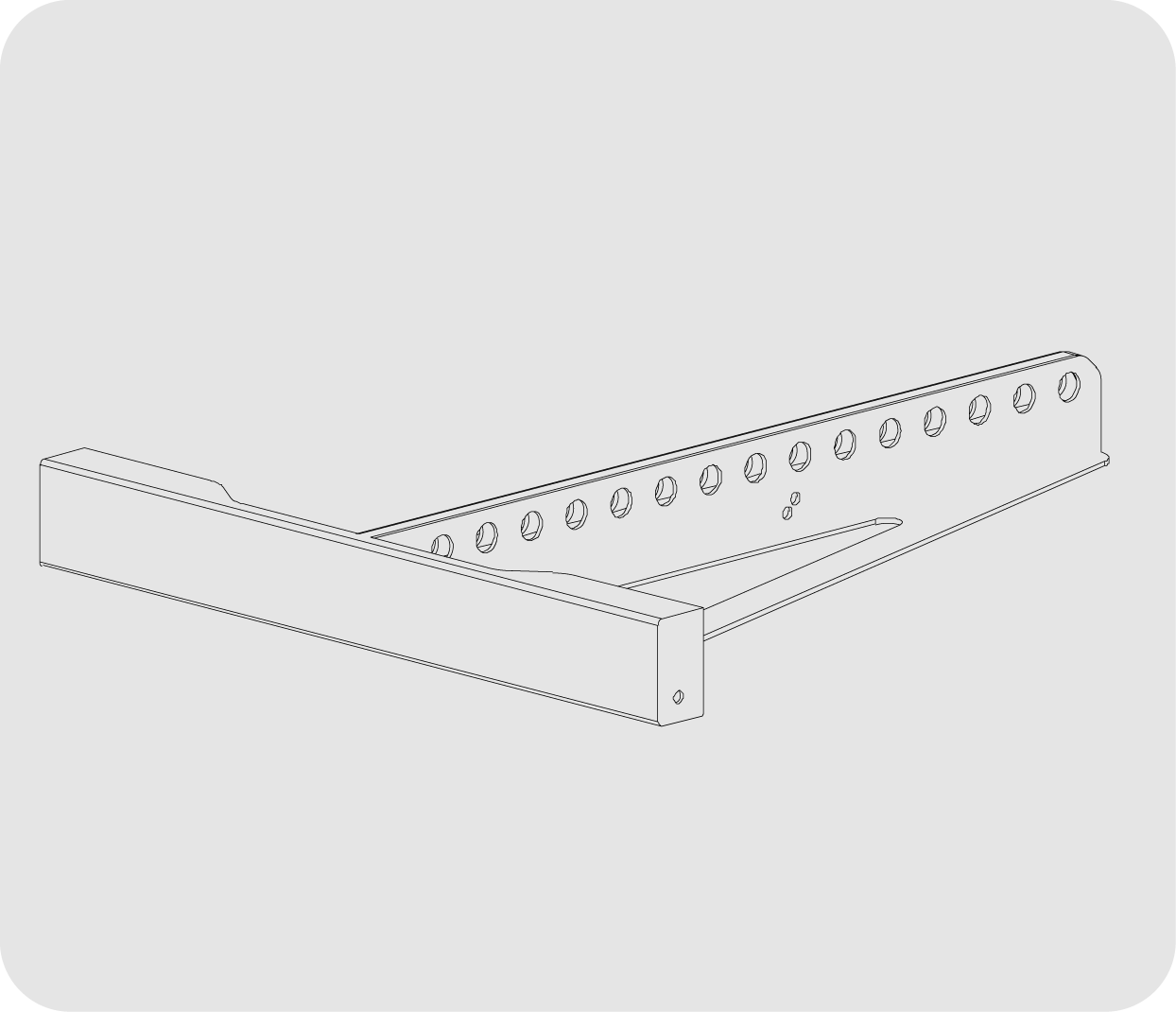

SV-LAIA26

Flying frame for LAIA-26

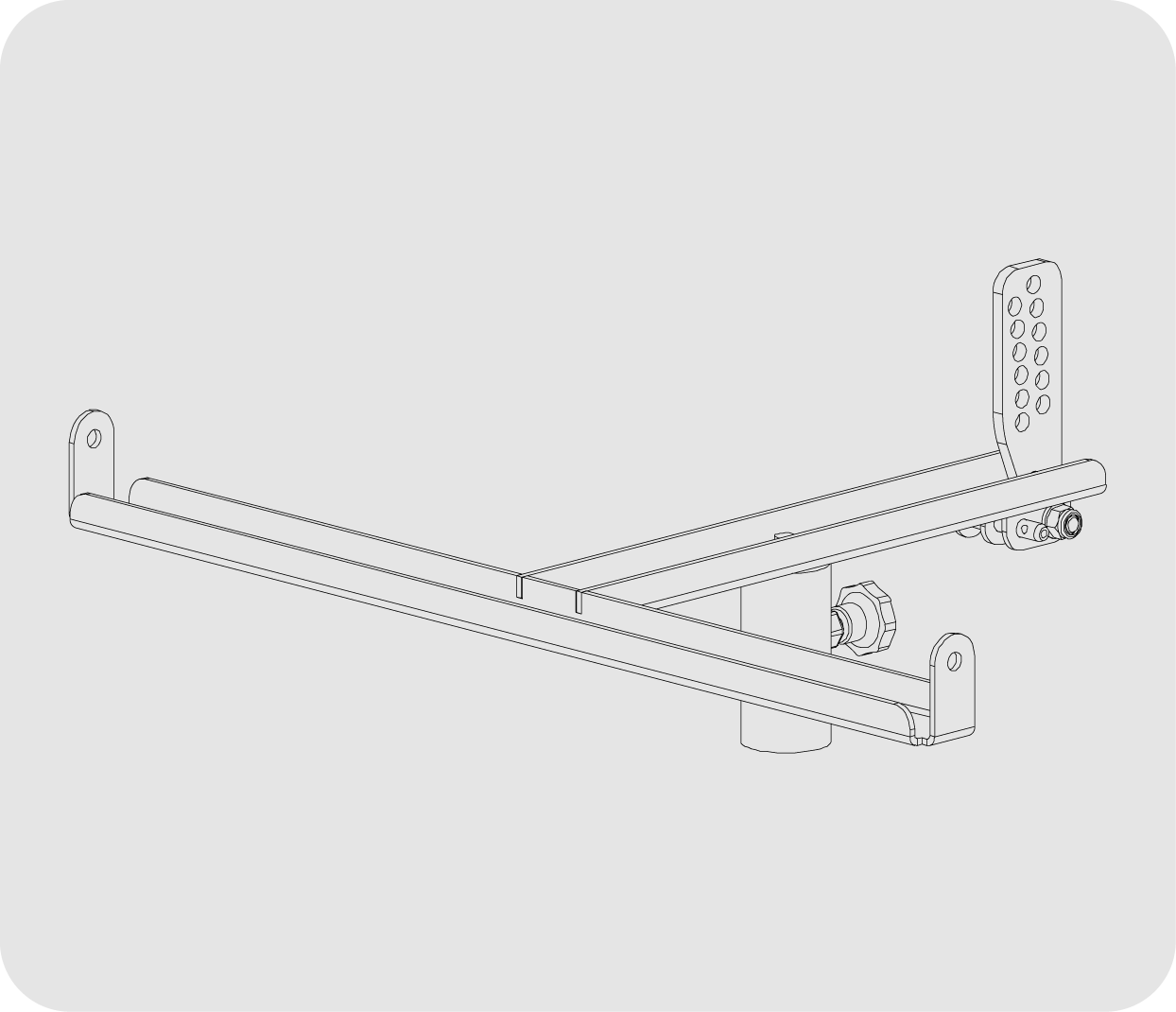

STRP-LAIA26

Pole frame for LAIA-26

DSP configuration

DSP panel configuration

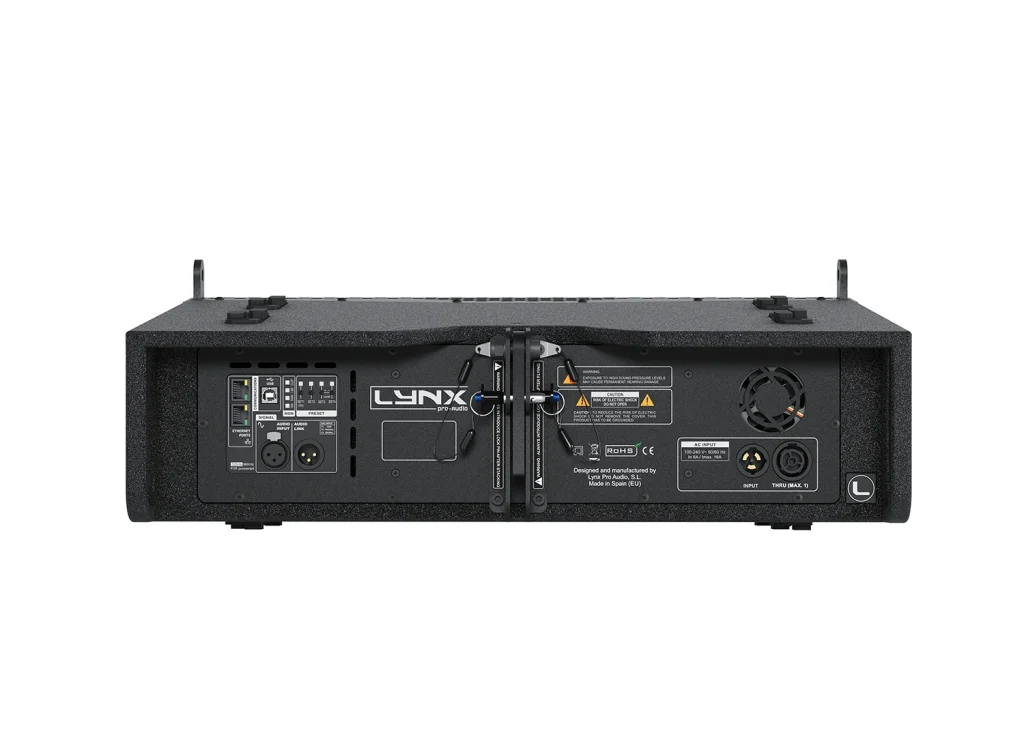

On the back pannel of the cabinet you will find the digital control area. From the compact joystick located below the screen you are able to configure the basic adjustment functions of the internal DSP.

Just move the joystick to select the icons on the left of the screen. You can enter into the following functions: Home, settings, folder, configuration and information. Please note that you must apply the desired configuration in each one cabinet and requires electrical power to work.

If changes are not made the display will automatically dim to avoid unnecessary light in situations where light is not wanted. To re-activate the light simply press the joystick.

The following screens are an example and may vary slightly for each cabinet.

HOME

On the main screen you can see the cabinet’s input and output:

• Input: You can see a vumeter with the input level and a clip signal.

• Output: You have a vumeter with the output level (0 dBu is the amp’s maximum level) You can check the compressor and control the dynamic activity.

SETTINGS

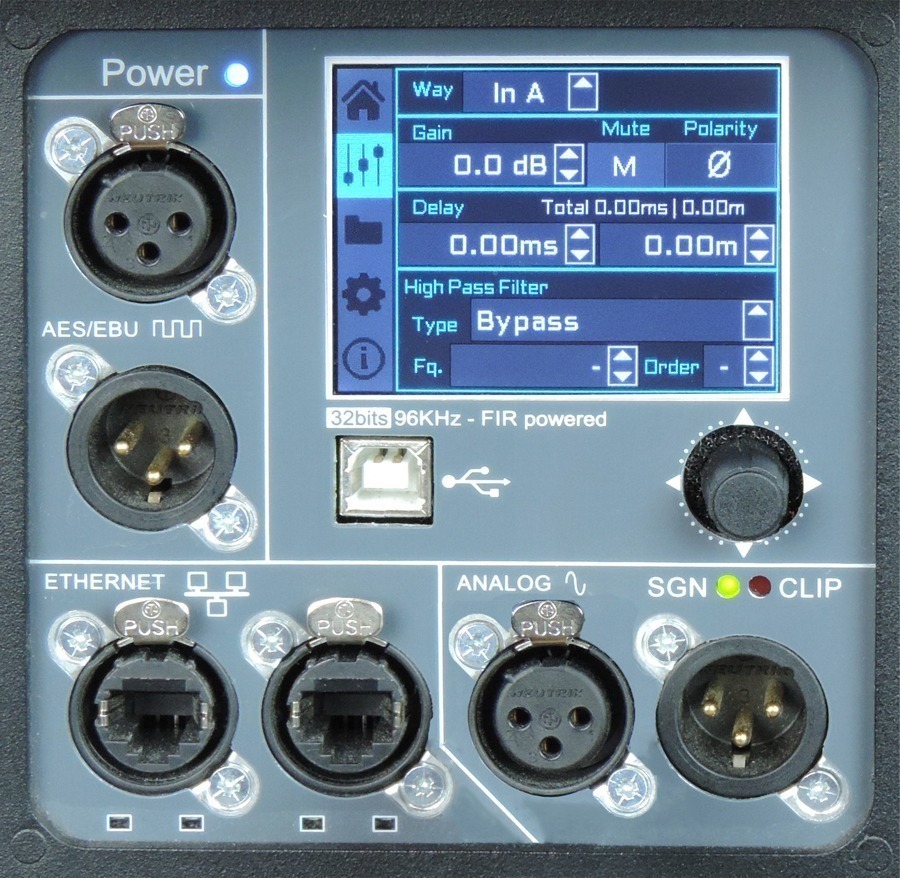

This panel allows you to change the gain, polarity, mute and the delay for the inputs.

You also have the possibility of putting a high pass, changing the type of filter, frequency and order.

FOLDER

The folder screen shows you the name of the preset and its description.

Using the joystick you can change the preset.

CONFIGURATION

This screen is to configurate Ethernet. You can choose automatic or manual.

You can also configure the screen saver.

And here you have the input selection. You can choose between analog or AES3 for channel 1 or channel 2.

INFORMATION

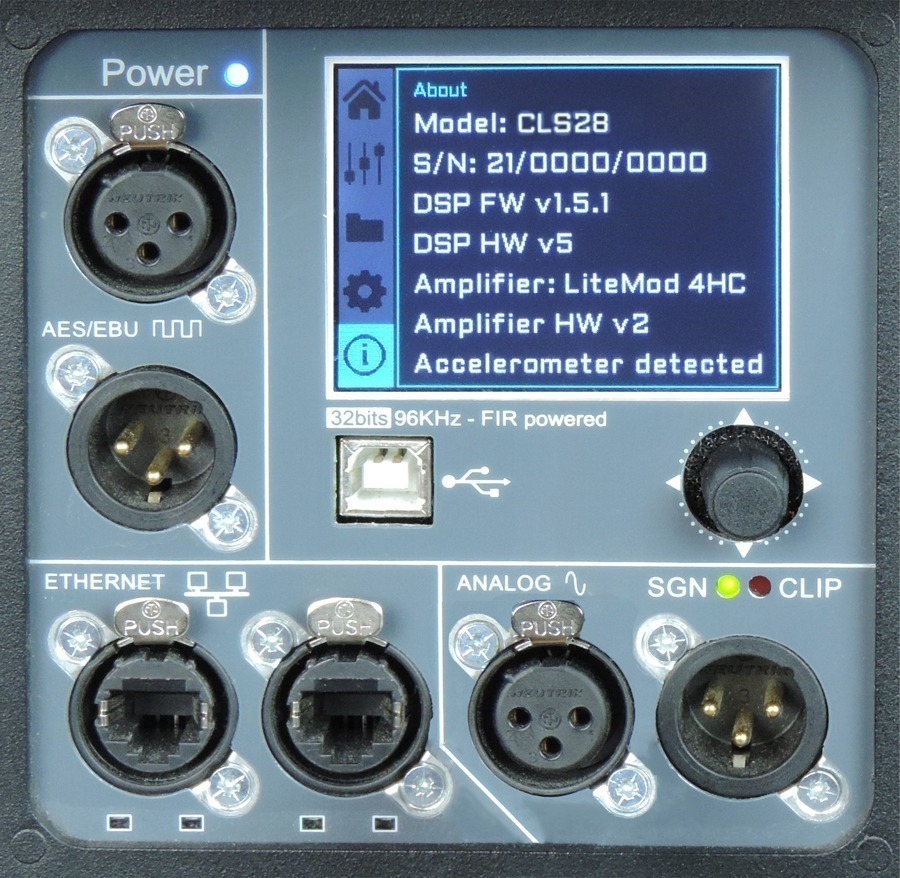

The last screen shows you some general information regarding the cabinet’s components.

Here you can see the cabinet model, its serial number, DSP firmware and hardware versions, amp module model with hardware version, as well as the accelerometer status.
