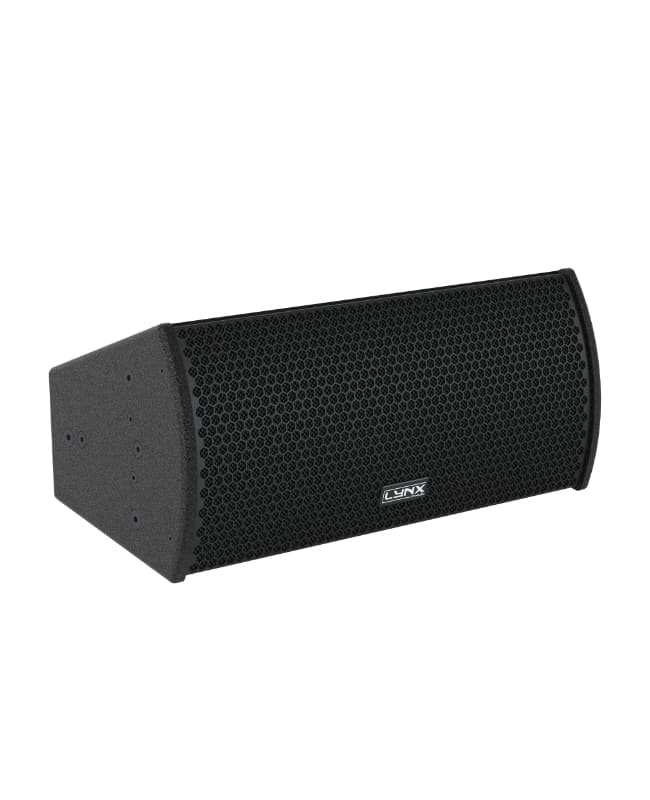

HR-206 (64/96/124)

Pure install speaker

High performance, ultra-compact, full range, two way bi-amp/ passive cabinet. Different models available depending on coverage angle: 60º x 40º / 90º x 60º / 120º x 40º rotatable horn.

The HR-206 enclosure is a high-performance passive full range, with an excellent power-size ratio.It consists of two 6.5”transducers (at 8ohm impedance) and a 1”high frequency compression driver.

Different models available depending on the coverage angle: HR-206/64, HR-206/96 and HR-206/124. It offers a wide dispersion of 60º x 40º / 90º x 60º / 120º x 40º and 122dB SPL (800W program).

This enclosure offers a selectable operation between bi-amp or passive mode and is ideal for a wide variety of applications and has several accessories that provide an easier installation.

Although this cabinet can be used without a processor, the best performance is achieved when using our presets, optimised for LUKA processors and GTX amplifiers. Please note that using the cabinet without our recommended processors or amplifiers may affect the product warranty.

For Low Frequency reinforcement, several subwoofer options are available.

Perfectly suited for:

Club & bar installations
Sound reinforcement
Theatres
Houses of worship
Multi media spaces
Public address

High-Fidelity Performance: Two-way passive system delivering 400W RMS (800W Program) in a compact and elegant format.
Precision Components: Features dual 6.5″ transducers (1.5″ voice coil) and a 1″ neodymium tweeter for clear and detailed reproduction.
Acoustic Quality: 111 dB Max SPL (117 dB peak) with a frequency range from 60 Hz to 20 KHz.
Controlled Dispersion: Rotatable 90º x 60º coverage, allowing for both vertical and horizontal placement.
Premium Construction: Built from 12 mm premium birch plywood finished in high-resistance polyurea coating.
Installation Versatility: Ideal for subtle sound reinforcement, available in an Outdoor version and any RAL color upon request.

Components

LF: 2 x 6.5″, 2″ voice coil
HF: 1″ Exit compression Driver , 1.5″ aluminium voice coil, High temperature polymer

Frequency range

72 Hz – 20 KHz (-10dB)

Frequency response

78 Hz – 20 KHz (± 3dB)

Sensivity

Passive Mode: 90 dB (1W@1m)

Max SPL*

Passive Mode: 116 dB – 122 dB Peak
Bi-Amp LF: 116 dB – 122 dB Peak
Bi-Amp HF: 128.5 dB – 134.5 dB Peak

Coverage

60º x 40º / 90º x 60º / 120º x 40º rotatable

Power

Passive mode: 400 W (800 W program, 1600 W peak)
Bi- Amp LF: 400 W (800 W program, 1600 W peak)
Bi-Amp HF: 70 W (140 W program, 280W peak)

Crossover

Bi-Amp / Passive (Selectable)

Nominal Impedance

8 Ω – also available in 4 Ω

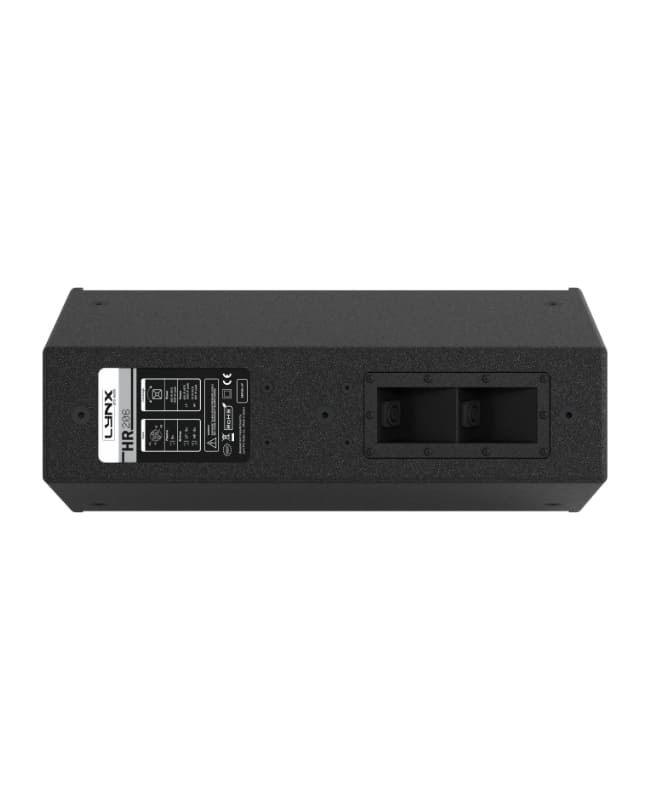

Connectors

2 x Neutrik Speakon NL4MP

Finish

Polyurea coating – other colours (RAL) available

Material

15 mm premium birch plywood

Dimensions

249 x 568 x 252 mm (H x W x D)

Weight

15 Kg (33 lbs)

* Calculated maximum SPL based on rated peak power and measured sensitivity.

More features

Hardware for HR-206 (64/96/124)

Accesories for HR-206 (64/96/124)

AGR-10

Eye bolt for the HR-206

UBR-HR26

Horizontal bracket for the HR-206

WB-20/2

Wall bracket for HR-206

NOTE: This cabinet is compatible with Konig & Meyer 195/8 mounting adapter for speaker stands with 35 mm tube diameter. This accessory is not provided by Lynx Pro Audio.
