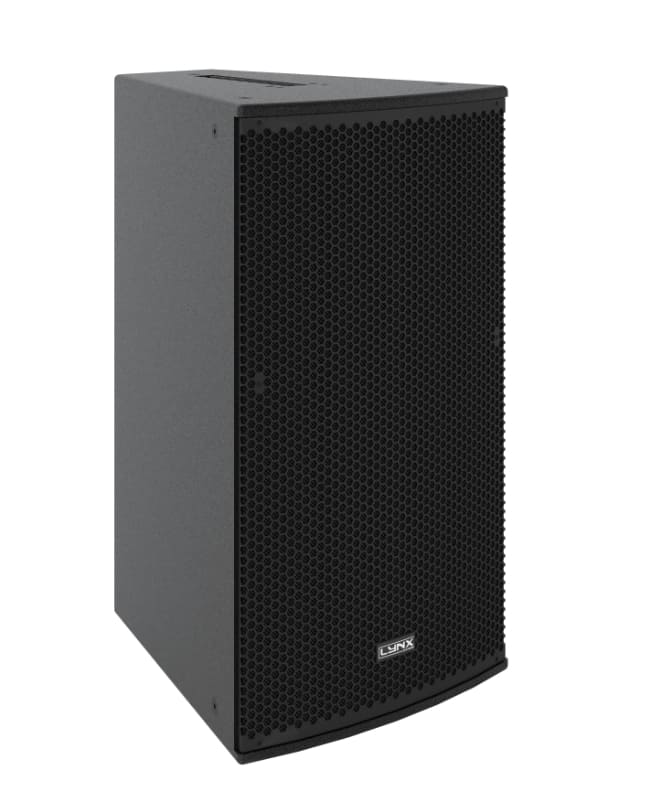

HR-1564/7 & HR-1596/7

Pure install speaker

High performance, ultra-compact, full range, two way bi-amp/ passive cabinet.

High performance, ultra-compact, full range, two way bi-amp/passive cabinet. It consists of a 15” transducer and a 1.4” high frequency compression driver. They offer 2 dispersion options. The model HR-1564/7 provides a narrow dispersion of 60º x 40º (rotatable) and the model HR-1596/7 offers a wide dispersion of 90º x 60º (rotatable). 129dB SPL (1400W program)

This cabinet is ideal for a wide variety of applications and has a range of accessories that provide an easier assembly.

Although this cabinet can be used without a processor, the best performance is achieved when using our presets, optimised for LUKA processors and GTX amplifiers. Please note that using the cabinet without our recommended processors or amplifiers may affect the product warranty.

For Low Frequency reinforcement, several subwoofer options are available.

Perfectly suited for:

Club & bar installations
Theatres
Houses of worship
Interior live PA

Performance Power: High-power two-way passive system delivering 700W AES (1400W Program / 2800W Peak).
Precision Components: Features a 15″ transducer (3″ voice coil) and a 1.4″ neodymium compression driver with a titanium diaphragm.
Acoustic Quality: 123 dB Max SPL (129 dB peak) with a frequency range from 50 Hz to 18 KHz.
Coverage Options: Available in two rotatable horn versions: 60º x 40º (1564/7) or 90º x 60º (1596/7).
Premium Construction: Built from 15 mm premium birch plywood finished in high-resistance polyurea coating.
Installation Versatility: Includes 12 x M10 rigging points and an optional Outdoor version for extreme weather protection.

Components

LF: 15″. 3.5″ aluminium voice coil, waterproof front side cone treatment, neodymium magnet
HF: 1.4″ Exit compression Driver, 2.5″ aluminium voice coil, Titanium diaphragm

Frequency range

58 Hz – 20 KHz (-10dB)

Frequency response

64 Hz – 18 KHz (± 3dB)

Sensivity

Passive Mode: 94 dB (1W@1m)

Max SPL

Passive Mode: 123dB – 129dB Peak
Bi-Amp LF: 126dB – 132dB Peak
Bi-Amp HF: 127dB – 133dB Peak

Coverage

Constant directivity horn (Rotatable)
90º x 60º (HR-1596/7) / 60º x 40º (HR-1564/7)

Power

Passive mode: 700 W (1400 W program, 2800 W peak)
Bi- Amp LF: 700 W (1400 W program, 2800 W peak)
Bi-Amp HF: 80 W (160 W program, 320W peak)

Crossover

Bi-Amp / Passive (Selectable)

Nominal Impedance

8 Ω Passive / Biamp LF 8 Ω, HF 8 Ω

Connectors

2 x Neutrik Speakon NL4MP

Finish

Polyurea coating – other colours (RAL) available

Material

15 mm premium birch plywood

Dimensions

790 x 444,5 x 541 mm (H x W x D)

Weight

32 Kg (70.5 lbs)

More features

Hardware for HR-1564/7 & HR-1596/7

Enclosure

The HR-1564/7 & HR-1596/7 cabinet is constructed from 11-ply premium birch plywood (15mm thickness) and finished with polyurea coating.

Internal design

The internal structure of the HR-1564/7 & HR-1596/7 is heavily braced for greater longevity and all parts are assembled on metal inserts with metric screws.

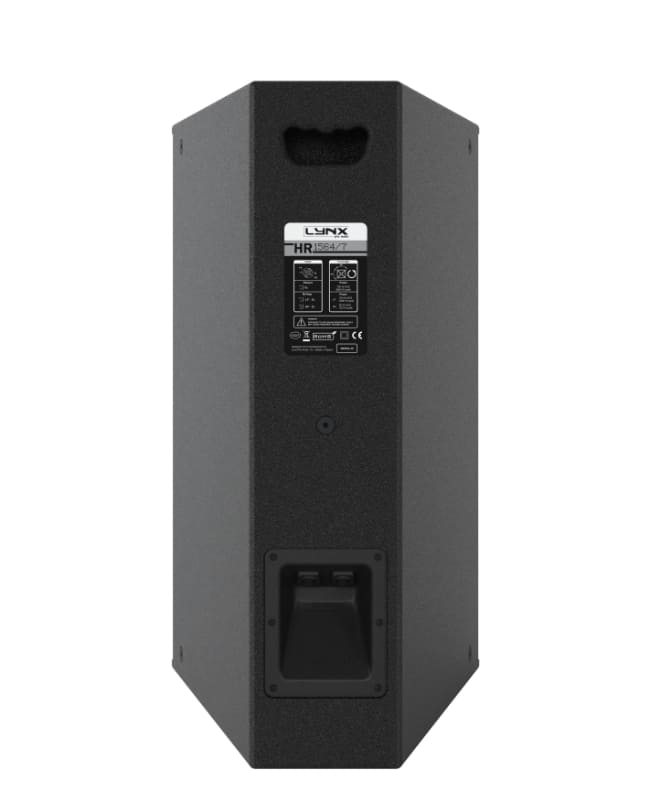

Rear panel

A compact powder coated steel panel contains the connectors.

Grill

The cabinet has a heavy duty, powder coated front grille with a special acoustic rear fabric to protect the transducers against dust and dirt.

Handles

An ergonomic handle is located on the rear panel of the enclosure to facilitate transport, positioning and loading of the cabinets.

Rigging

A heavy duty track is integrated on the top of the enclosure to facilitate its installation.

Accesories for HR-1564/7 & HR-1596/7

AGR-10

Eye bolt for HR 1564/7 & HR 1596/7 cabinets

SC-FC1

Lightweight install stud for HR 1564/7 & HR 1596/7

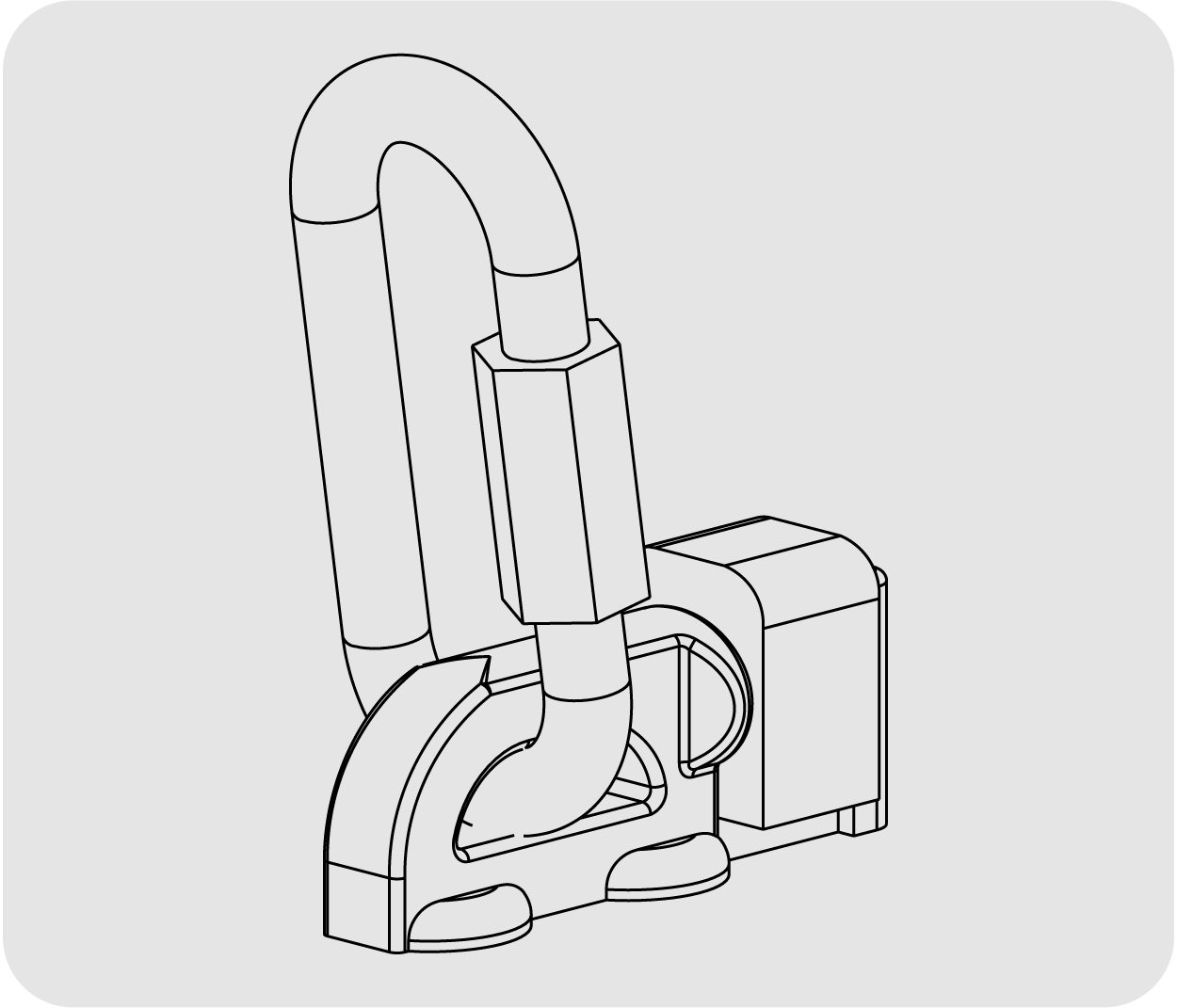

SC-FC2

Heavyweight install stud for HR 1564/7 & HR 1596/7

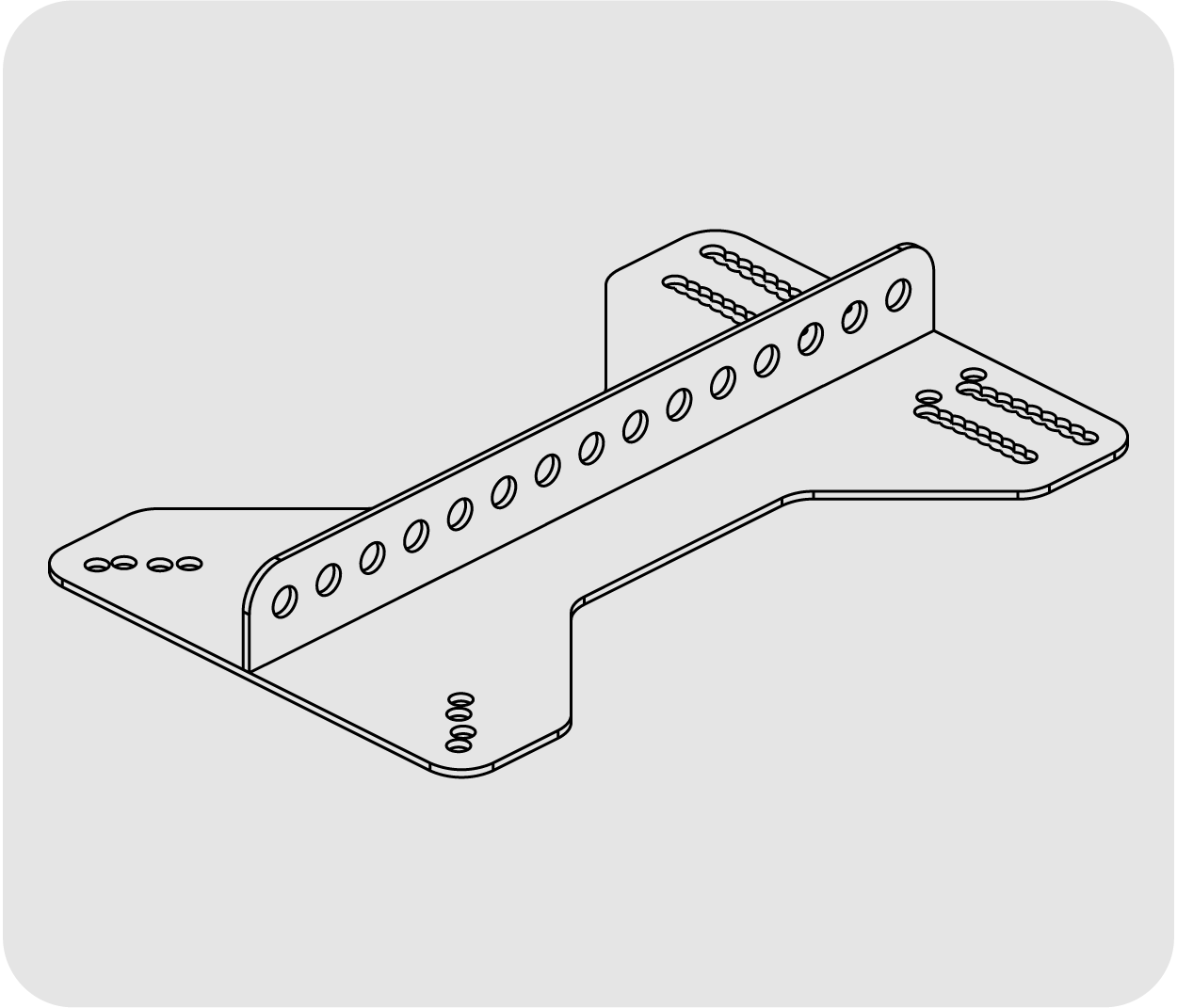

CS-HR1215

Cluster support for HR 1564/7 & HR 1596/7 cabinets

UBR-HR12

Horizontal U bracket for HR 1564/7 & HR 1596/7 cabinets

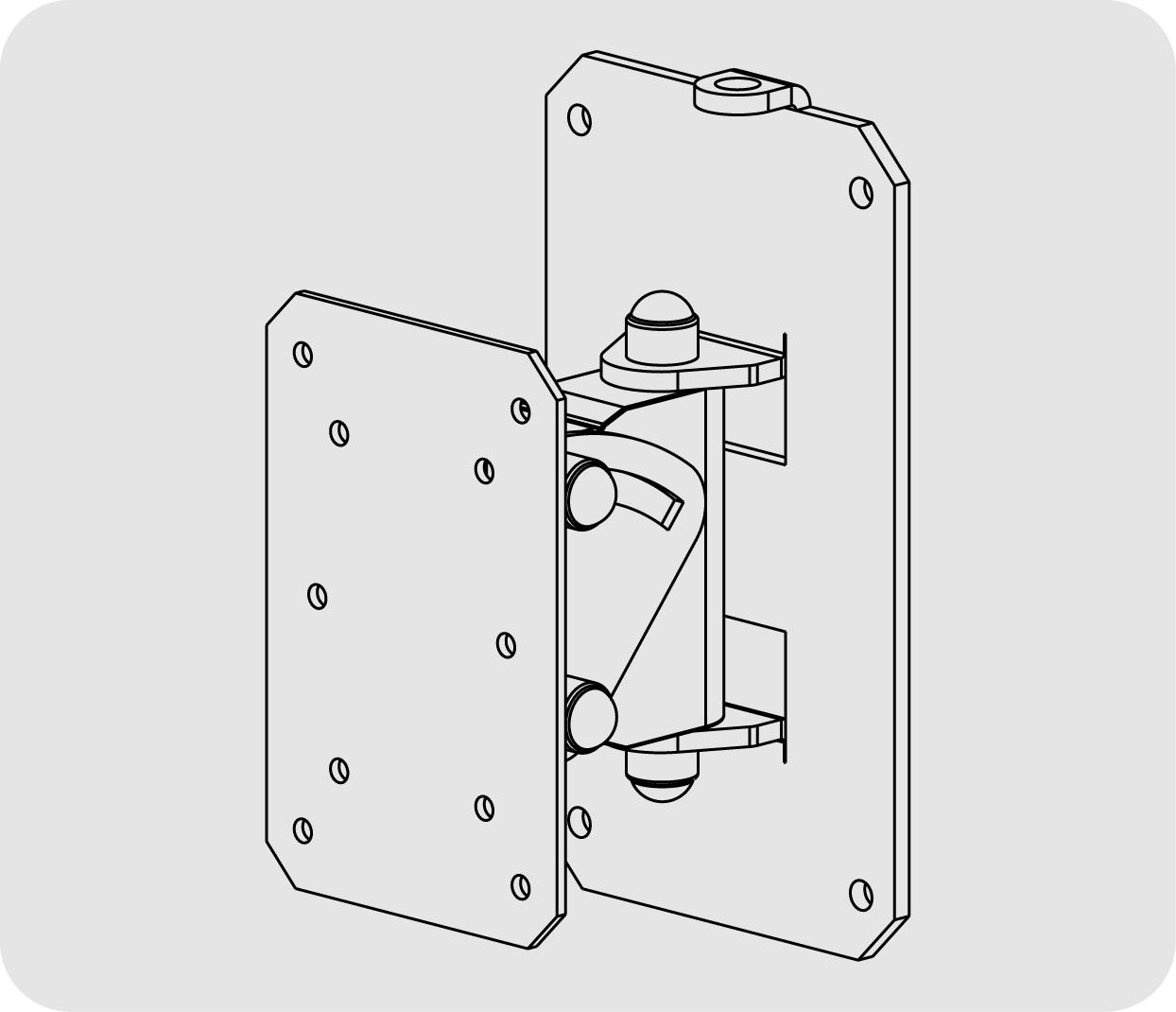

WB-30

Wall bracket for HR 1564/7 & HR 1596/7 cabinets

NOTE: This cabinet is compatible with Konig & Meyer 195/8 mounting adapter for speaker stands with 35 mm tube diameter. This accessory is not provided by Lynx Pro Audio.
