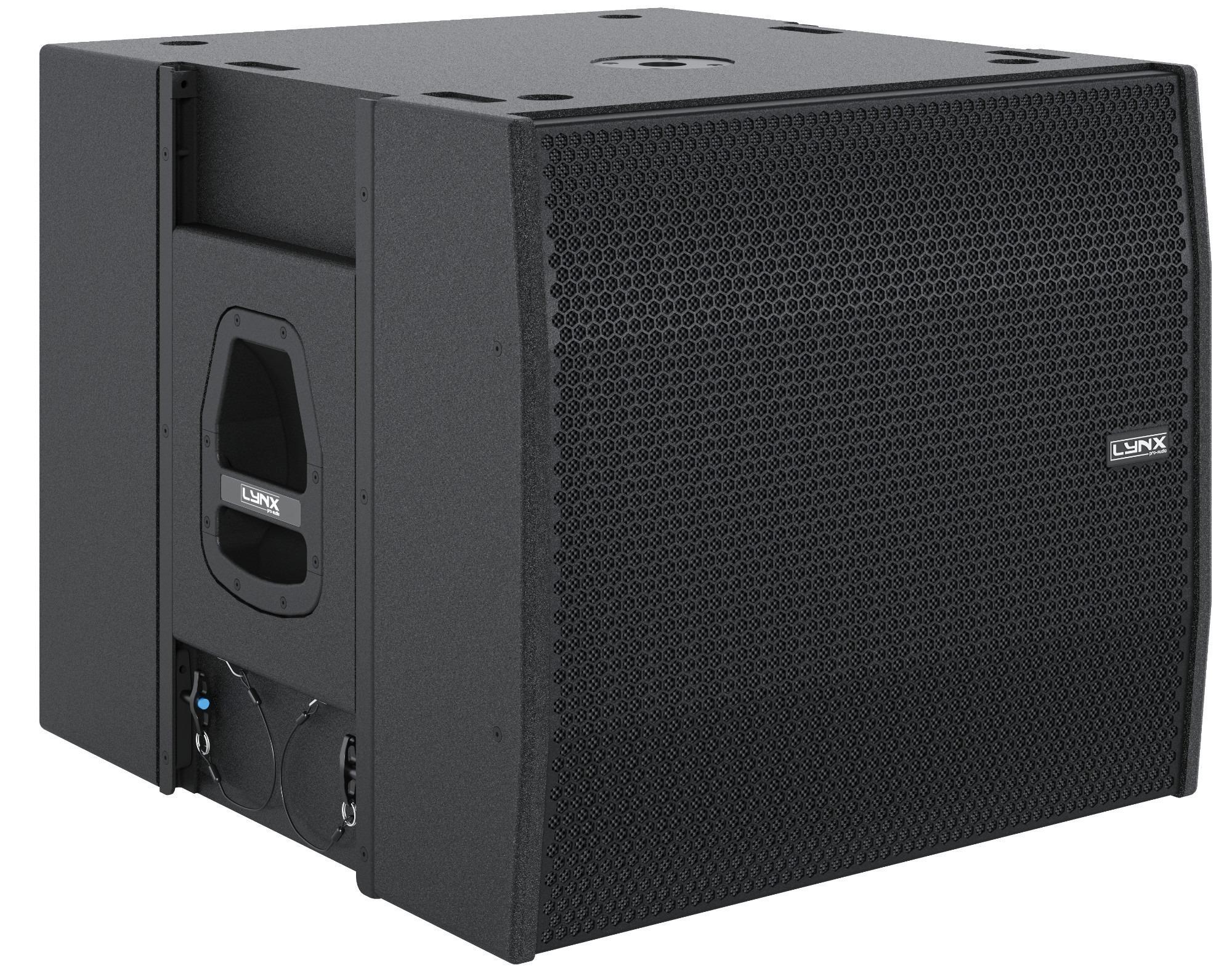

CXA-18S

Powered compact subwoofer for CXA-12

High output, self powered (class D switch mode power supply with PFC), omni-directional subwoofer cabinet.

Consists of a 18″ (4″ ventilated voice coil) neodymium transducer. DSP controlled with 1400W amplification, 132dB SPL.

The CXA-18S is a self-powered subwoofer enclosure specially designed to reinforce the low frequencies of the CXA-12 linear array elements.

Perfectly suited for:

Live PA
Clubs
Theatres
Houses of worship
Fixed installations
Touring

High-Efficiency Power: Self-powered Class D system delivering 1400W with Power Factor Correction (PFC).
Advanced DSP: 96 KHz / 64-bit internal processing featuring linear phase FIR filters.
Acoustic Performance: 132 dB Max SPL with a frequency range of 38 Hz to 140 Hz.
Premium Components: Single 18″ woofer (3″ voice coil) designed for versatile low-frequency reinforcement.
Rugged Construction: 15 mm premium birch plywood enclosure finished in high-resistance polyurea.
Intuitive Control: 2.8″ IPS screen for real-time monitoring, preset management, and optional online control.

Components

LF: 18”, 4” voice coil, Neodymiun magnet assembly

Frequency Range

30 Hz – 140 Hz (-10dB)

Frequency Response

35 Hz – 125 Hz (± 3dB)

Max SPL

132 dB

Coverage

Omnidirectional

Power

1400W Class D with switching power supply & PFC

LF Amplifier: 1 x 1400 W

Processing

96 KHz / 64 bit double-precision, DSP with FIR filter linear phase

Control

User control interface with 2.8″ IPS screen

Control Connections

Ethernet (OCS) / USB (DSP updating)

Input

Analog / AES3 optional

AC Power

90 – 264V. 50/60 Hz with PFC

AC Connections

16A Neutrik powerCon TRUE1 TOP with looping output

Finish

Polyurea coating, black colour

Material

18 mm premium birch plywood

Dimensions

556 x 632 x 696 mm (H x W x D)

Weight

45 kg (99 lbs)

More features

Hardware for CXA-18S

Enclosure

The enclosure is constructed from 13-ply premium birch plywood (18mm thickness) and finished with polyurea coating.

Internal design

The internal structure of the CXA-18S is heavily braced for greater longevity and all parts are assembled on metal inserts with metric screws. The amplification modules & DSP are housed in a separate chamber to the drivers avoiding excessive heat & vibration, thus delivering greater efficiency and reliability.

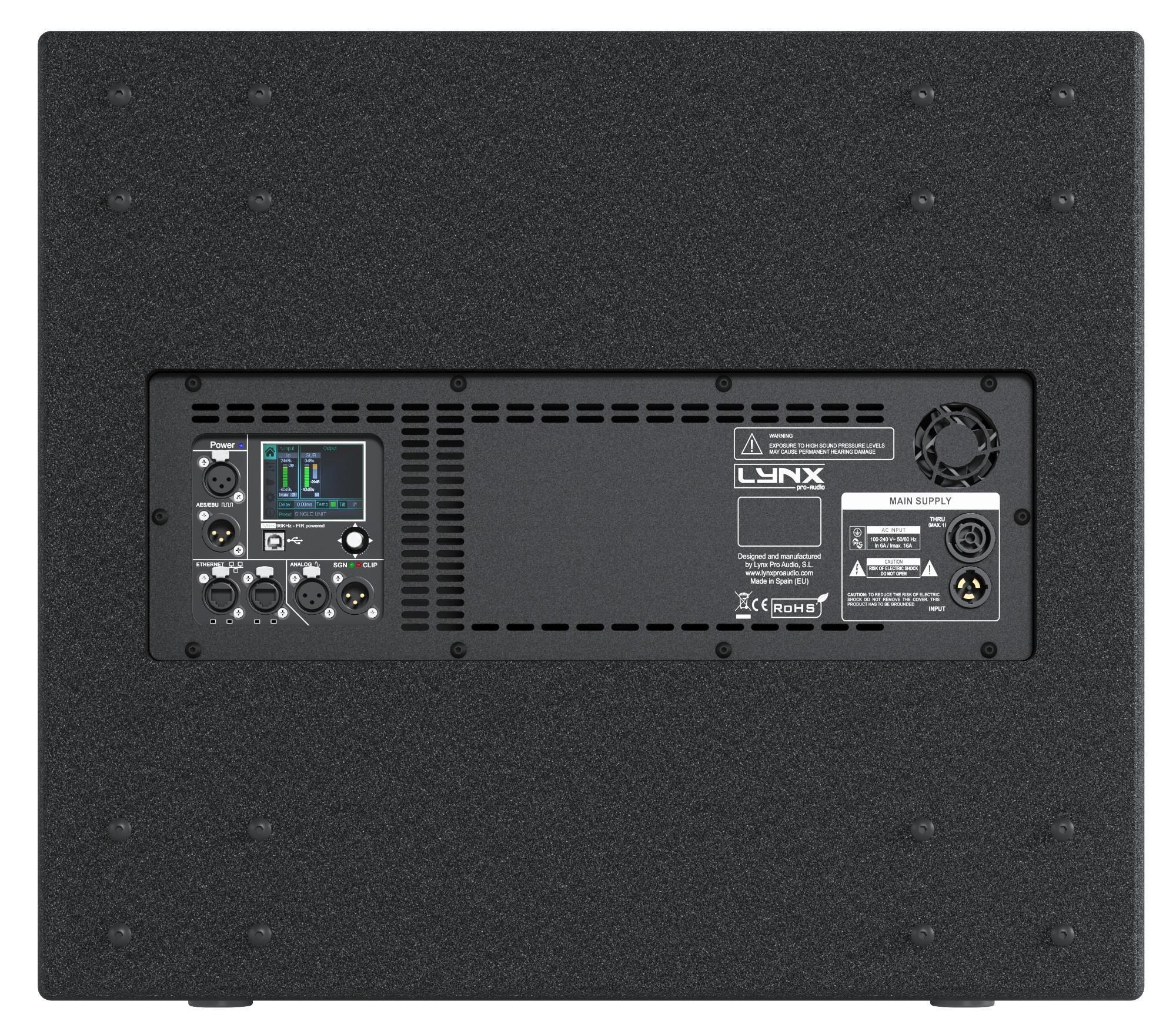

Rear panel

The powder coated steel rear panel contains all connections and houses the CXA-18S amplification modules and DSP, is easily accessible and housed separately from the drivers for increased reliability and efficiency.

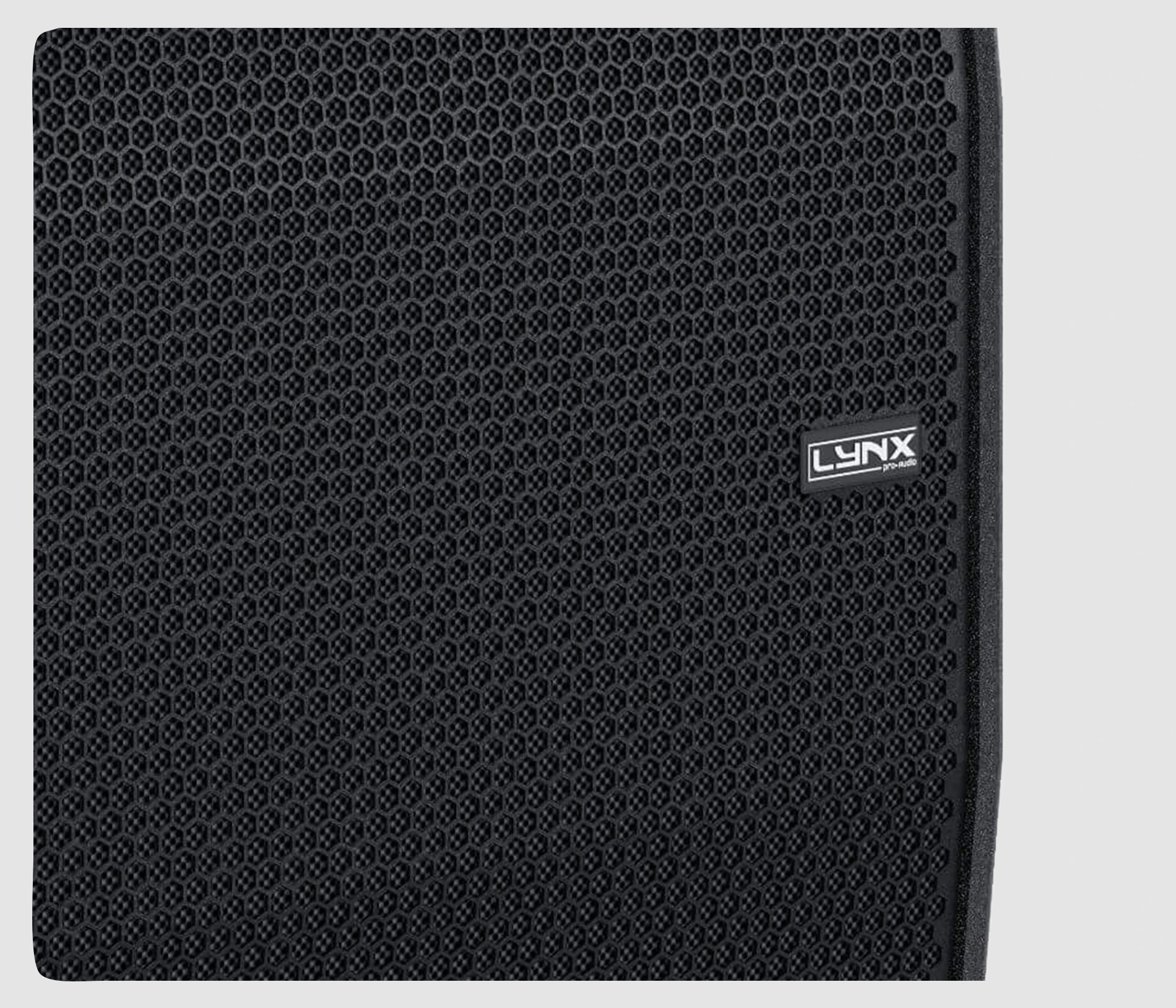

Grill

The CXA-18S has a heavy duty, powder coated front grille with a special acoustic rear fabric to protect the transducers against dust and dirt.

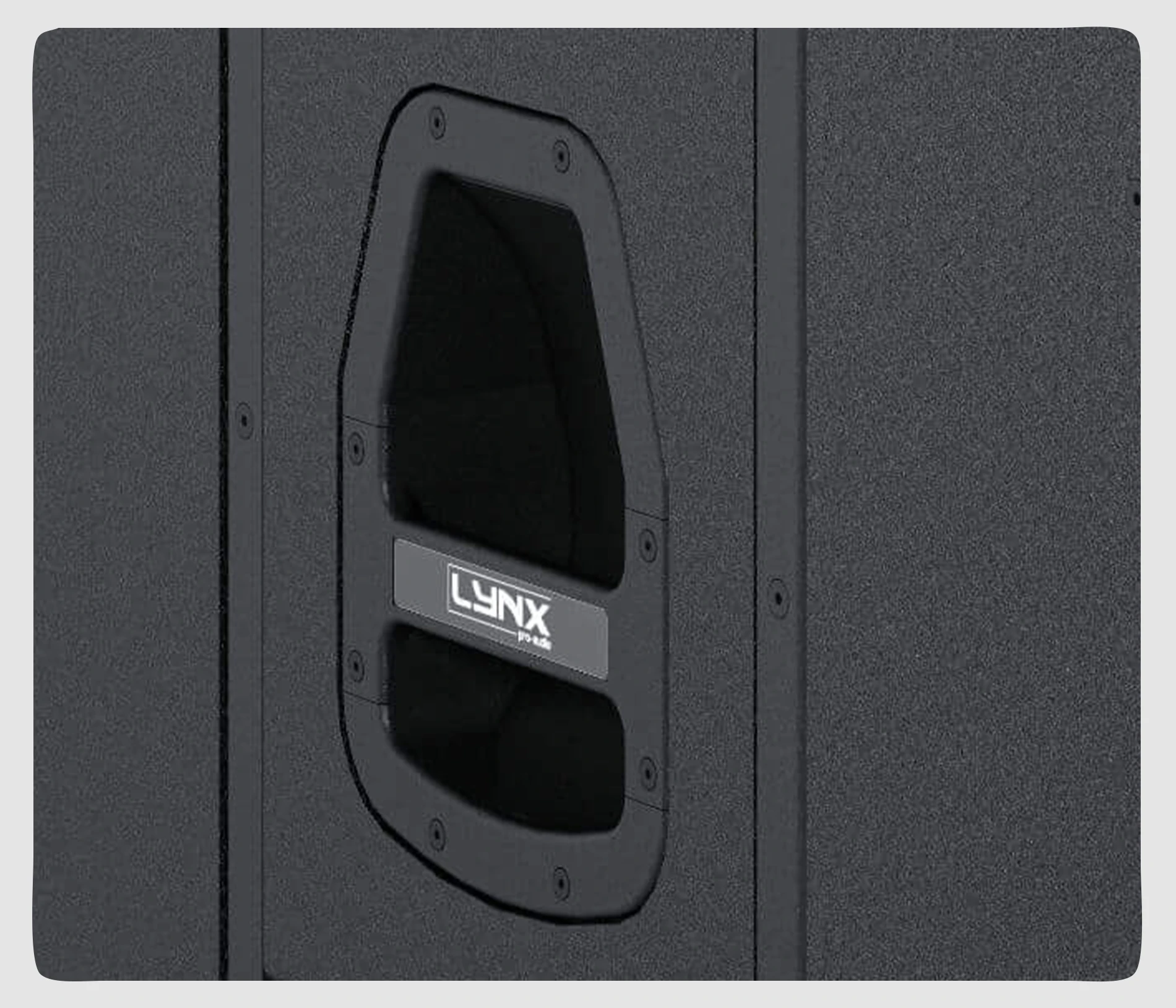

Handles

One ergonomic, die cast handle with firm internal grips is located on each side of the CXA-18S enclosure to facilitate transport, positioning and loading of the cabinets.

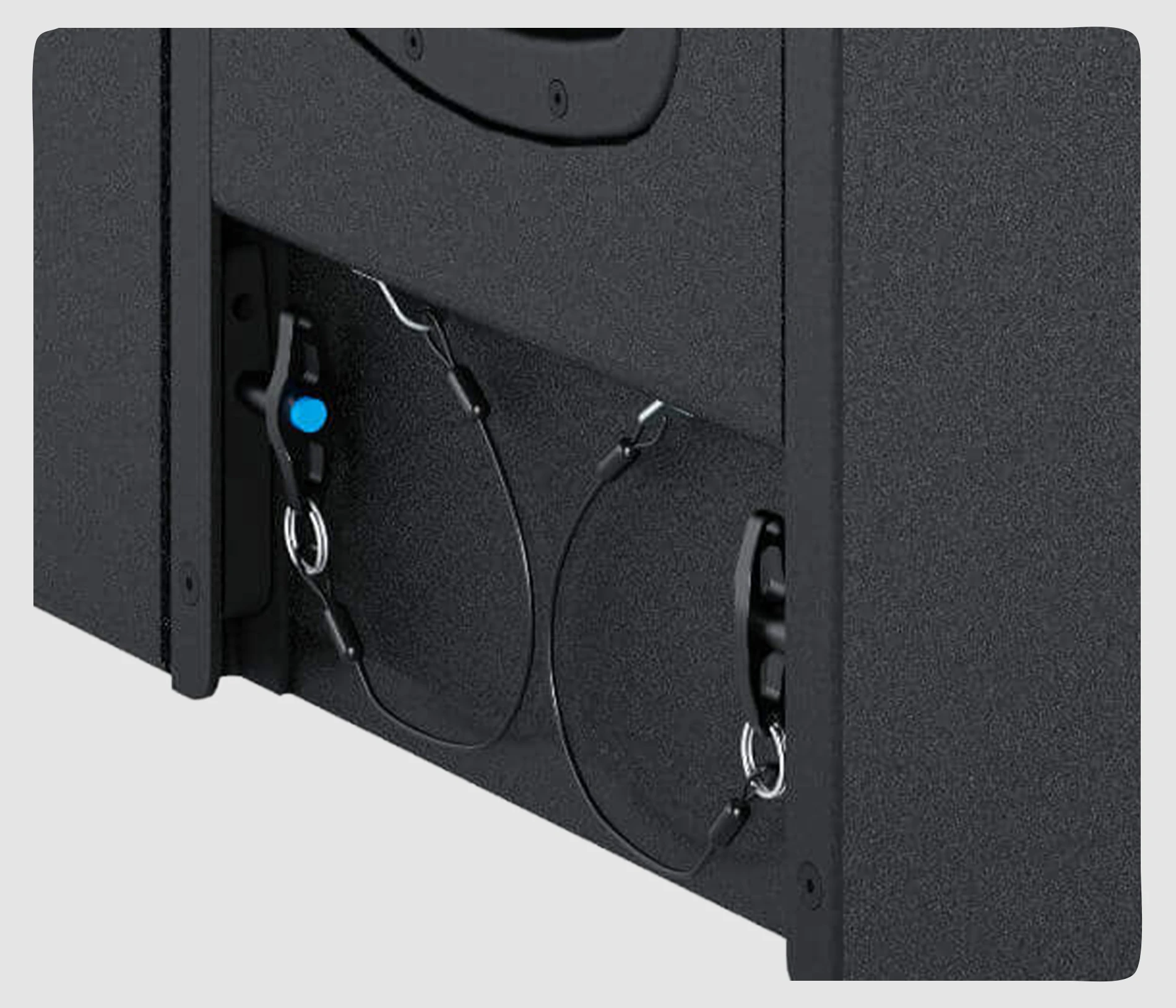

Rigging

Integrated flying plates are located on each side of the enclosure, to link CXA-12 cabinets together with optional splay angles, from between 0° to 6° with 0.5° step increments to create the desired curve.

Accesories for CXA-18S

BALL-PSR0630

Ball pin with thread for CXA-12 and CXA-18S cabinets

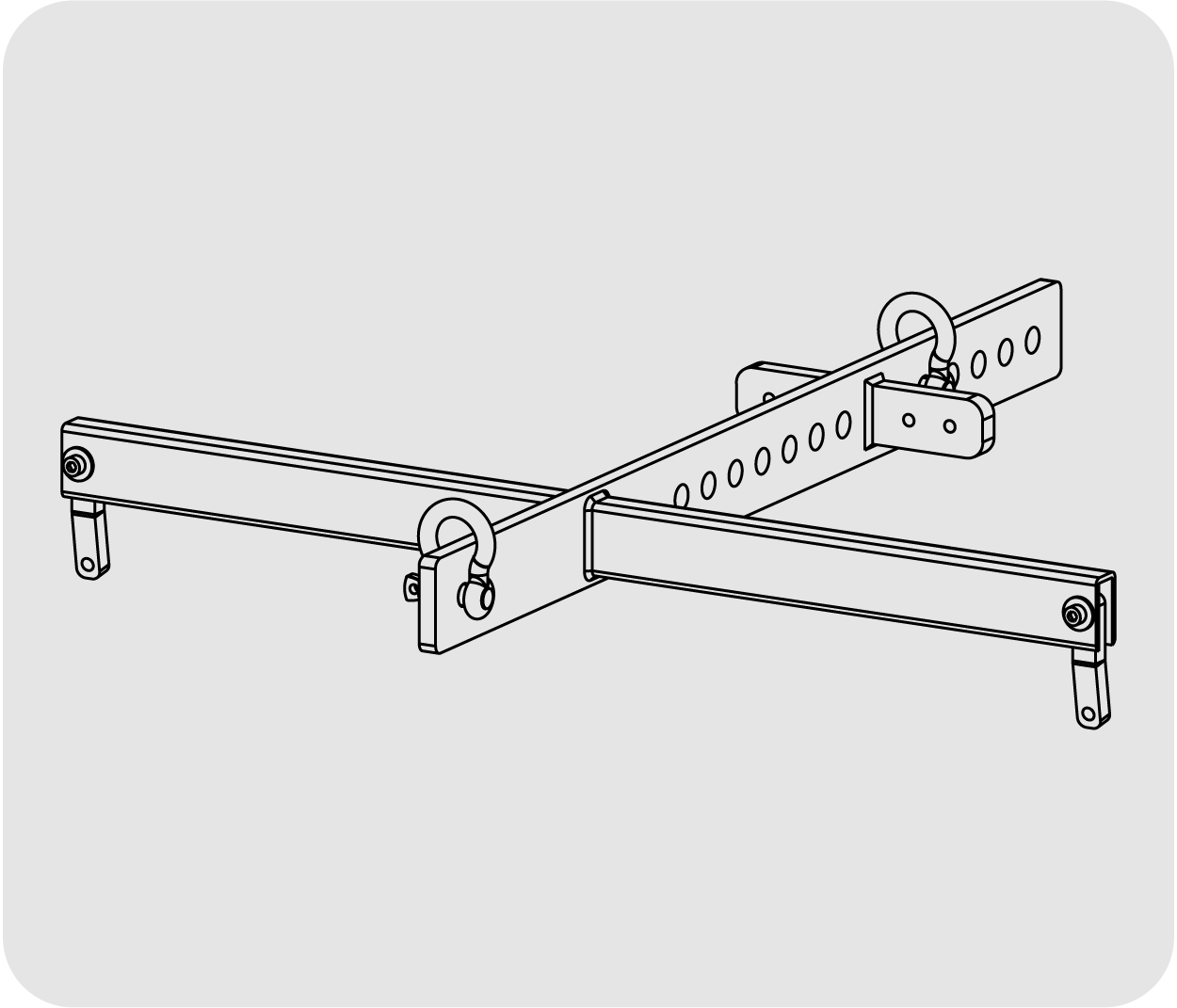

SV-CXA

Flying frame for the CXA-18S with a capacity for rigging of up to 4 cabinets

GR-18WKIT

Four wheel kit

FD-CXA18S

Nylon protection for CXA-18S

DSP configuration

DSP panel configuration

On the back pannel of the cabinet you will find the digital control area. From the compact joystick located below the screen you are able to configure the basic adjustment functions of the internal DSP.

Just move the joystick to select the icons on the left of the screen. You can enter into the following functions: Home, settings, folder, configuration and information. Please note that you must apply the desired configuration in each one cabinet and requires electrical power to work.

If changes are not made the display will automatically dim to avoid unnecessary light in situations where light is not wanted. To re-activate the light simply press the joystick.

The following screens are an example and may vary slightly for each cabinet.

HOME

On the main screen you can see the cabinet’s input and output:

• Input: You can see a vumeter with the input level and a clip signal.

• Output: You have a vumeter with the output level (0 dBu is the amp’s maximum level) You can check the compressor and control the dynamic activity.

SETTINGS

This panel allows you to change the gain, polarity, mute and the delay for the inputs.

You also have the possibility of putting a high pass, changing the type of filter, frequency and order.

FOLDER

The folder screen shows you the name of the preset and its description.

Using the joystick you can change the preset.

CONFIGURATION

This screen is to configurate Ethernet. You can choose automatic or manual.

You can also configure the screen saver.

And here you have the input selection. You can choose between analog or AES3 for channel 1 or channel 2.

INFORMATION

The last screen shows you some general information regarding the cabinet’s components.

Here you can see the cabinet model, its serial number, DSP firmware and hardware versions, amp module model with hardware version, as well as the accelerometer status.

Watch this TUTORIAL to understand how it works:

Install version

CXA-18IN

The CXA-18IN is the install version of the CXA-18S cabinet. This version is specially designed for fixed installations.

Flying frame SV-CXAIN is an unique accessory for this version, it allows you to choose between three different positions to change the array’s inclination in a more easier way.

You will find more information in the manual of the CXA-18S.
