CPS-214 (64 / 96)

DSP integrated coaxial point source

Two models: CPS-214/64 & CPS-214/96

Extremely compact & powerful 3-way, self-powered (6000 W Class-D with PFC), DSP integrated coaxial point source element. Dual high power 14″ neodymium transducers and a unique 2″ Exit throat (HF 1.75″ voice coil/ MF 3.5″ voice coil) coaxial neodymium compression driver.

Two models depending on coverage: CPS-214/64 (60ºH x 40ºV) or CPS-214/96 (90ºH x 60ºV).

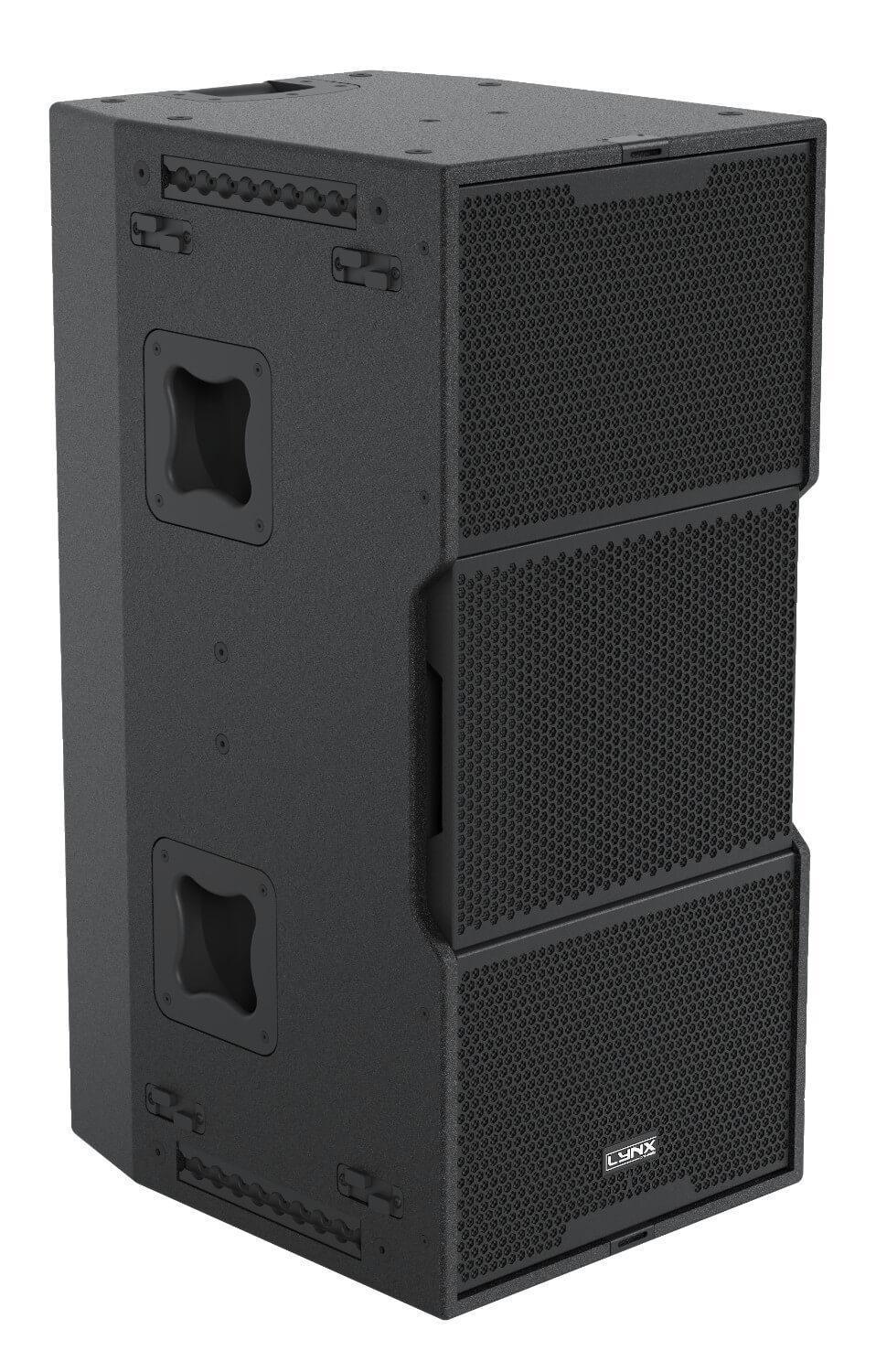

The CPS-214 is a high-output extremely compact and extremely powerful 3-way, self-powered, DSP integrated, symmetrical Coaxial Point Source element designed for large sized touring & fixed installations.

It uses two low distortion 14″ (4″ DUO double layer voice coil) custom speakers for the low frequencies with exclusive Malt Cross cooling technology, FEA optimized neodymium magnet circuit, aluminium demodulating ring and weatherproof cone.

For the mid/high frequencies it uses an ultra light weight 2″ exit throat dual diaphragm coaxial compression driver. The unique voice coil technology employs a light weight copper clad aluminium wire, wound inside and out of the Kapton former to improve heat dissipation, dramatically increasing the acoustic output and reliability of the driver while minimizes the power compression.

The larger annular midrange diaphragm covers the frequency range between 300Hz and 7KHz with a smooth, linear response. The ultra light annular diaphragm for the high frequencies offers exceptional transient response with very high efficiency from 6KHz to 22Khz. With two subsystems in one each driver covers a smaller frequency range for increased power handling, high dynamic and extremely low distortion and delivers excellent phase coherence & perfect time alignment without problems of multi-source interference.

The 6000W 2 channel Class-D amplifier with PFC (Power Factor Correction) offers exceptional efficiency with maximum system performance whilst significantly lowering power consumption. With Thermal, short-circuit and overload protections the system module delivers superior sonic performance. Coupled together with our new generation, 64 bit/96KHz processor the system electronics are yet further guaranteed not only the utmost protection but the best performance.

Designed in-house by Lynx Pro Audio engineers our DSP offers the most recent advances in digital processing such as FIR filters delivering a linear phase & frequency response. The latest 32 bit/96KHZ AD/DA converters make the system one of the most advanced & innovative point source systems on the market resulting in pristine sound quality.

A 2.8″ IPS user interface is located on the enclosure’s back panel and has multifunction joystick control enabling the user to control, select and/or adjust parameters such as cabinet presets, gain, delay and input EQ (see user manual). Two Ethernet ports enable the system to be controlled with the OCS platform for easier alignment, monitoring and processing of the cabinet together with the new Rainbow 3D prediction software delivers a complete system design tool.

The enclosure is made from premium grade birch plywood and finished with a polyurea coating for longer durability & weather protection.

Perfectly suited for:

Live events
Large stadiums / arenas
Auditoriums
Houses of worship
Theatres
Clubs

Extraordinary power-to-size ratio
Unique 2” dual diaphragm compression driver
Integrated Digital processor (64 bit / 96 KHz) with FIR linear phase filtering
FIR linear phase filtering
Ergonomic design in premium birch plywood & finished in polyurea
2.8” IPS display with multifunction joystick control

Components

LF: 2 x 14” (4” voice coil), neodymium magnet, 2000 W (AES).
MF: 3.5” (90mm) voice coil, 150W (AES).
HF: 1.5” (44,4 mm) voice coil, 80W (AES)

Frequency Range

55 Hz – 22 KHz (-6dB)

Coverage

Rotatable 60ºH x 40ºV / 90ºH x 60ºV

Max SPL

Low: 137 dB / 143 dB
Mid/ High: 139.5 dB / 142.6 dB

Power amplifier

6000 W Class D with switching power supply & PFC
Amp: 3000W @4 Ohm
MF/HF Amp: 3000 W @4 Ohm

Processing

Internal Lynx Processor DSPB-FL.
96 KHz / 64 bit double-precision, DSP with FIR filter linear phase

Crossover

Digital: FIR filter 550 Hz / Passive: 6.3 KHz

Control

User control interface with 2.8” IPS screen and multifunction joystick controller

Control connections

USB (DSP programming) / Dual Ethernet port

Input

BAL/UNBAL XLR connectors analog input

AES/EBU digital input optional

Nominal voltage

100 – 240V AC @ 50-60 Hz

Operating voltage

85 – 264V AC

AC Connectors

16A Neutrik powerCON TRUE1 TOP with looping output

Finish

Polyurea coating, high grade resistant paint

Material

15 mm premium birch plywood

Dimensions

900 x 420 x 515 mm (H x W x D)

Weight

49 Kg (108 lbs)

More features

Hardware for CPS-214 (64 / 96)

Enclosure

The CPS-214 cabinet is constructed from 11-ply premium birch plywood (15mm thickness) and finished with polyurea coating

Internal design

The internal structure of the CPS-214 is heavily braced for greater longevity and all parts are assembled on metal inserts with metric screws. The amplification modules & DSP are housed in a separate chamber to the drivers avoiding excessive heat & vibration, thus delivering greater efficiency and reliability.

Rear panel

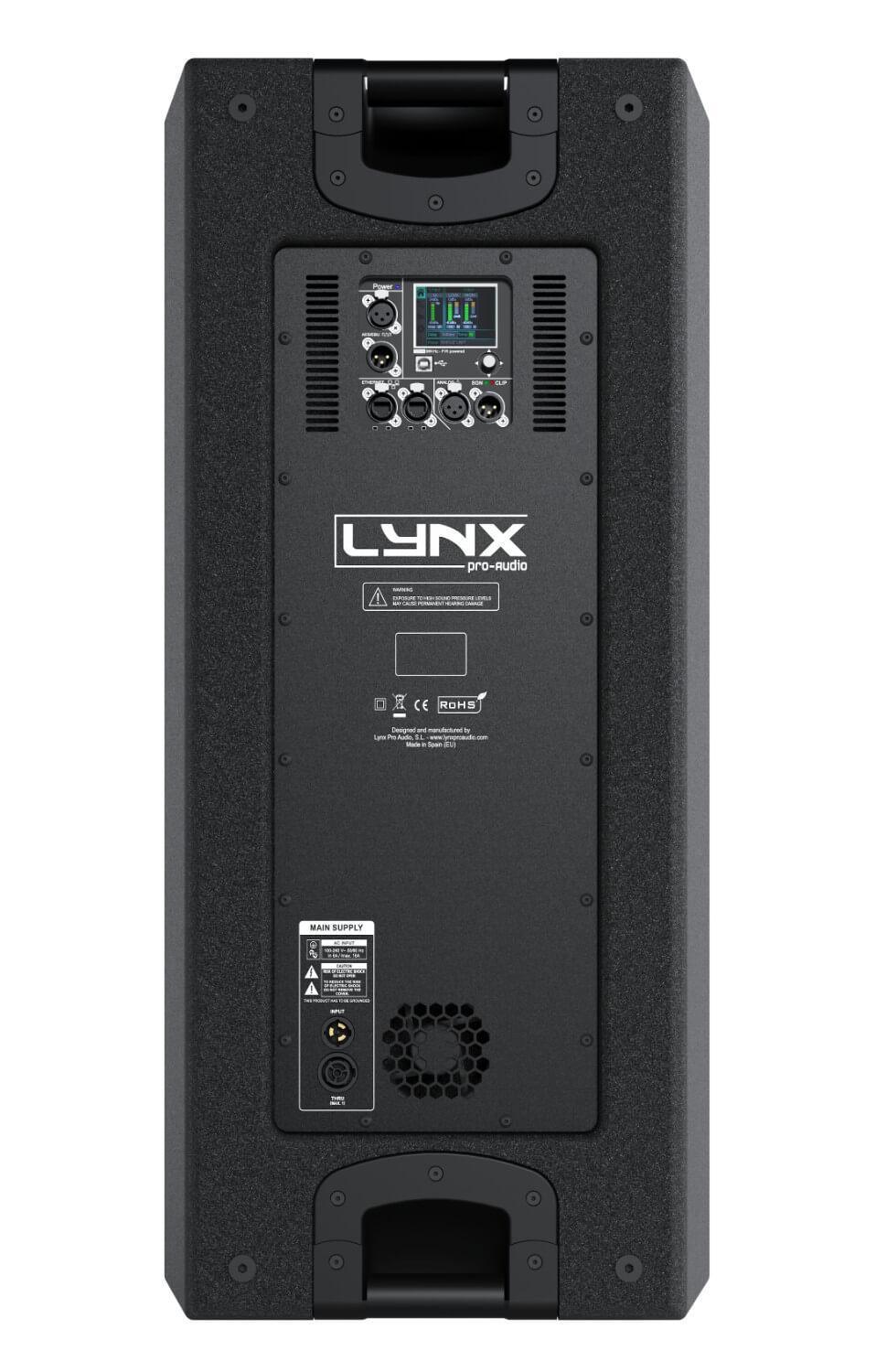

The powder coated steel rear panel contains all connections and houses the CPS-214 amplification modules and DSP, is easily accessible and housed separately from the drivers for increased reliability and efficiency

Grill

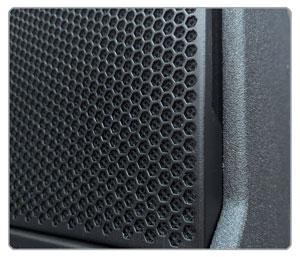

The CPS-214 has three heavy duty, powder coated front grille with a special acoustic rear fabric to protect the transducers against dust and dirt.

Handles

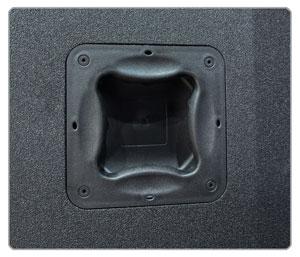

The CPS-214 has six ergonomic handles with firm internal grip to facilitate transport, positioning and loading of the cabinets. Two handles are placed at the top and bottom of the cabinet and four handles are located on the sides.

Rigging

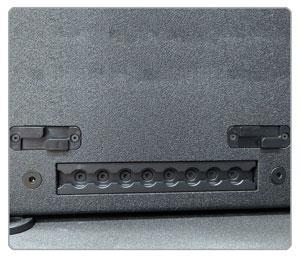

Four heavy duty track are integrated on each side (top and bottom) of the enclosure to facilitate its installation.

Transport

The CPS-214 is easy to transport thanks to its dedicated Dolly. The cabinets lock in 2 points on to the dolly and a protective nylon cover is also available to protect the enclosure and keep it clean on tour.

Accesories for CPS-214 (64 / 96)

AGR-10

M10 eye bolt for CPS-214

SC-FC1

Lightweight install stud for CPS-214

UBR-HCPS214

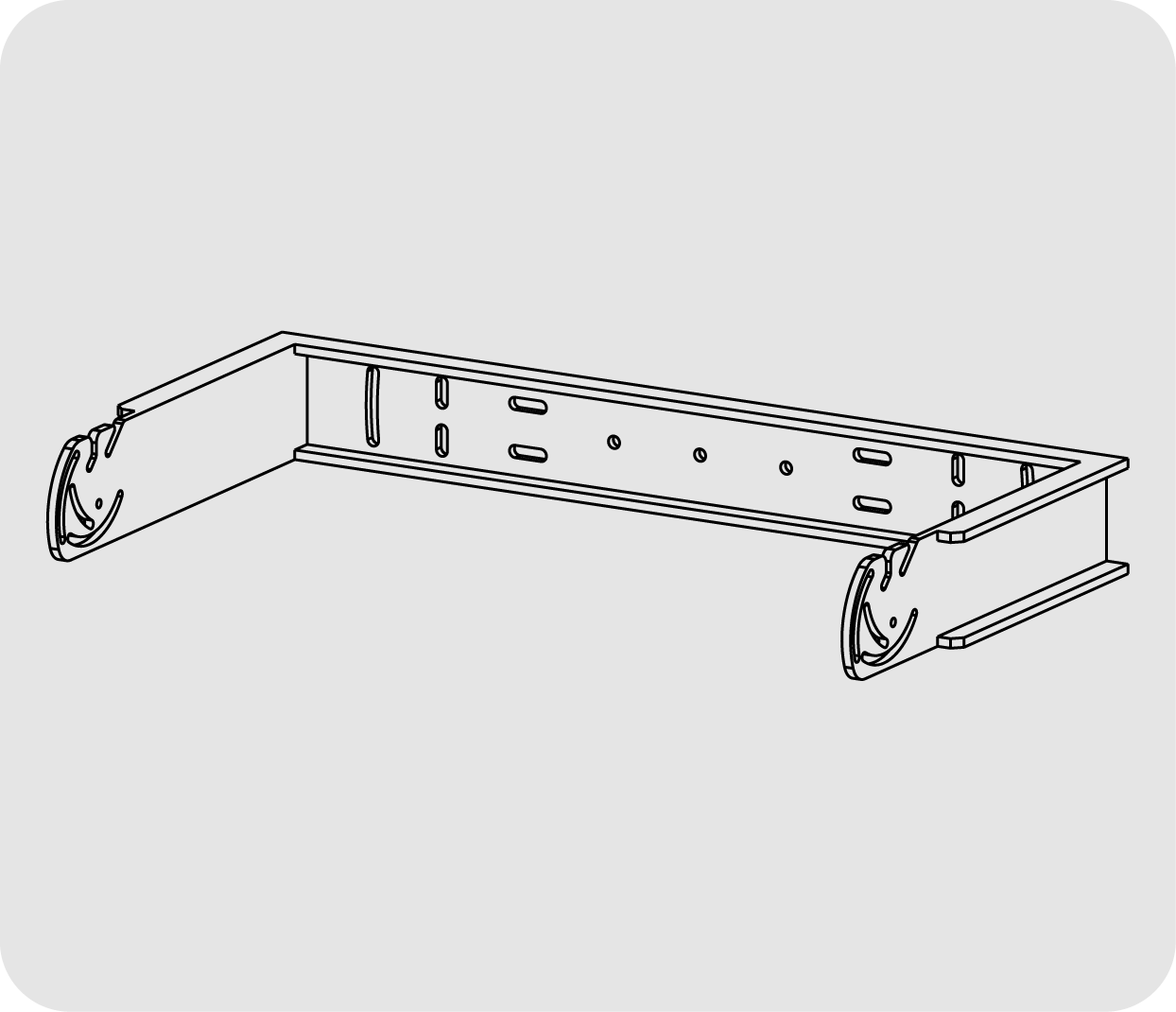

Horizontal U bracket for CPS-214

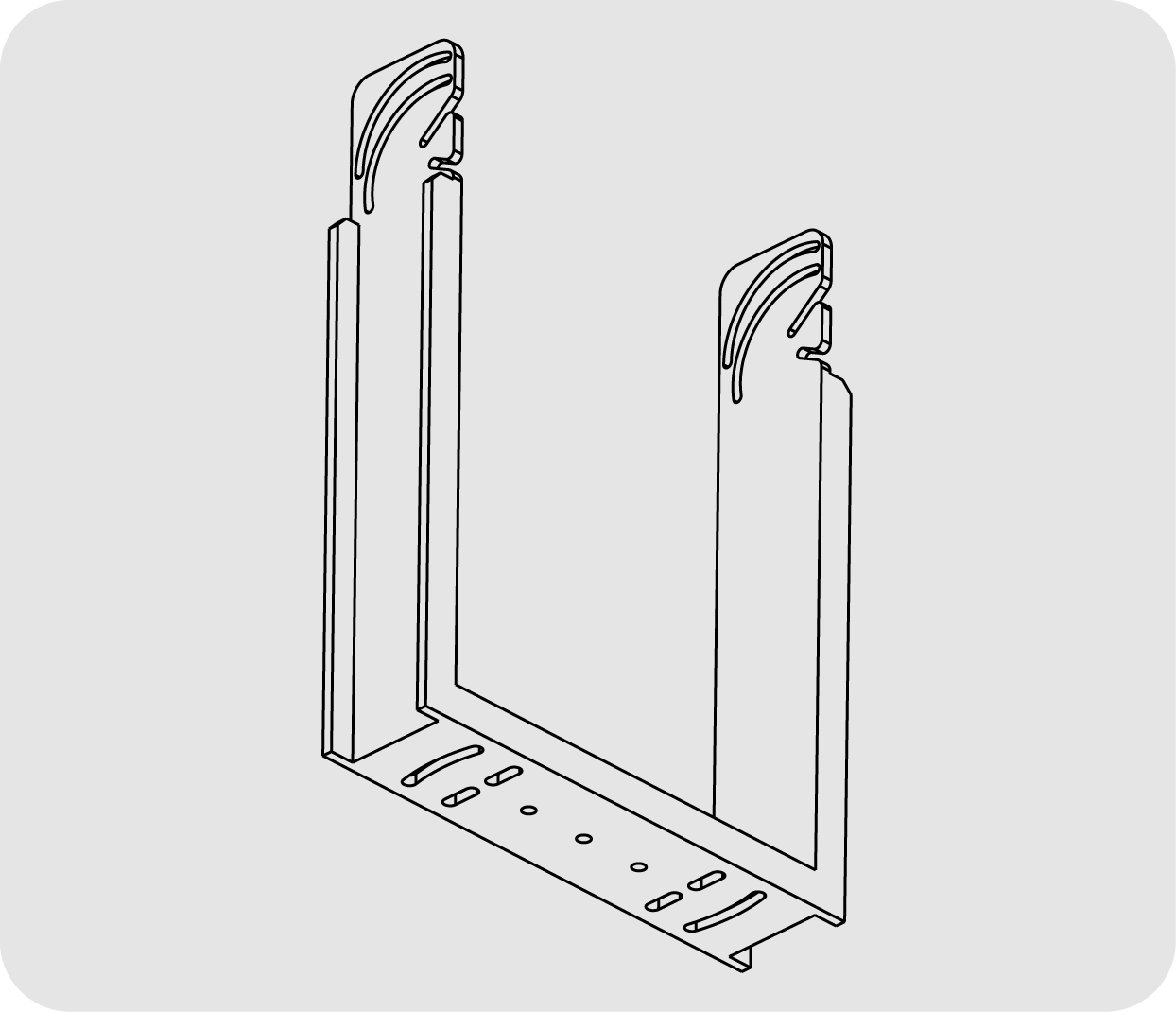

UBR-VCPS214

Vertical U bracket for CPS-214

CA-CPS214

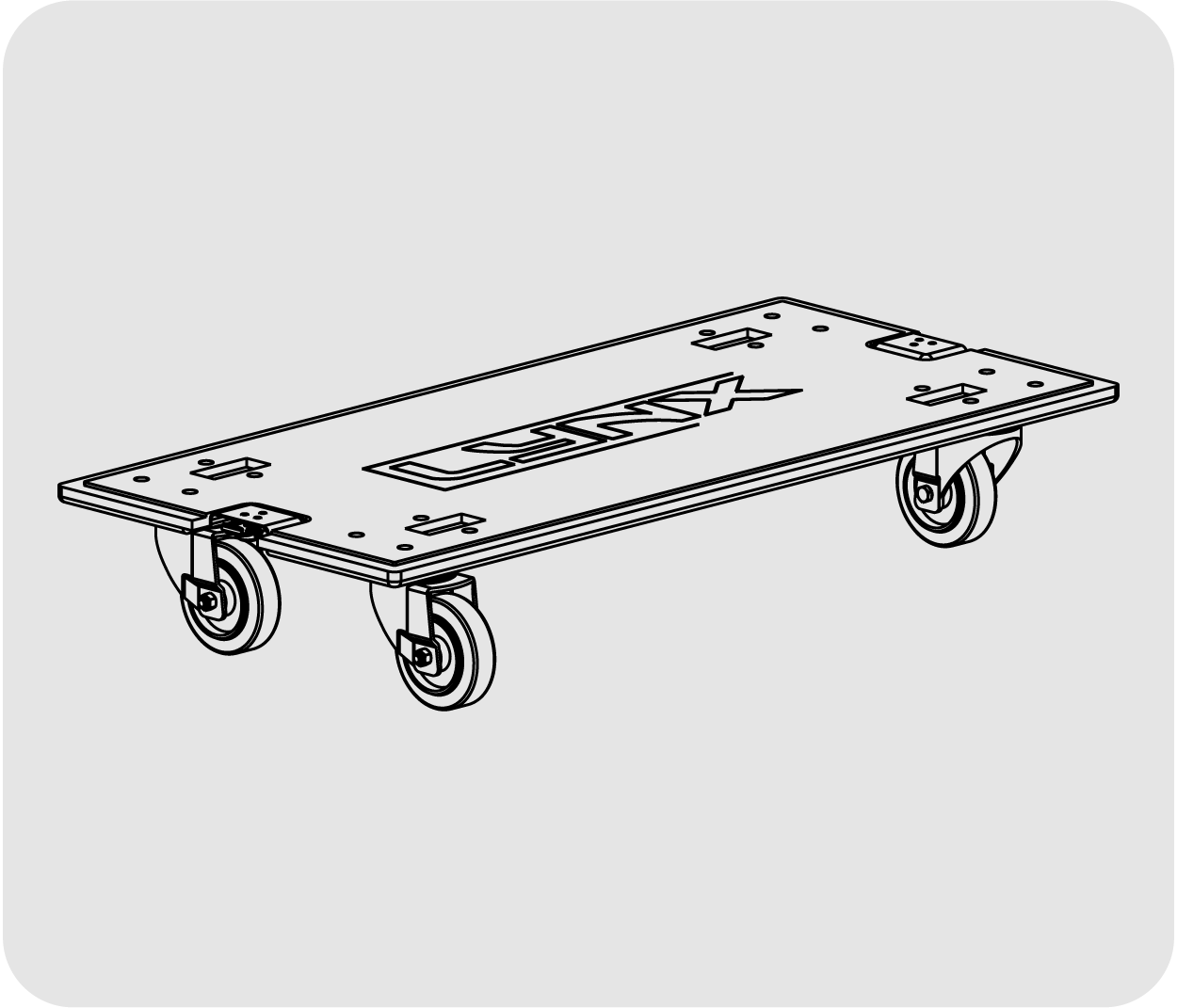

Removable front transport dolly for CPS-214

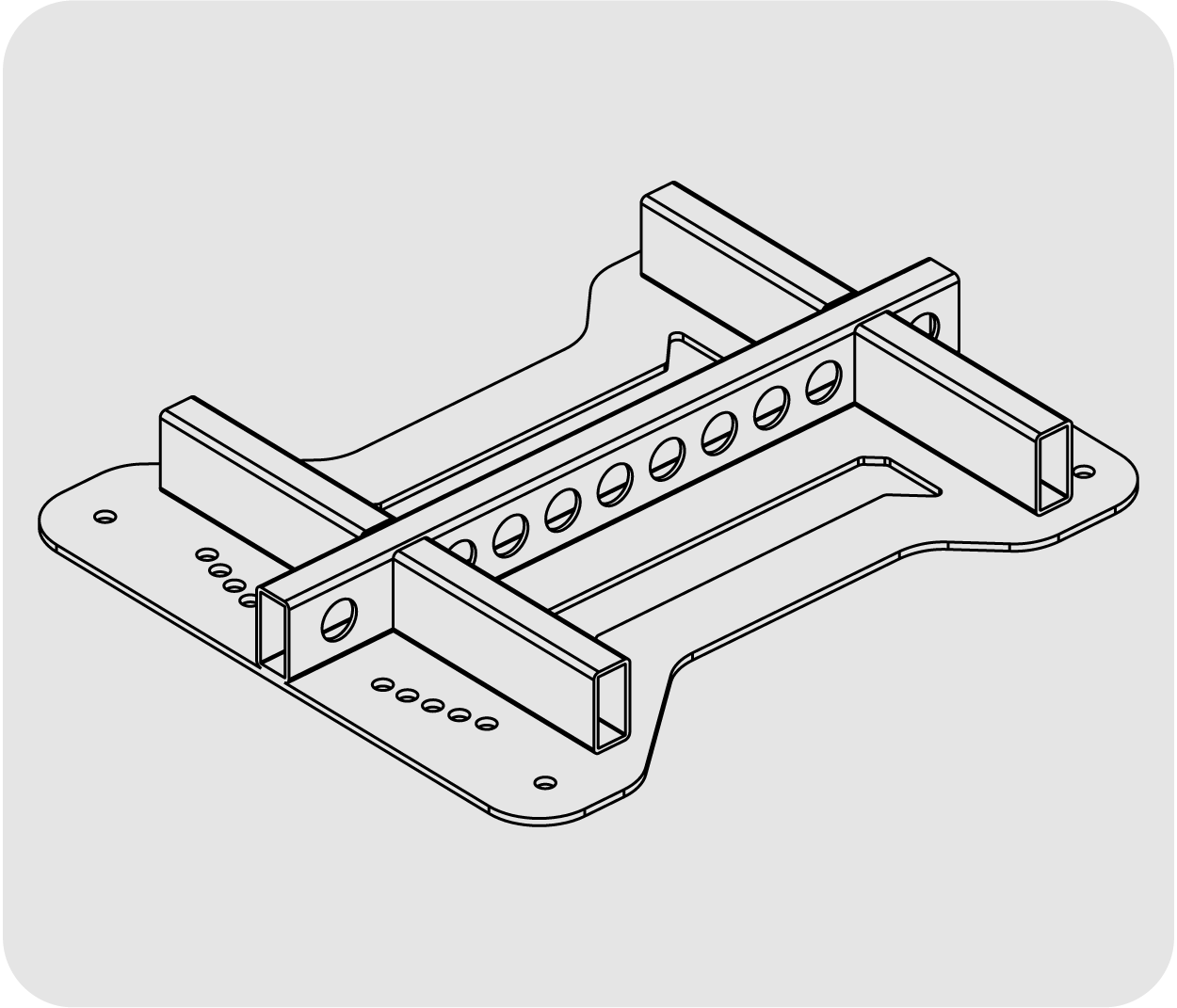

SV-CPS214

Flying frame for CPS-214

FD-1CPS214NL

Rain cover for CPS-214

FD-CPS214

Nylon protection for CPS-214

DSP configuration

DSP panel configuration

On the back pannel of the cabinet you will find the digital control area. From the compact joystick located below the screen you are able to configure the basic adjustment functions of the internal DSP.

Just move the joystick to select the icons on the left of the screen. You can enter into the following functions: Home, settings, folder, configuration and information. Please note that you must apply the desired configuration in each one cabinet and requires electrical power to work.

If changes are not made the display will automatically dim to avoid unnecessary light in situations where light is not wanted. To re-activate the light simply press the joystick.

The following screens are an example and may vary slightly for each cabinet.

HOME

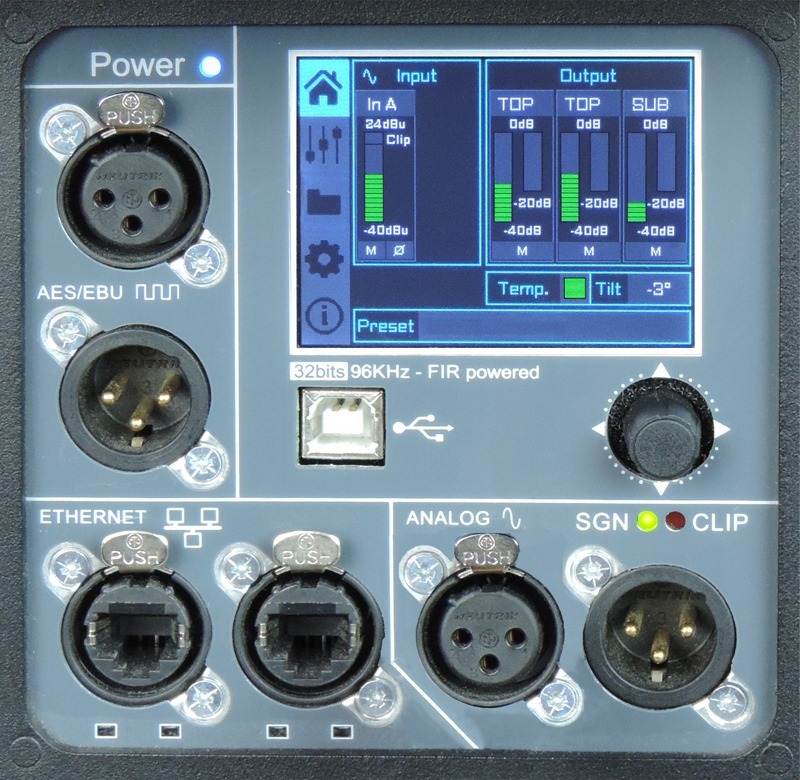

On the main screen you can see the cabinet’s input and output:

• Input: You can see a vumeter with the input level and a clip signal.

• Output: You have a vumeter with the output level (0 dBu is the amp’s maximum level) You can check the compressor and control the dynamic activity.

SETTINGS

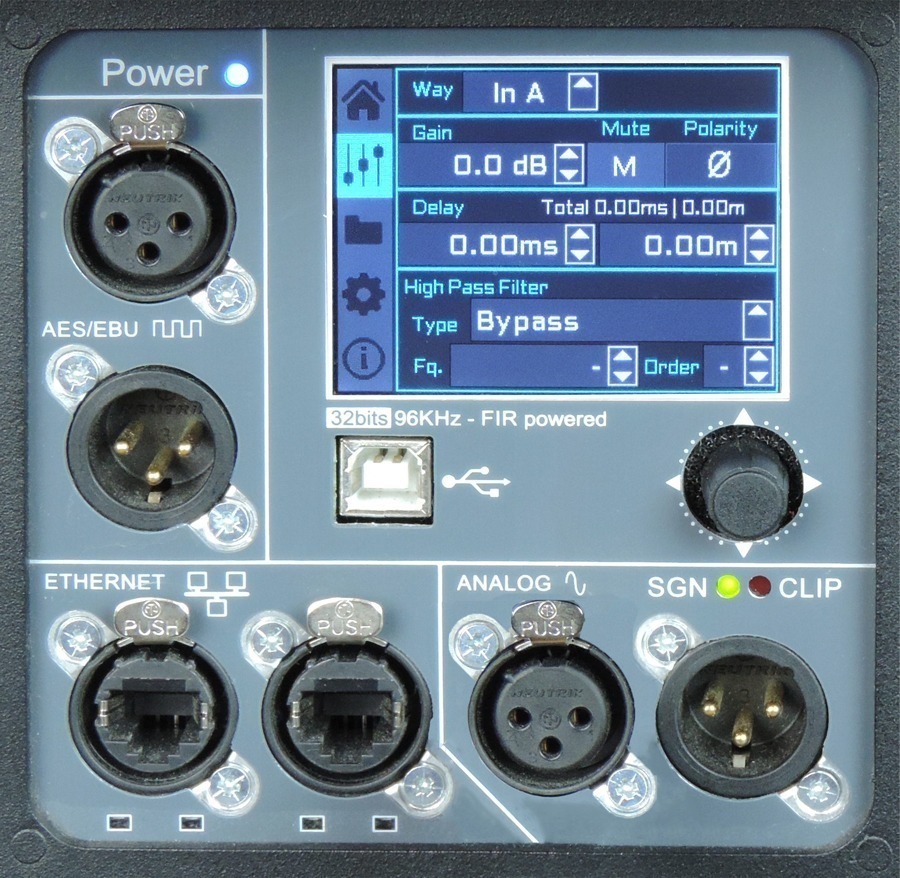

This panel allows you to change the gain, polarity, mute and the delay for the inputs.

You also have the possibility of putting a high pass, changing the type of filter, frequency and order.

FOLDER

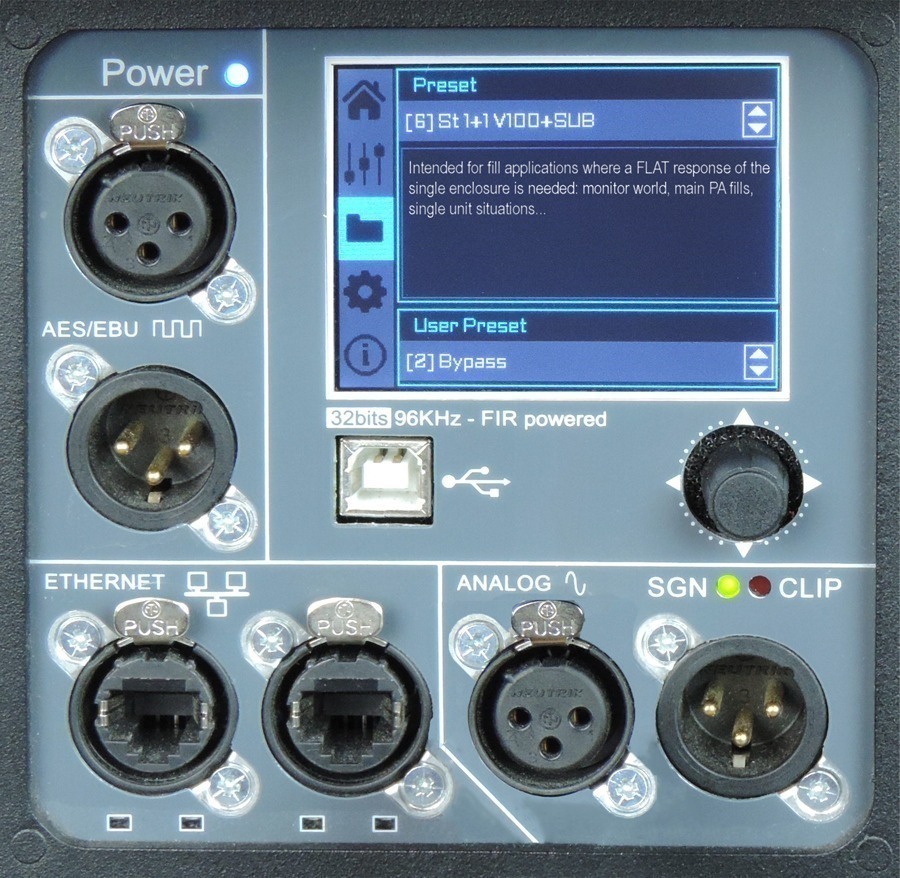

The folder screen shows you the name of the preset and its description.

Using the joystick you can change the preset.

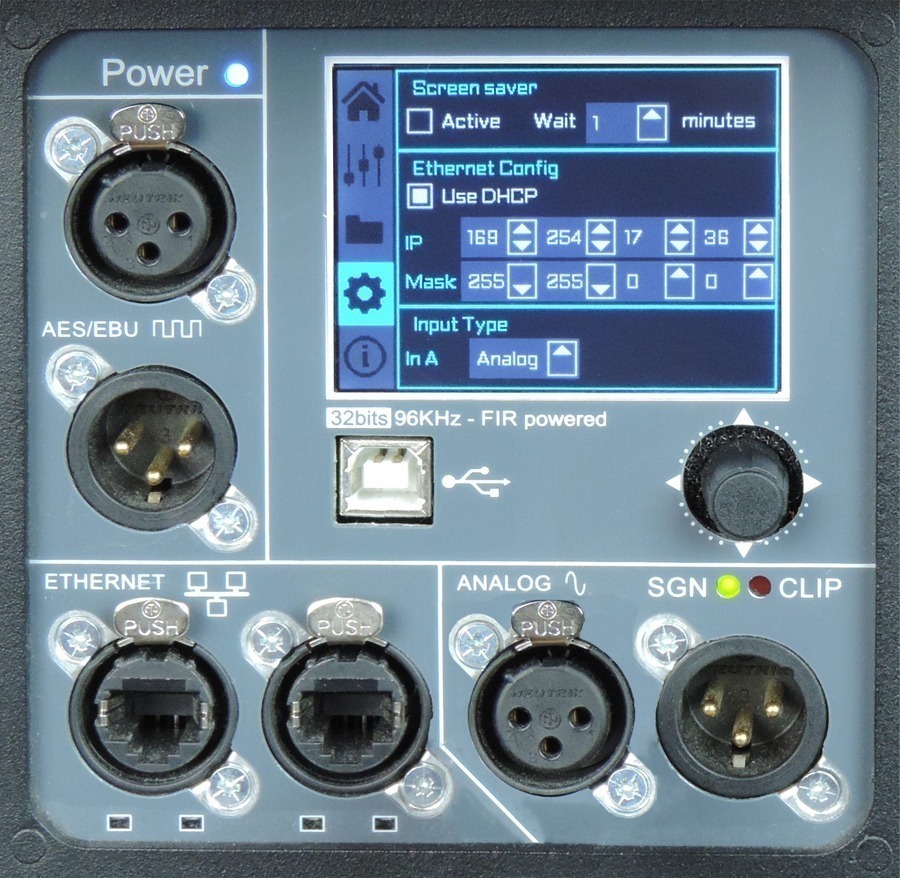

CONFIGURATION

This screen is to configurate Ethernet. You can choose automatic or manual.

You can also configure the screen saver.

And here you have the input selection. You can choose between analog or AES3 for channel 1 or channel 2.

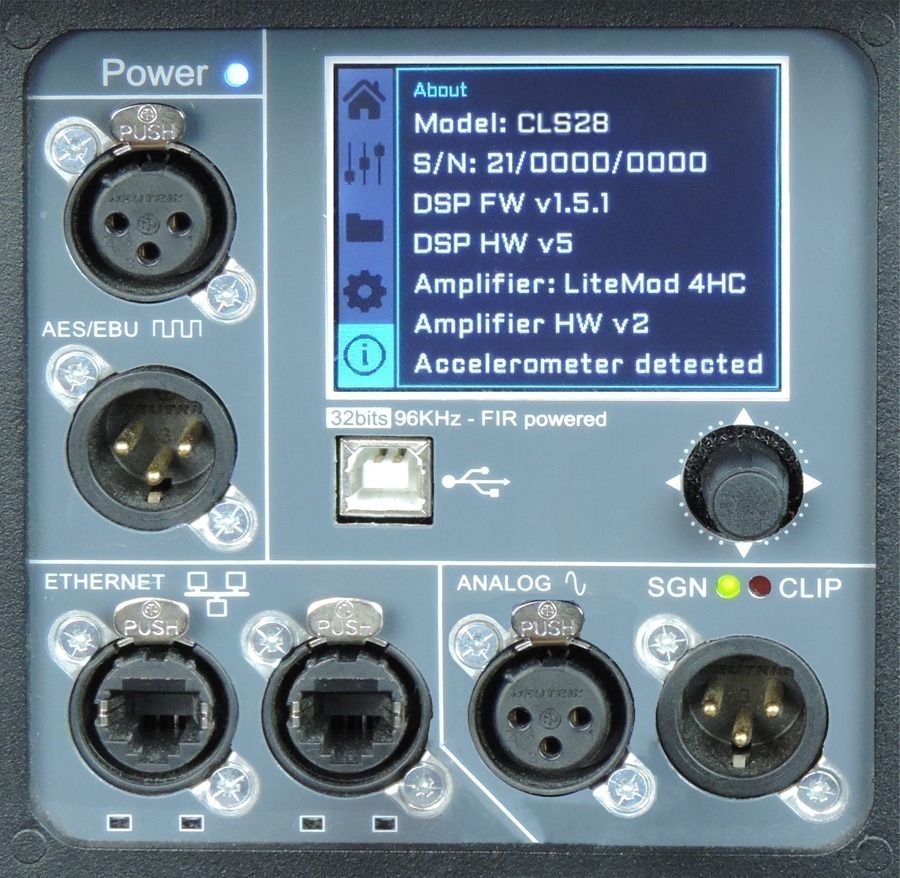

INFORMATION

The last screen shows you some general information regarding the cabinet’s components.

Here you can see the cabinet model, its serial number, DSP firmware and hardware versions, amp module model with hardware version, as well as the accelerometer status.

Watch this TUTORIAL to understand how it works:

Install version

CPS-214IN

The CPS-214IN is the install version of the CPS-214 cabinet. This version is specially designed for fixed installations.

The Installation version is available in active/passive version. It has a ferrite driver, it doesn’t have handles and is the only version available in RAL colour on demand.
