CPS-18S

Subwoofer unit in band pass configuration

Compact & extremely powerful, self-powered (3000 W Class-D with PFC), DSP integrated subwoofer unit in band pass configuration. 18″ (4″ voice coil) neodymium transducer.

The CPS-18S is a high-output, extremely powerful sub-bass element designed to be used in unison with the coaxial CPS-214 point source module.

It uses one low distortion 18″ (4″ QUATTRO in/out copper voice coil) custom speaker with FEA optimized ceramic magnet circuit and Exclusive Malt Cross Technology cooling system. It implements Exclusive NCR (Neck Coupling Reinforcement) and is optimized for band pass configuration.

The extra strong, specially designed internal wooden reinforcements reduce unwanted vibrations eliminating any noise, lowering distorsion and delivering a clear sound. At the same time, the bass port is designed with a flare to eliminate any turbulence caused by sharp edges in the sound waves path.

The 3000W Class-D amplifier with PFC (Power Factor Correction) offers exceptional efficiency with maximum system performance whilst significantly lowering power consumption. With Thermal, short-circuit and overload protections the system module delivers an outstanding sonic performance. Coupled together with our new generation, 64 bit/96KHz processor the system electronics are yet further guaranteed not only the utmost protection but the best performance.

Designed in-house by Lynx Pro Audio engineers our DSP offers the most recent advances in digital processing, delivering a linear phase & frequency response. The latest 32 bit/96KHZ AD/DA converters make the system one of the most advanced & innovative subwoofers on the market resulting in superior sound quality.

A 2.8″ IPS user interface is located on the enclosure’s back panel and has multifunction joystick control enabling the user to control, select and/or adjust parameters such as cabinet presets, gain, delay and input EQ (see user manual).

Two Ethernet ports enable the system to be controlled with the OCS platform for easier alignment, monitoring and processing of the array and together with the new Rainbow 3D prediction software delivers a complete system design tool.

The enclosure is made from premium grade birch plywood and finished with a polyurea coating for longer durability & weather protection.

Perfectly suited for:

Live events
Large stadiums / arenas
Auditoriums
Houses of worship
Theatres
Clubs
Low frequency complement for CPS-214

Extraordinary power-to-size ratio
18″ neodymium transducer
Band pass configuration
Integrated Digital Processor (64 bit / 96 KHz) with FIR linear phase filtering
Ergonomic design in premium birch plywood & finished in polyurea
2.8″ IPS display with multifunction joystick control

Components

LF: 1 x 18″ (4″ QUATTRO in/out copper voice coil), waterproof cone with treatment for both sides

Frequency Range

35 Hz – 100 Hz (-6dB)

Coverage

QUASI omnidirectional

Max SPL

132 dB / 138 dB

Power amplifier

3000 W Class D with switching power supply & PFC

Processing

Internal Lynx Processor DSPB-FL.
96 KHz / 64 bit double-precision, DSP with FIR filter linear phase

Configuration

6th Order Band Pass Subwoofer

Control

User control interface with 2.8” IPS screen and multifunction joystick controller

Control connections

USB (DSP programming) / Dual Ethernet port

Input

BAL/UNBAL XLR connectors analog input

AES/EBU digital input optional

Nominal voltage

100 – 240V AC @ 50-60 Hz

Operating voltage

85 – 264V AC

AC Connectors

16A Neutrik powerCON TRUE1 TOP with looping output

Finish

Polyurea coating, high grade resistant paint

Material

15 mm premium birch plywood

Dimensions

600 x 900 x 750 mm (H x W x D)

Weight

62 Kg (136.6 lbs)

More features

Hardware for CPS-18S

Enclosure

The CPS-18S cabinet is constructed from 11-ply premium birch plywood (15mm thickness). The enclosure is finished with polyurea coating.

Internal design

The internal structure of the CPS-18S is heavily braced for greater longevity and all parts are assembled on metal inserts with metric screws. The amplification modules & DSP are housed in a separate chamber to the drivers avoiding excessive heat & vibration, thus delivering greater efficiency and reliability.

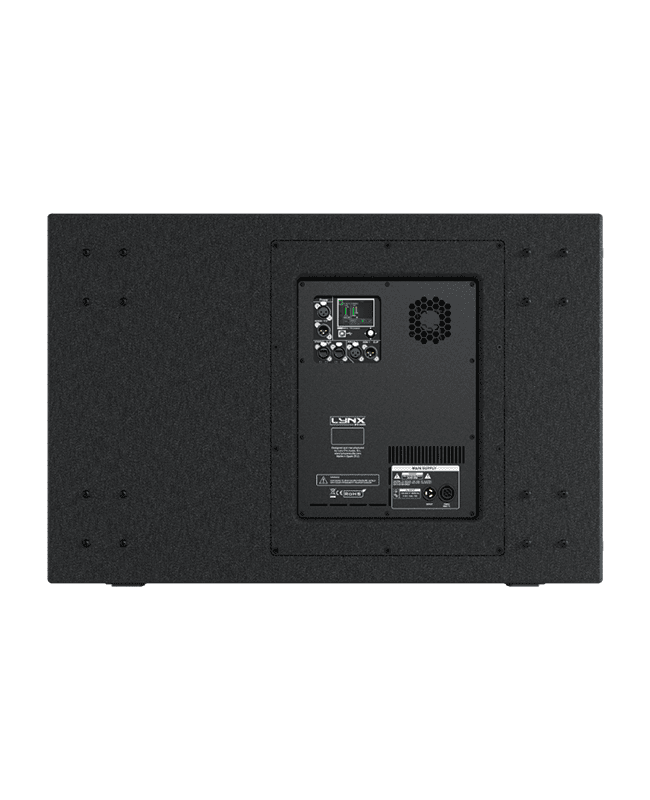

Rear panel

The powder coated steel front panel contains connections to power and signal for cardioid operation.

Grill

The CPS-18S has two heavy duty, powder coated front grille with a special acoustic rear fabric to protect the transducers against dust and dirt.

Handles

The CPS-18S has six ergonomic handles with firm internal grip, three on each side of the enclosure, to facilitate transport, positioning and loading of the cabinets.

Transport

The CPS-18S has a transport dolly for CPS-18S enclosure.

Accesories for CPS-18S

CA-CPS18S

Removable front transport dolly for CPS-18S

FD-1CPS18SNL

Rain cover for CPS-18S

FD-CPS18S

Nylon cover for CPS-18S

DSP configuration

DSP panel configuration

On the back pannel of the cabinet you will find the digital control area. From the compact joystick located below the screen you are able to configure the basic adjustment functions of the internal DSP.

Just move the joystick to select the icons on the left of the screen. You can enter into the following functions: Home, settings, folder, configuration and information. Please note that you must apply the desired configuration in each one cabinet and requires electrical power to work.

If changes are not made the display will automatically dim to avoid unnecessary light in situations where light is not wanted. To re-activate the light simply press the joystick.

The following screens are an example and may vary slightly for each cabinet.

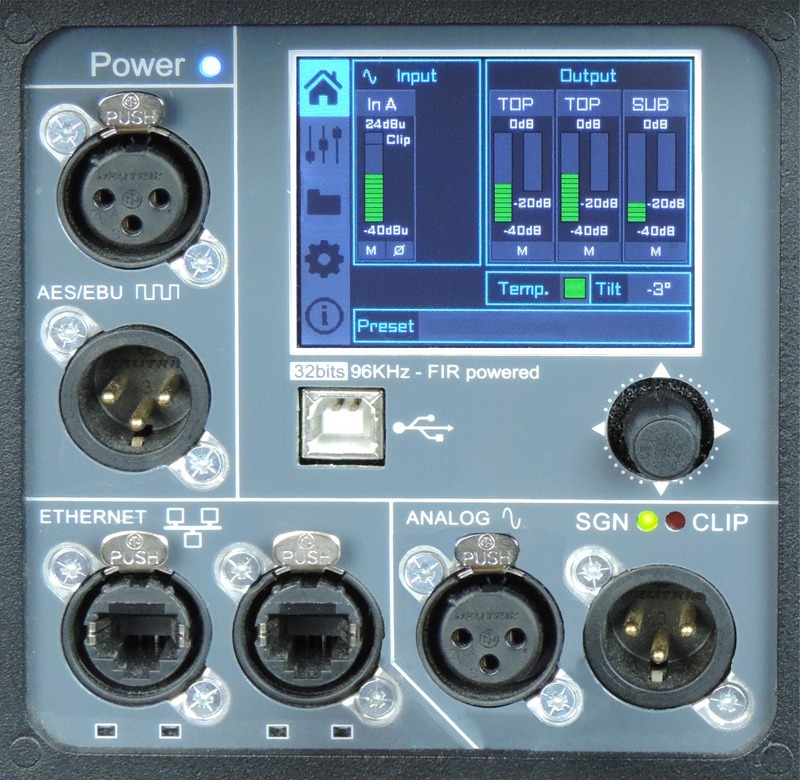

HOME

On the main screen you can see the cabinet’s input and output:

• Input: You can see a vumeter with the input level and a clip signal.

• Output: You have a vumeter with the output level (0 dBu is the amp’s maximum level) You can check the compressor and control the dynamic activity.

SETTINGS

This panel allows you to change the gain, polarity, mute and the delay for the inputs.

You also have the possibility of putting a high pass, changing the type of filter, frequency and order.

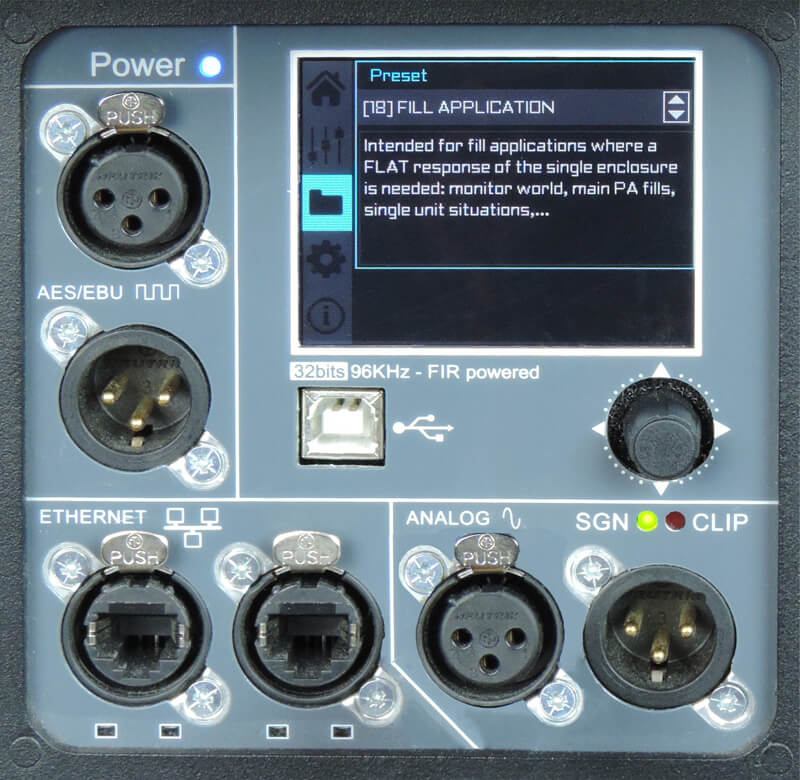

FOLDER

The folder screen shows you the name of the preset and its description.

Using the joystick you can change the preset.

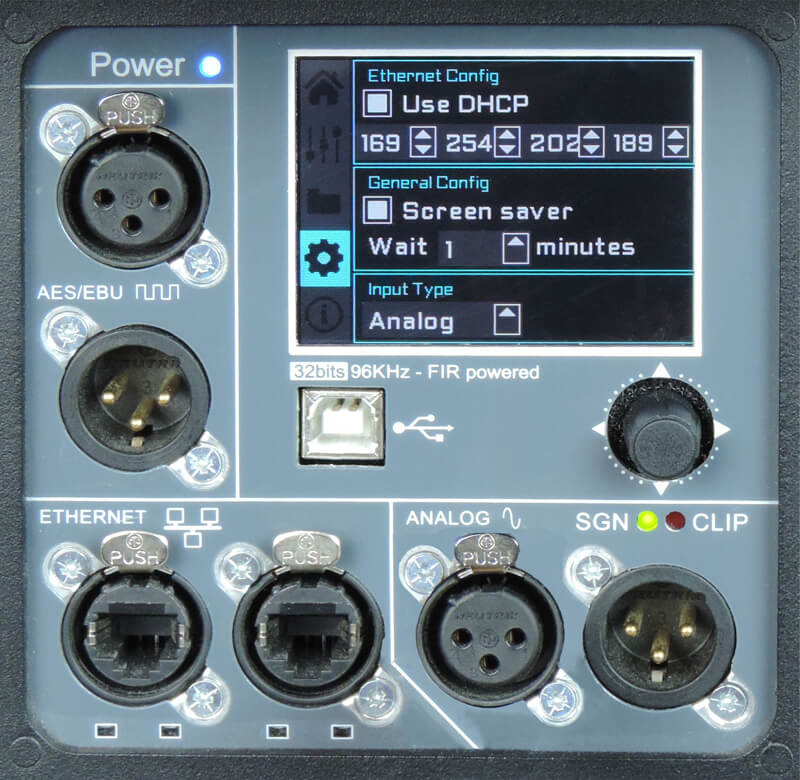

CONFIGURATION

This screen is to configurate Ethernet. You can choose automatic or manual.

You can also configure the screen saver.

And here you have the input selection. You can choose between analog or AES3 for channel 1 or channel 2.

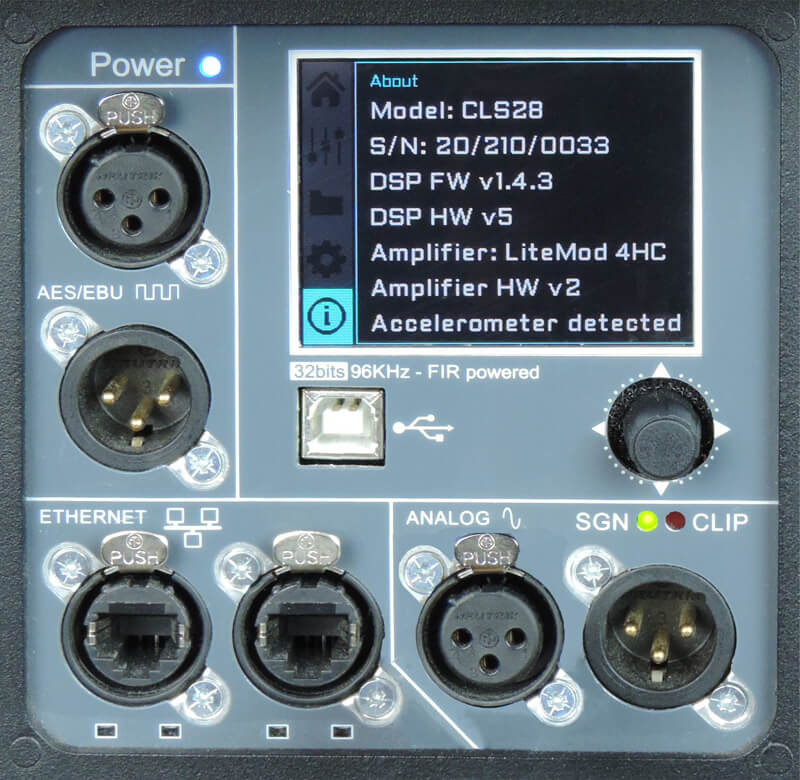

INFORMATION

The last screen shows you some general information regarding the cabinet’s components.

Here you can see the cabinet model, its serial number, DSP firmware and hardware versions, amp module model with hardware version, as well as the accelerometer status.
