KR-10

Club system for KTV and karaoke rooms

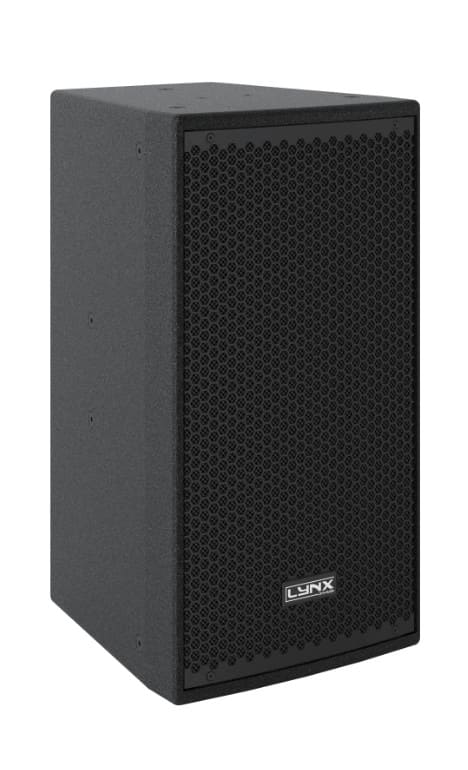

Compact, two-way passive cabinet. Consists of a 10” (2” voice coil) LF transducer and a 1” HF driver mounted on a 90º x 60º rotatable horn.

The KR-10 is a compact, two-way passive cabinet. Consists of a 10” (2.5” voice coil) LF transducer with Double Asymmetric Rolls Technology (DAR) and waterproof cone. The 1” HF compression driver delivers excellent sonic quality. It has an exceptional dynamic range and produces even the most complex signals with depth and definition and is mounted on a 90º x 60º rotatable horn.

Ideal for a wide range of fixed installation applications, such as KTV / Karaoke rooms, conference halls, houses of worship, as well as discos and clubs.

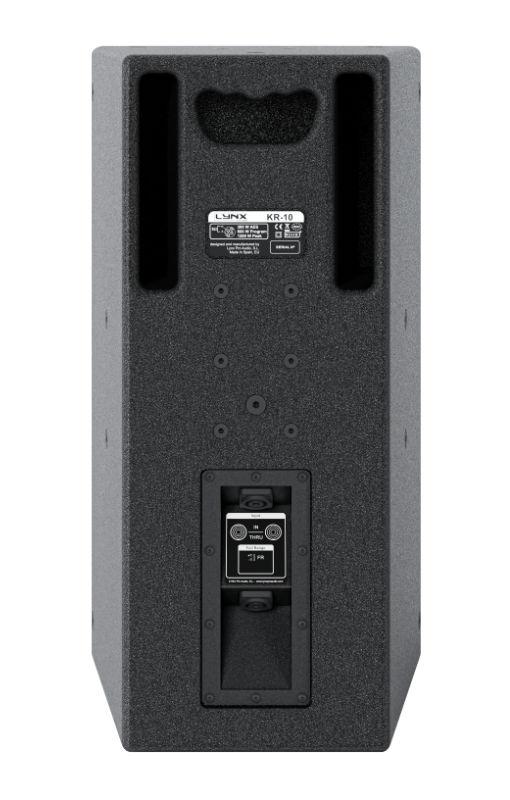

The double port located at the rear of the enclosure creates increased bass frequency response. When installed close to a wall, it creates a reflection that extends the low frequency response of the system, creating extra bass boost.

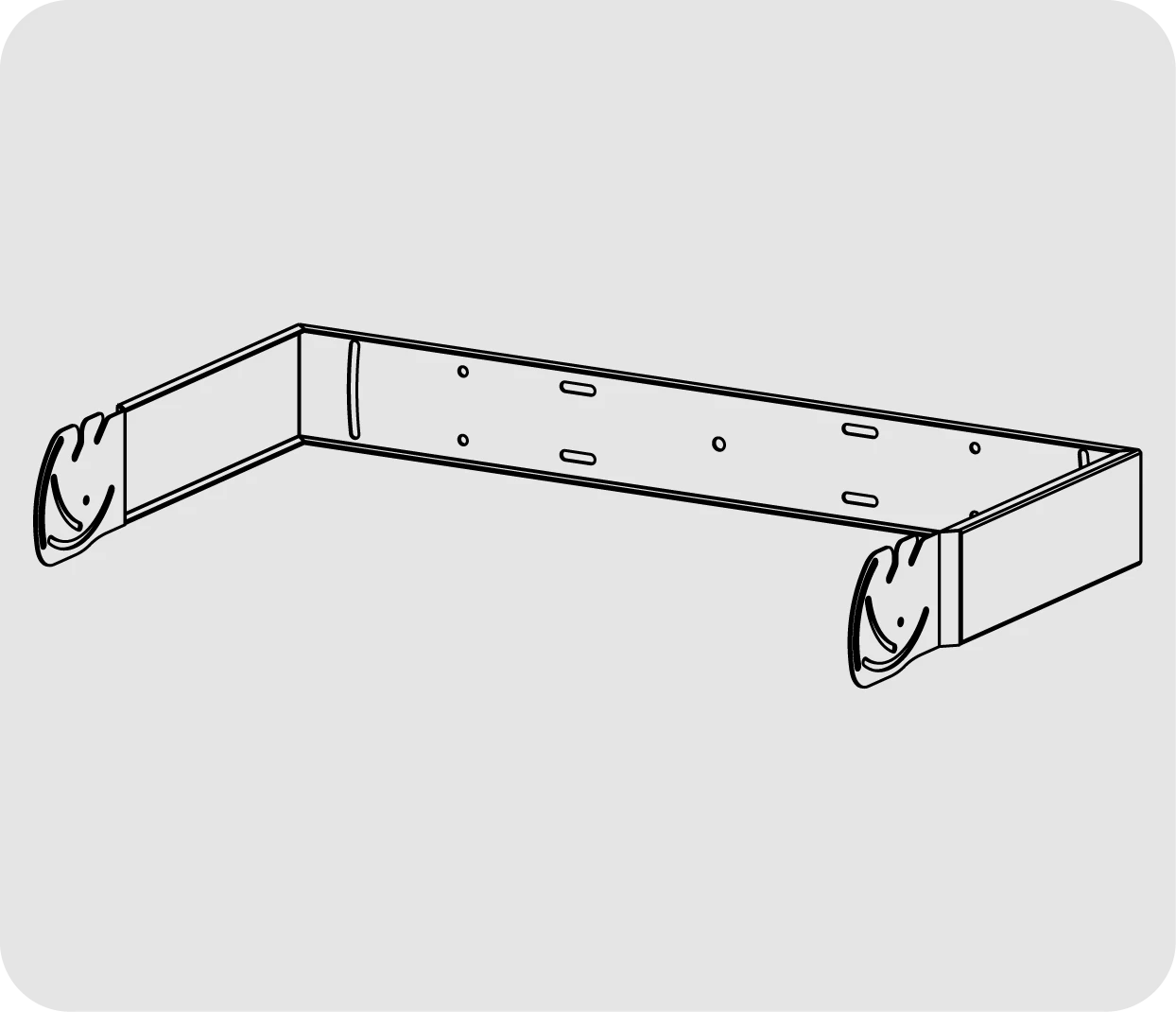

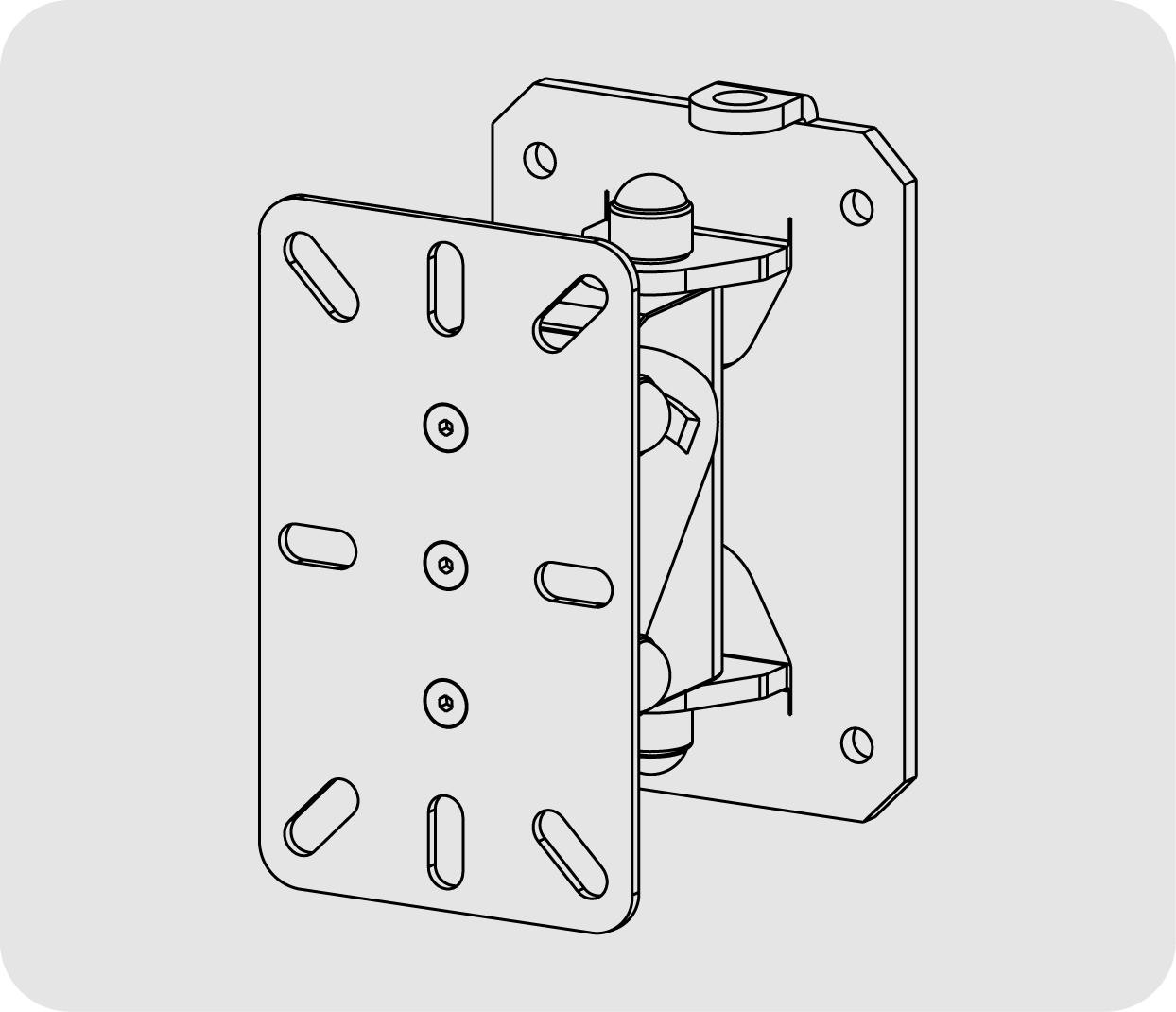

Constructed from 15 mm premium quality birch plywood, giving them greater durability. A wide range of dedicated accessories allows the installation of these loudspeakers in all types of set-ups: ceiling or wall mounted, on a speaker stand or as a satellite with a subwoofer.

Although this cabinet can be used without a processor, the best performance is achieved when using our presets, optimised for LUKA processors and GTX amplifiers. Please note that using the cabinet without our recommended processors or amplifiers may affect the product warranty.

Perfectly suited for:

Clubs & Bar installations
KTV & Karaoke rooms
Houses of worship
Public address
Multi media spaces
Sound reinforcement

Specialized Performance: Two-way passive system optimized for KTV rooms, conferences, and club installations.
Quality Components: Features a 10″ transducer (2.5″ voice coil) with Double Asymmetric Roll (DAR) technology and a 1″ compression driver.
Acoustic Quality: 122 dB Max SPL (128 dB peak) with a frequency range from 65 Hz to 22 KHz.
Bass Reinforcement: Rear twin-resonator design that utilizes wall reflections to extend low-frequency response and provide extra punch.
Flexible Dispersion: Rotatable horn providing 90º x 60º coverage for precise adjustment in both vertical and horizontal setups.
Durable Construction: Built from 15 mm premium MDF finished in high-resistance polyurea coating with multiple rigging points.

Components

LF: 10” speaker, 2.5” (50 mm) fiber glass former and aluminium winding voice coil, waterproof cone with treatment on both sides
HF: 1” exit throat (38 mm) voice coil, BMS annular diaphgram driver

Frequency Range

65 Hz – 22 KHz (-10dB)

Sensitivity

96 dB

Max SPL/Peak

122 dB / 128 dB peak

Rated Power

300W AES (600W program, 1200W peak)

Coverage angle

90º x 60º rotatable

Nominal Impedance

8 Ω
