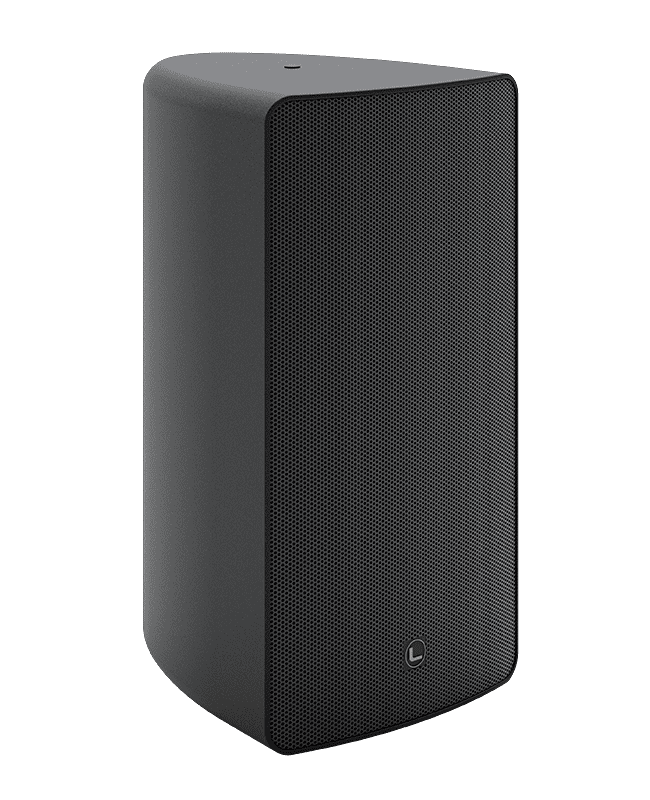

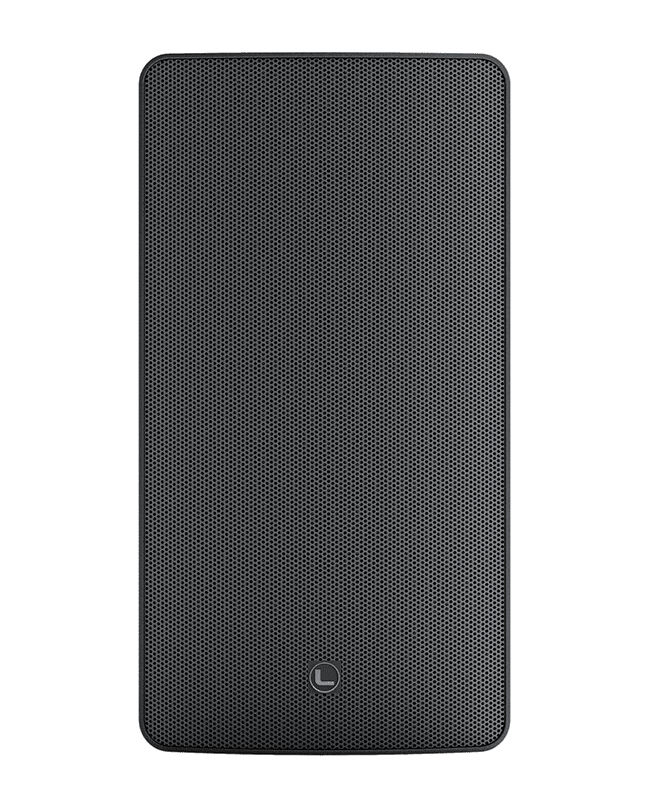

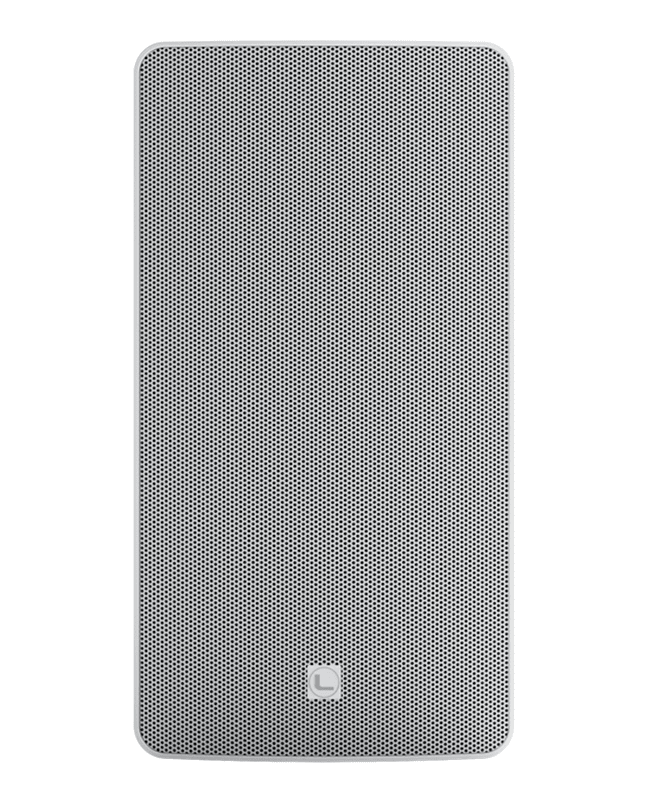

JN-8T
Weather resistant two-way full range loudspeaker. Consists of one 8″ low/mid-woofer with one 1″ HF driver, with a multitap transformer. 122 dB SPL.
The JN-8T comprises one 8″ low/mid-woofer with one 1″ HF driver and is equipped with a multitap transformer.
High durability and superior performance with full sound over a large listening area. It has a sturdy structure and IP rated system which can be used both indoors and outdoors, being able to withstand the elements. Also, its elegant and discreet design makes it the ideal speaker for outdoor installations such as beach clubs, pools, cruise ships and terraces.
The JN-8T can be set up either vertically or horizontally. The body is made of engineered plastic injection moulding and polypropylene guaranteeing complete protection against ultraviolet rays. The grille is perforated aluminium, internally covered in waterproof fabric and open cell expanded polyurethane.
Although this cabinet can be used without a processor, the best performance is achieved when using our presets, optimised for LUKA processors and GTX amplifiers. Please note that using the cabinet without our recommended processors or amplifiers may affect the product warranty.
The system conforms to IP46 international standard.
Perfectly suited for:
- Meeting rooms
- Commercial centers
- Water parks & pools
- Outdoor background music
- Beach clubs
- Cruise ships
60 Hz – 18 KHz
55 Hz – 20 KHz
1×8″ (200 mm) / 2″ voice coil LF
1×1″ (25 mm) / 1″ voice coil HF
150 W
100 V
37.5W / 75W / 150W
94 dB 1w/1m
116 dB / 122 dB peak
16 Ω nominal
90º x 50º
2.3 KHz passive
Covered Phoenix | EuroBlock terminals
450 x 240x 287 mm
10 Kg (22 lbs)
More features
Hardware for JN-8T
Accesories for JN-8T

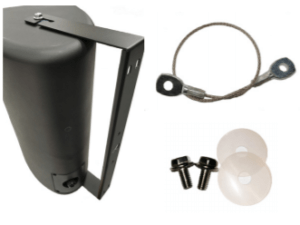

U-bracket with stainless steel screws, silicone washers and safety cable

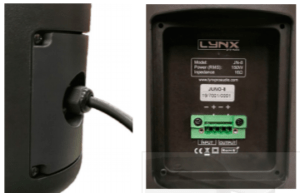

Plastic cover with gland connector and uroblock input connector
Optional accessories
UBR-JN8
U-bracket

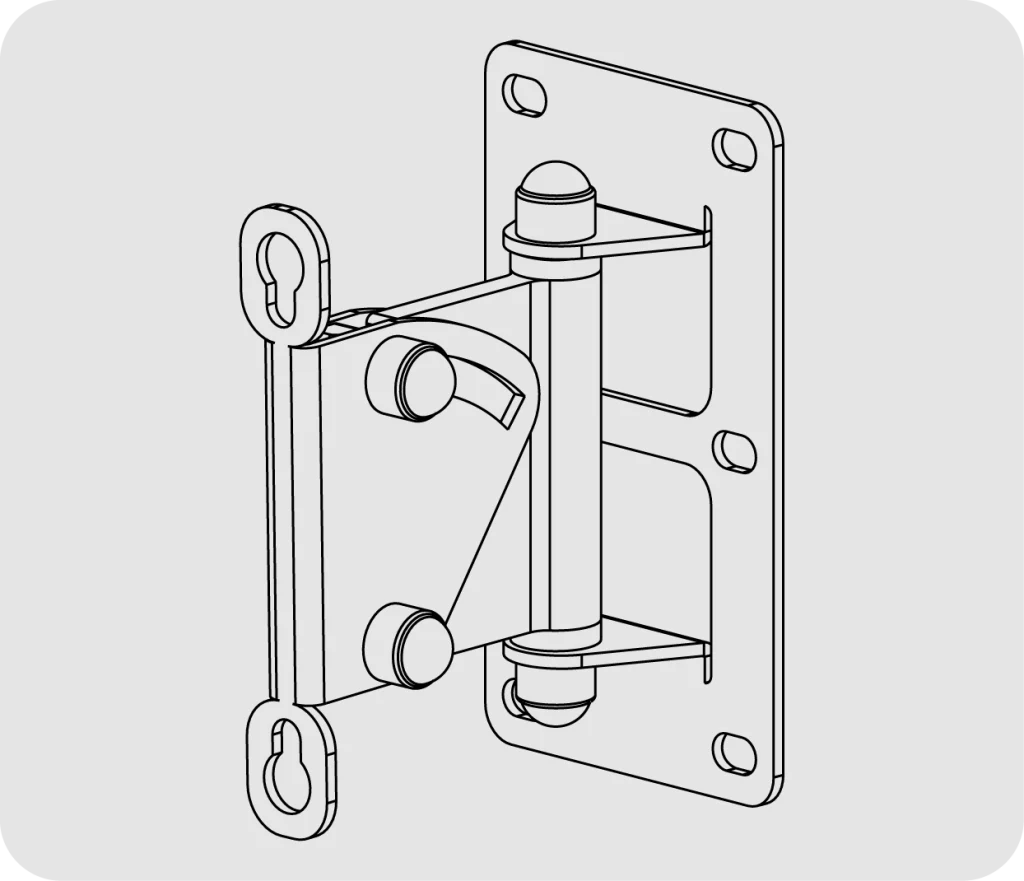

WB-JN
Wall-bracket

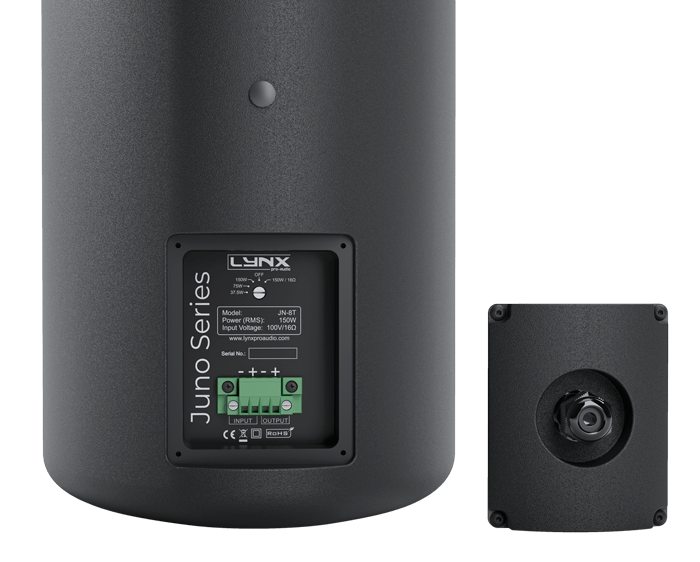

Backpanel detail
Weather-resistant version
Our Weather-resistant version speakers are designed to withstand harder weather conditions, where the cabinets are exposed to the elements.
Colours:
- Black polyurea coating with microtextured metal parts.
- RAL available on request. Polyurea coating with aliphatic colour paint.
1. Anodized aluminium logo for durability outdoors.
2. Stainless steel 1 mm 316 L grill. Also available in aluminum with protective layer and micro textured paint.
3. Weatherstrip edging for extreme protection.
4. Acoustex filter: hydrophobic polyester sheet to prevent the penetration of water and external elements produced by extreme weather conditions.
5. 35 ppi Acoustic foam to protect against dust particles.
6. Waterproof protected cone on both sides
7. Aluminum back plate with pressure gland for an extra tight connection and easy installation.
8. M10 stainless steel 316 L screws (A4).
The HR-6 is also available as an outdoor version. The cabinets receive the following treatment so that they can be installed in outside locations:
– Micro perforated aluminum grill with special polyester protect from water.
– Tropicalized speaker treatment with special latex covering for water protection.
– Stainless steel screws
– Connection system with 2.5 meters of Oxygen-free cable 2 x 1.5mm with cable gland.
– Double polyurea coating.
