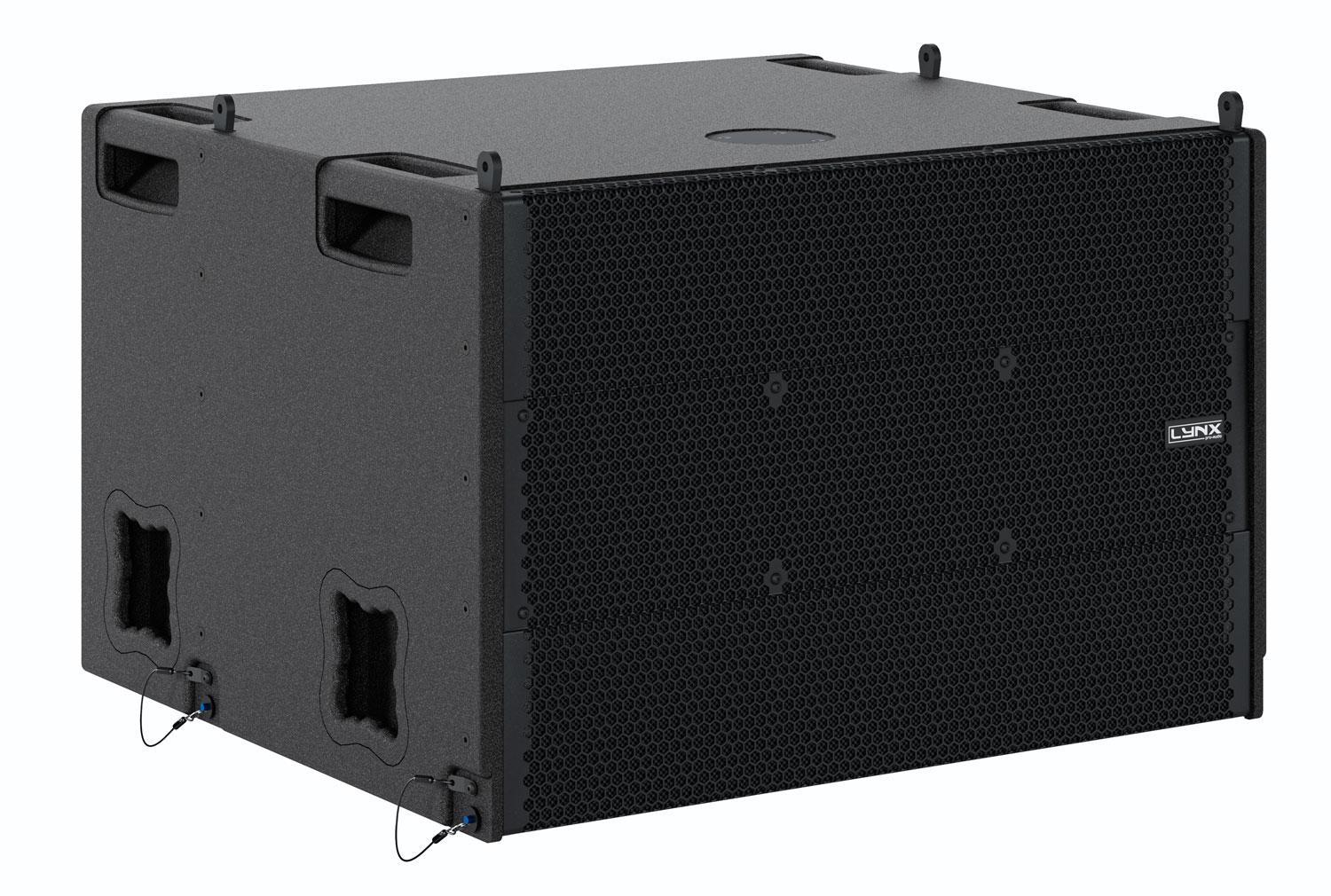

GXR-D15P

Powered compact subwoofer for GXR-LA210P

Compact, self-powered class D subwoofer equipped with two 15″ (4″coil) speakers. It delivers high power levels from a very compact format.

The GXR-D15P is a high output compact bass reflex, omni-directional subwoofer cabinet. Consists of 2 x 15″ (4″ voice coil). The GXR-D15P has a selection of accessories available: Flying frame, transport dolly, nylon protection cover, rain hood, etc.

Depending on the configuration, the system is amplified with the GTX Series, 4-channel, extremely high power level amplifiers with outstanding, high efficiency. They come equipped with a quality FIR-DSP with high performance 96kHz DSP processing and a large IPS display with a touch panel user interface.

Advanced Audio Power Control Management has been implemented in the design of the GTX series. This enables the user to configure the division of power between the channels via the DSP enabling them to obtain maximum power through just one single channel if desired. Optional Networking AES67 and AES3 Digital inputs are also available.

Perfectly suited for:

Live PA
Clubs
Theatres
Houses of worship
Fixed installations
Touring

Configuration: Self-powered, direct radiation subwoofer with a 15″ LF transducer (3″ voice coil).
Acoustics: 35 Hz – 130 kHz frequency range with 131 dB Peak SPL.
Digital Processing: 96 kHz / 64-bit DSP with linear phase FIR filters for precise and coherent response.
Amplification: Latest generation Class D module with switching power supply and 1400 W output.
Build: 15 mm birch plywood enclosure finished with high-resistance polyurea and 1.5 mm steel grille.

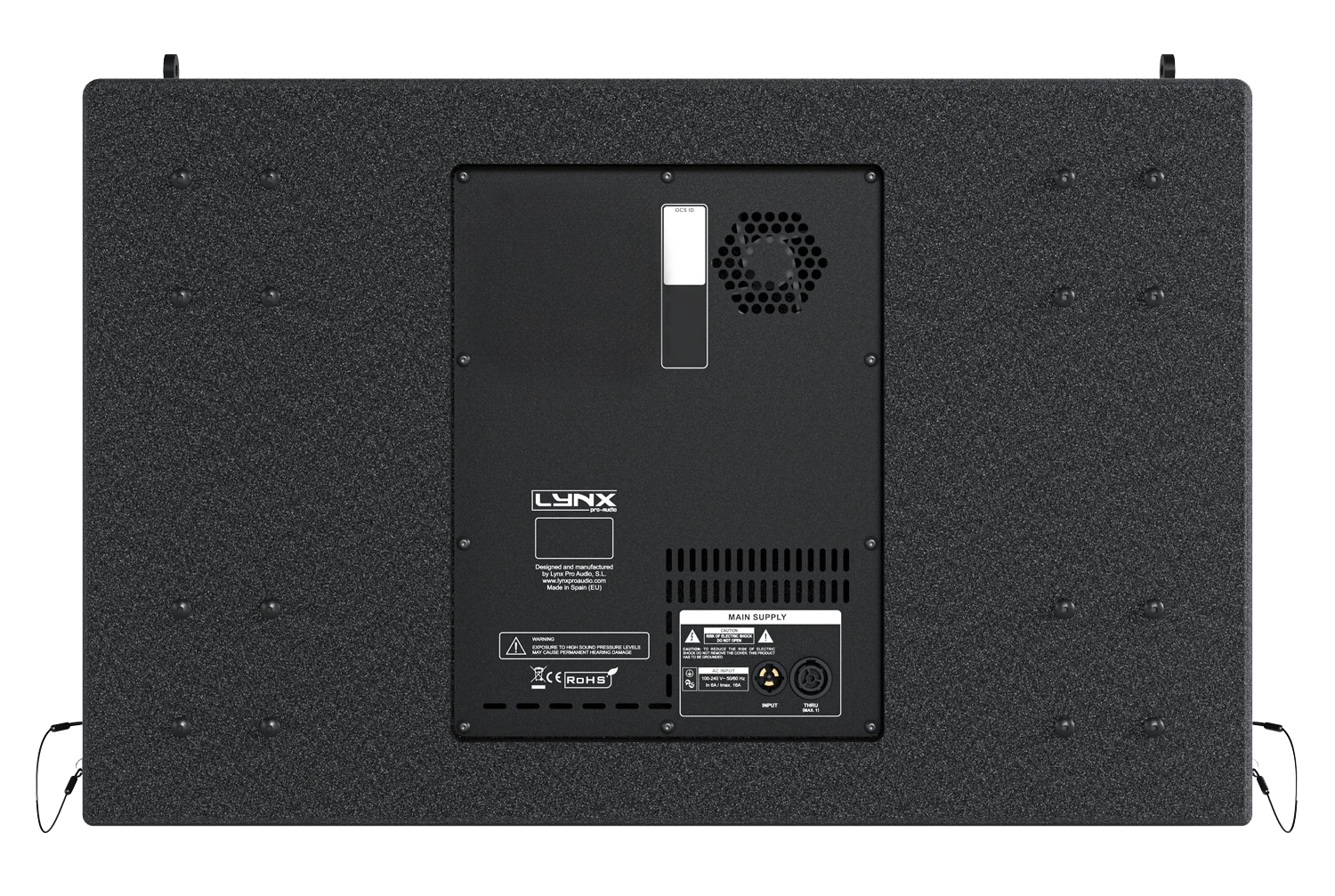

Control & Connectivity: 2.8″ IPS touchscreen for local management and Ethernet port for remote software control.

Components

LF: 2 x 15”, 4” voice coil

Frequency Range

30 Hz – 140 Hz (-10dB) processed

Frequency Response

35 Hz – 125 Hz (± 3dB)

Sensitivity

100dB

Max. SPL / Peak

LF: 133 dB / 139 dB

Rated Power

2000W AES, 4000W program, 8000W peak

Coverage

Omnidirectional

Crossover

Electronic Crossover

Nominal Impedance

2 x 8 Ω total 4 Ω

Connectors

2 x Neutrik NL4

Finish

Polyurea coating

Material

18 mm premium birch plywood

Dimensions

505 x 790 x 690 mm (H x W x D)

Weight

46 Kg (101.4 lbs)

More features

Hardware for GXR-D15P

Enclosure

The GXR-D15P cabinet is constructed from 13-ply premium birch plywood (18mm thickness) and finished with polyurea coating.

Internal design

The internal structure of the cabinet is heavily braced for greater longevity and all parts are assembled on metal inserts with metric screws.

Grill

The cabinet has a heavy duty, powder coated front grille with a special acoustic rear fabric to protect the transducers against dust and dirt.

Handles

Four handles are located on each side of the enclosure to facilitate transport, positioning and loading of the cabinets.

Rigging

Built-in flying points are located on each side of the enclosure to link the cabinets together or fix it to the flying frame.

Transport

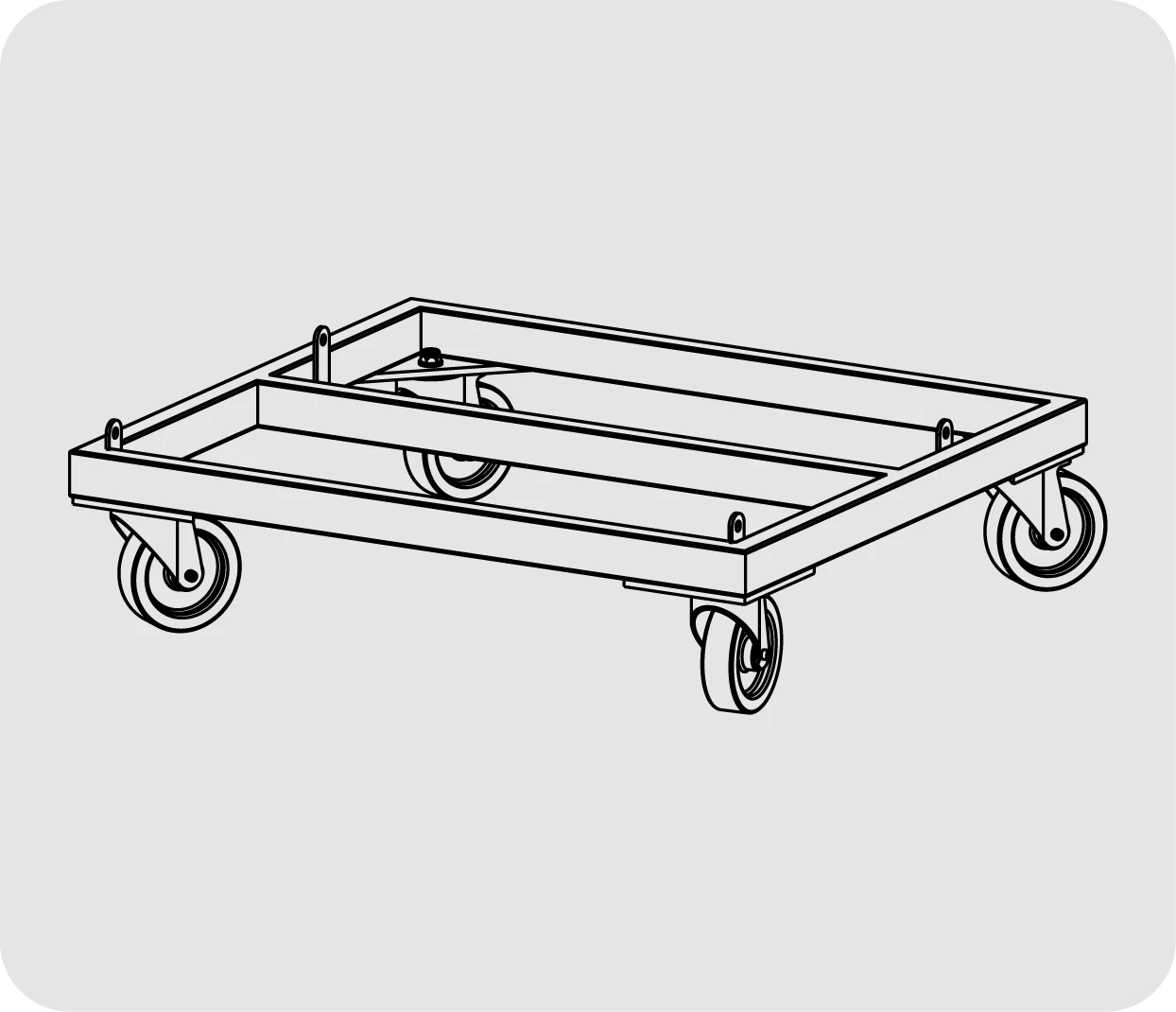

The cabinet is easy to transport thanks to its dedicated dolly and a protective nylon cover is also available to protect the enclosure and keep it clean on tour.

Accesories for GXR-D15P
