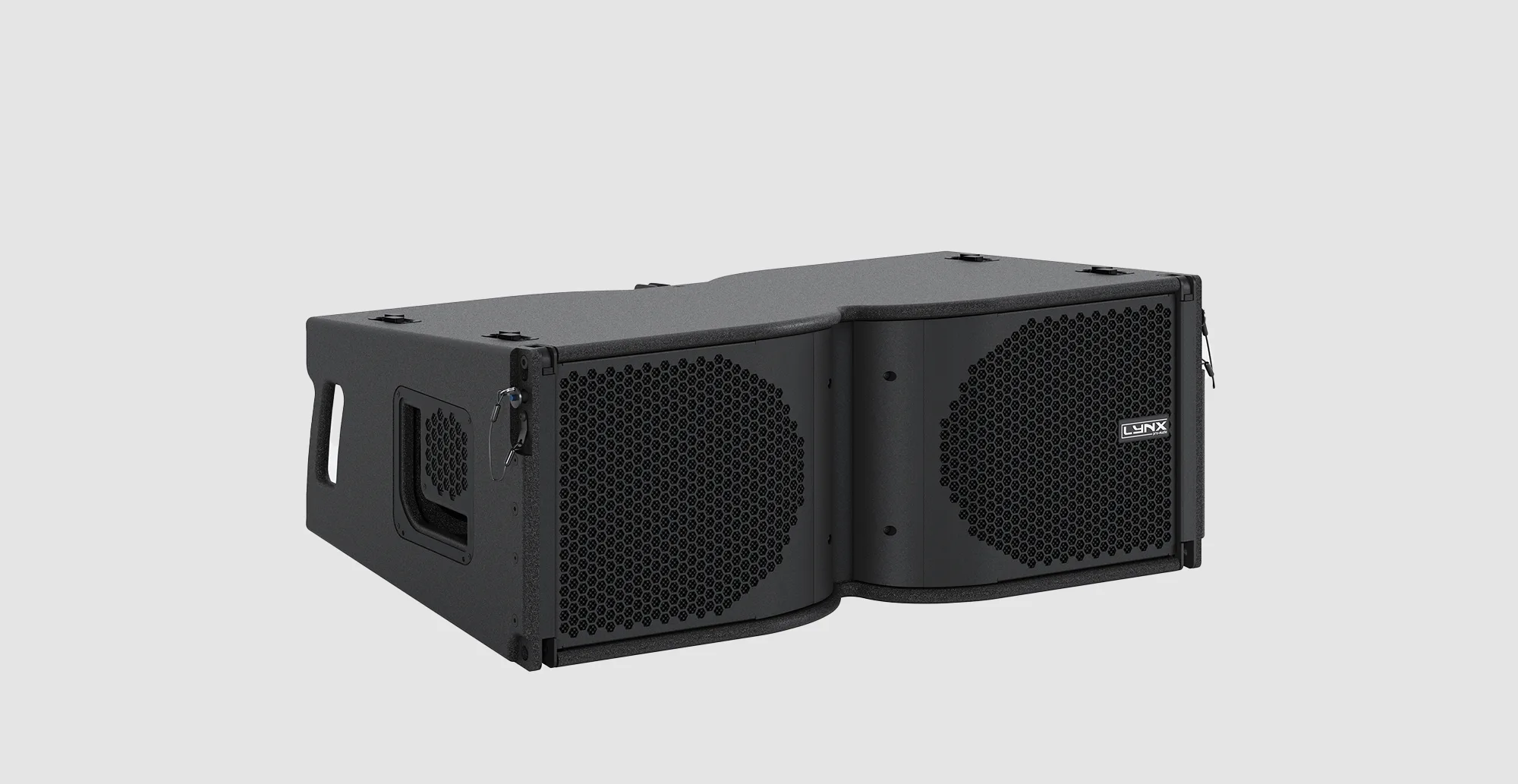

CLS-210

DSP integrated coaxial line array

Extremely compact & extremely powerful 3-way, self-powered (4000 W Class-D with PFC), DSP integrated coaxial line array element. Dual high power 10” neodymium transducers and 1.4” Exit throat (HF 2” voice coil/ MF 3” voice coil) coaxial neodymium compression driver

The CLS-210 is a high-output extremely compact and extremely powerful 3-way, self-powered, DSP integrated, symmetrical coaxial line source element designed for medium sized touring & fixed installations.

It uses two low distortion 10” (3.46” voice coil) custom speakers for the low frequencies with dual gap technologies, FEA optimized neodymium magnet circuit, aluminium demodulating ring and waterproof cone.

For the mid/high frequencies it uses an ultra light weight 1.4” dual diaphragm coaxial compression. The unique voice coil technology employs a light weight copper clad aluminium wire, wound inside and out of the Kapton former to improve heat dissipation, dramatically increasing the acoustic output and reliability of the driver while minimizes the power compression.

The larger annular midrange diaphragm covers the frequency range between 300Hz and 7KHz with a smooth, linear response.

The ultra light annular diaphragm for the high frequencies offers exceptional transient response with very high efficiency from 4KHz to 22Khz.

With two subsystems in one each driver covers a smaller frequency range for increased power handling, high dynamic and extremely low distortion and delivers excellent phase coherence & perfect time alignment without problems of multi-source interference.

The 4000 W 3 channel Class-D amplifier with PFC (Power Factor Correction) offers exceptional efficiency with maximum system performance whilst significantly lowering power consumption. With Thermal, short-circuit and overload protections the system module delivers superior sonic performance. Coupled together with our new generation, 64 bit/96KHz processor the system electronics are yet further guaranteed not only the utmost protection but the best performance.

Designed in-house by Lynx Pro Audio engineers our DSP offers the most recent advances in digital processing such as FIR filters delivering a linear phase & frequency response. The latest 32 bit/96KHZ AD/DA converters make the system one of the most advanced & innovative line arrays on the market resulting in superior sound quality.

A 2.8” IPS display user interface is located on the enclosure’s back panel and has multifunction joystick control enabling the user to control, select and/or adjust parameters such as cabinet presets, gain, delay and input EQ (see user manual). Two Ethernet ports enable the system to be controlled with the OCS platform for easier alignment, monitoring and processing of the array and together with the new Rainbow 3D prediction software delivers a complete system design tool.

The enclosure is made from premium grade birch plywood and finished with a polyurea coating for longer durability & weather protection.

Perfectly suited for:

Touring and fixed installations
Sports stadiums
Houses of worship
Club installations
Theatres
Concert halls and auditoriums

• Extraordinary power-to-size ratio

• Perfect acoustical coupling of individual units to create virtually continuous line source & excellent phase coherence

• Extended bandwith (60 Hz – 20 KHz)

• Integrated Digital processor (64 bit / 96 KHz) with FIR linear phase filtering

• Perfect Time Alignment avoiding Multi-Source Interference problems

• Ergonomic design in premium birch plywood & finished in polyurea

• 2.8” IPS display with multifunction joystick control

Components

LF: 2 x 10”, (3” DUO double layer in/out copper voice coil), waterproof treated cone on both sides, Neodymium magnet.
1400 W (AES)
MF: 3” (76mm) voice coil, 90W (AES)
HF: 2” (51 mm) voice coil, 50W (AES)

Frequency Range

60 Hz – 20 KHz

Horizontal coverage

100º

Vertical coverage

Single element 10º

Max SPL / Peak

136 dB / 142 dB

Power amplifier

4000 W Class-D with switching power supply & PFC

DSP Processing

Internal Lynx Processor DSPB-FL. 96 KHz / 64 bit double-precision, DSP with FIR filter linear phase.

High performance 32 bit 96 KHz AD/DA converters

Crossover

Digital: FIR Filter 550Hz

Control

User control interface with 2.8” IPS display and multifunction joystick controller

Control connections

USB (DSP programming)

Dual Ethernet port, Online Control System

Input

BAL/ UNBAL XLR connectors analog input AES3 digital input

Nominal voltage

100 – 240V AC @ 50-60 Hz

Operating voltage

85 – 264V AC

AC Connections

16A Neutrik powercon true1 TOP with looping output

Finish

Polyurea coating, high grade resistant paint

Material

15 mm premium birch plywood

Dimensions

302 x 800 x 479 mm (H x W x D)

Weight

38 Kg (72.75 lbs)

Intercabinet angle adjustment

0º to 10º in one degree increments

More features

Hardware for CLS-210

Enclosure

The CLS-210 cabinet is constructed from 11-ply premium birch plywood (15mm thickness) and finished with polyurea coating

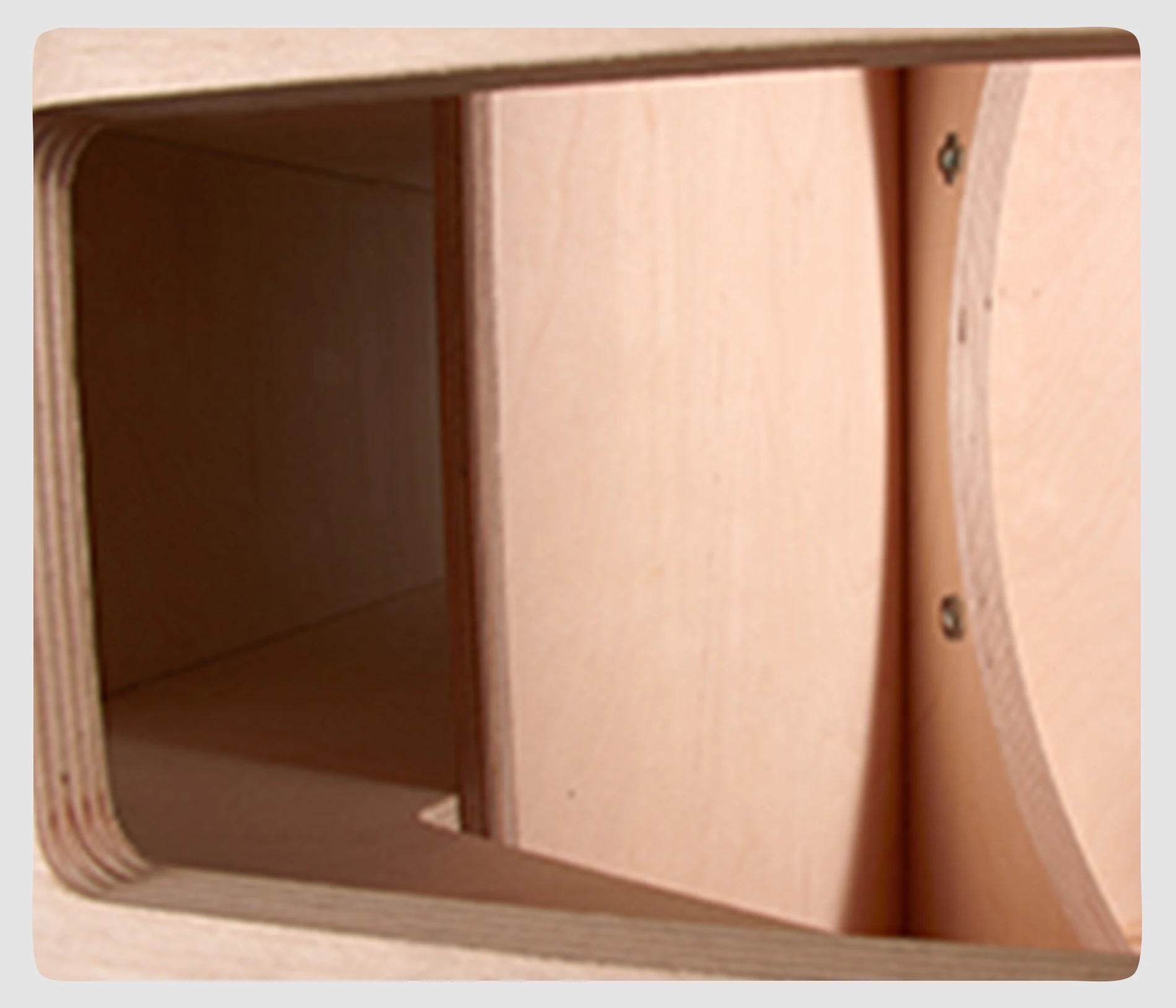

Internal design

The internal structure of the CLS-210 is heavily braced for greater longevity and all parts are assembled on metal inserts with metric screws. The amplification modules & DSP are housed in a separate chamber to the drivers avoiding excessive heat & vibration, thus delivering greater efficiency and reliability.

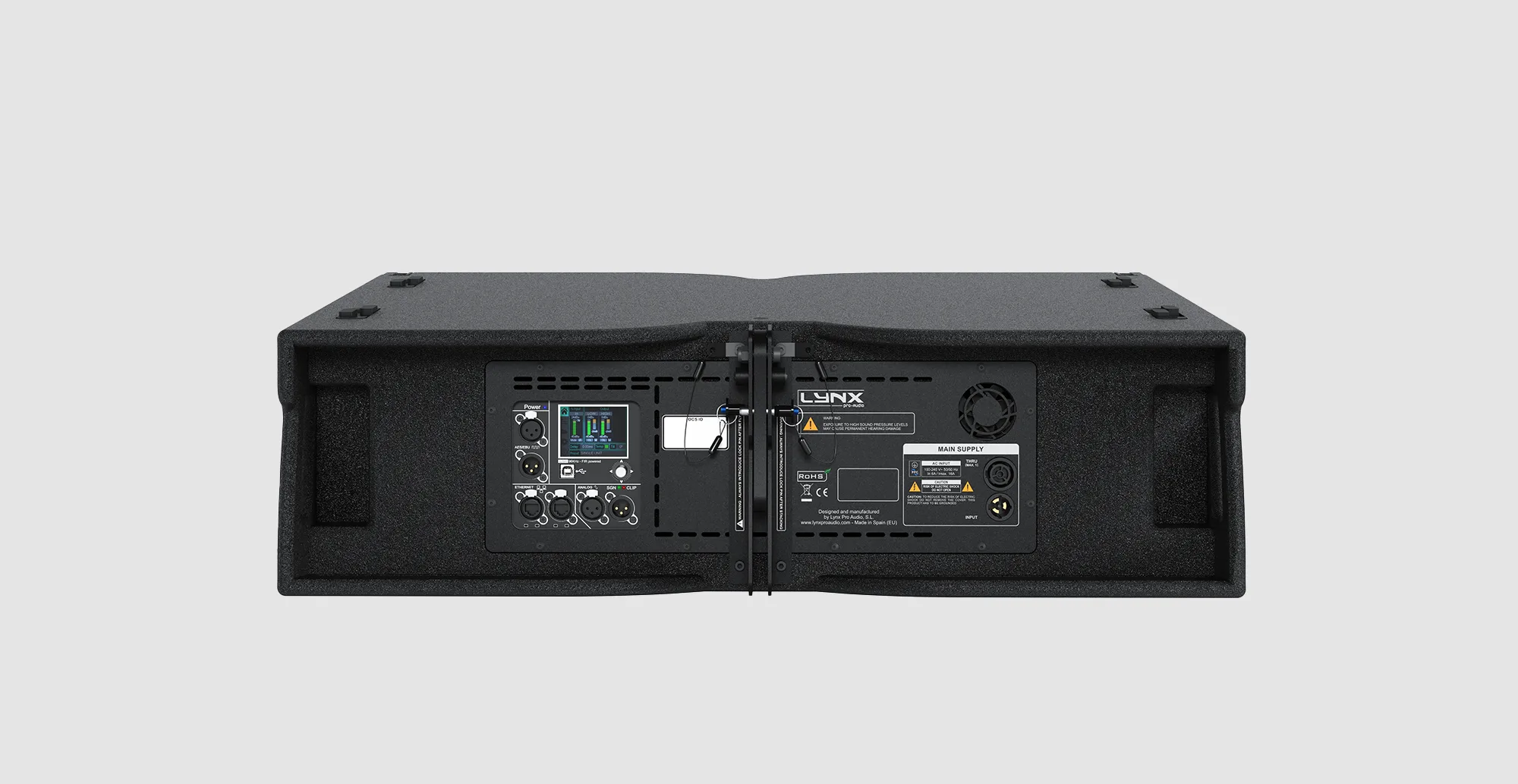

Rear panel

The powder coated steel rear panel contains all connections and houses the CLS-210 amplification modules and DSP, is easily accessible and housed separately from the drivers for increased reliability and efficiency

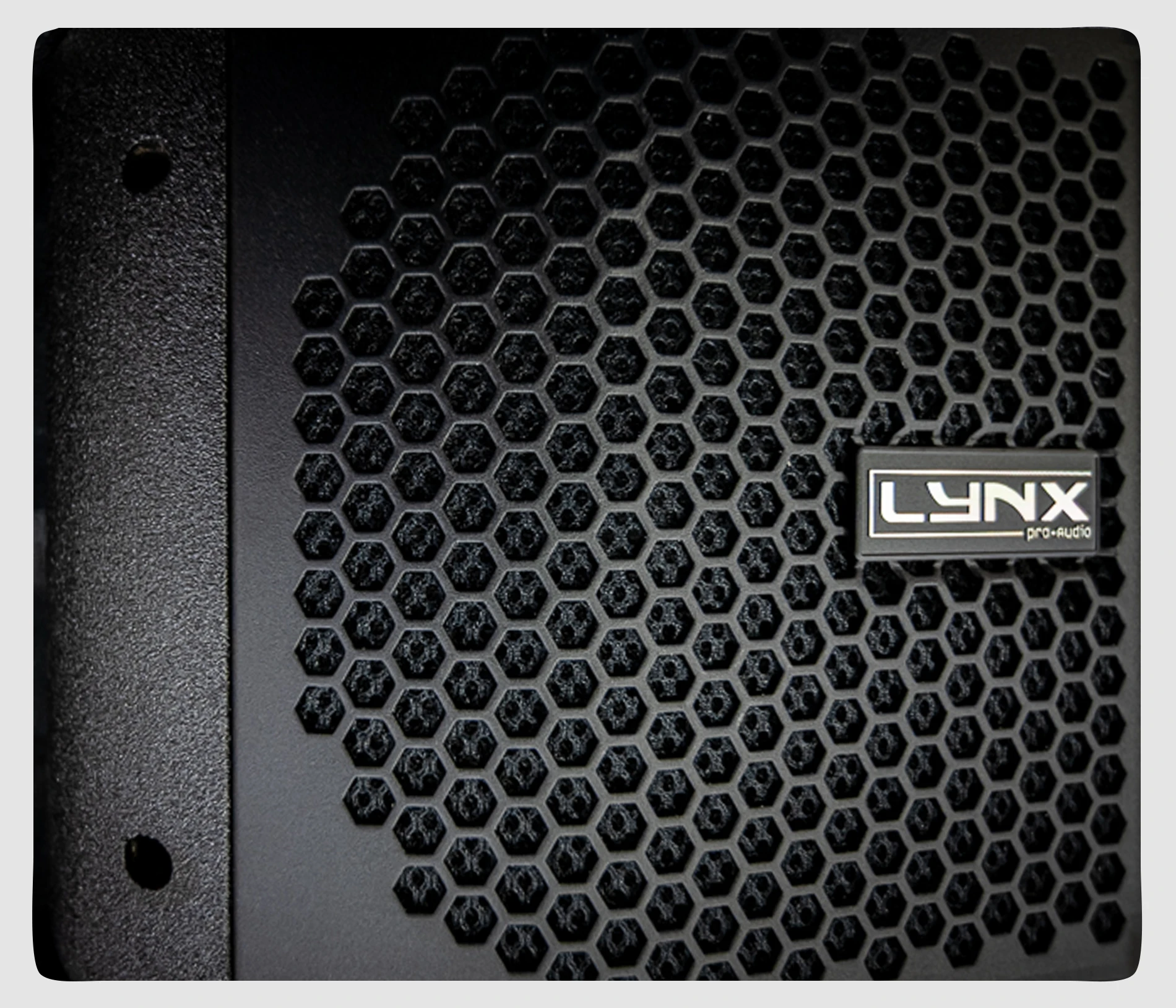

Grill

The CLS-210 has two heavy duty, powder coated front grille with a special acoustic rear fabric to protect the transducers against dust and dirt.

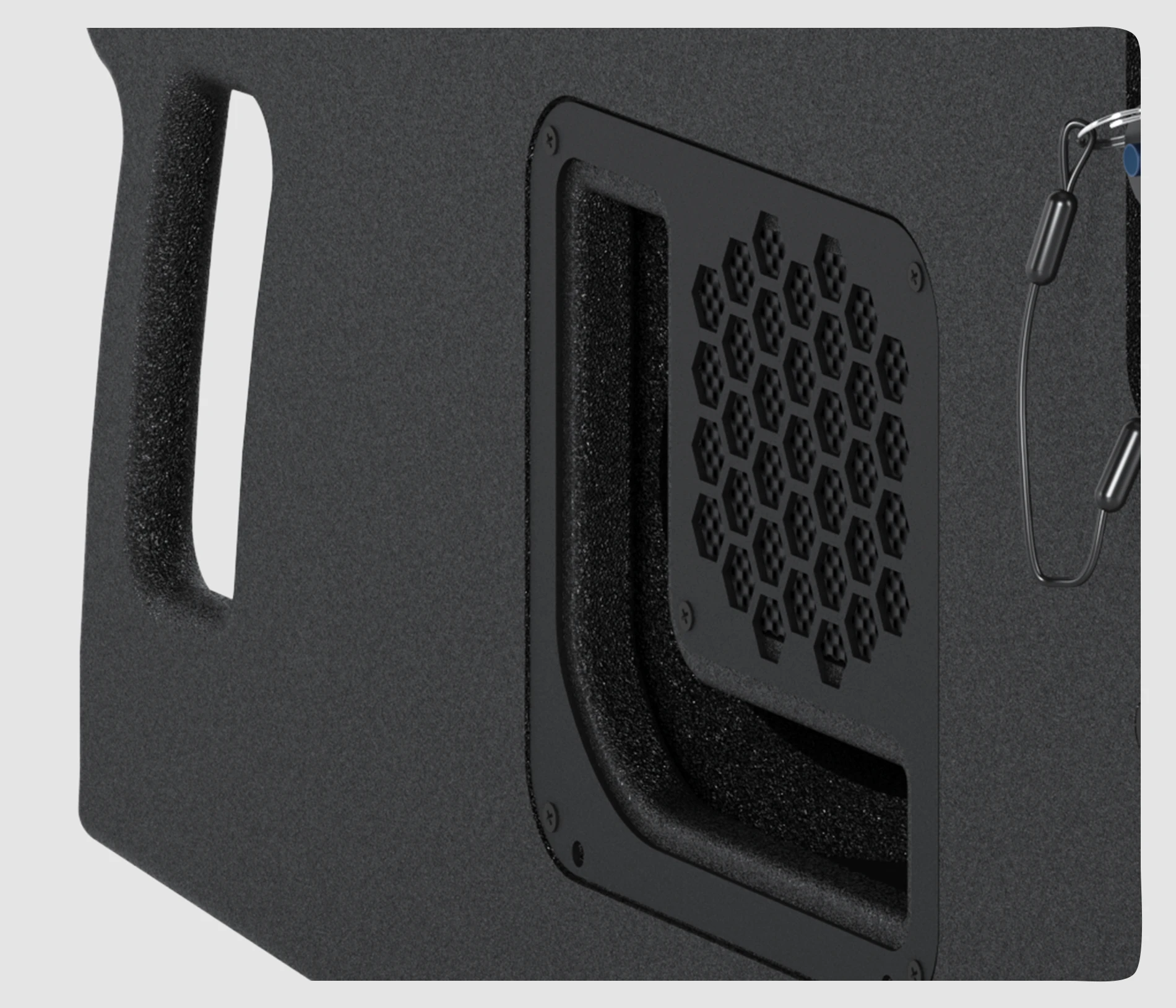

Handles

The CLS-210 has four ergonomic handles with firm internal grip to facilitate transport, positioning and loading of the cabinets. Two handles are placed at the rear of the cabinet and two L-shaped are located on the sides.

Rigging

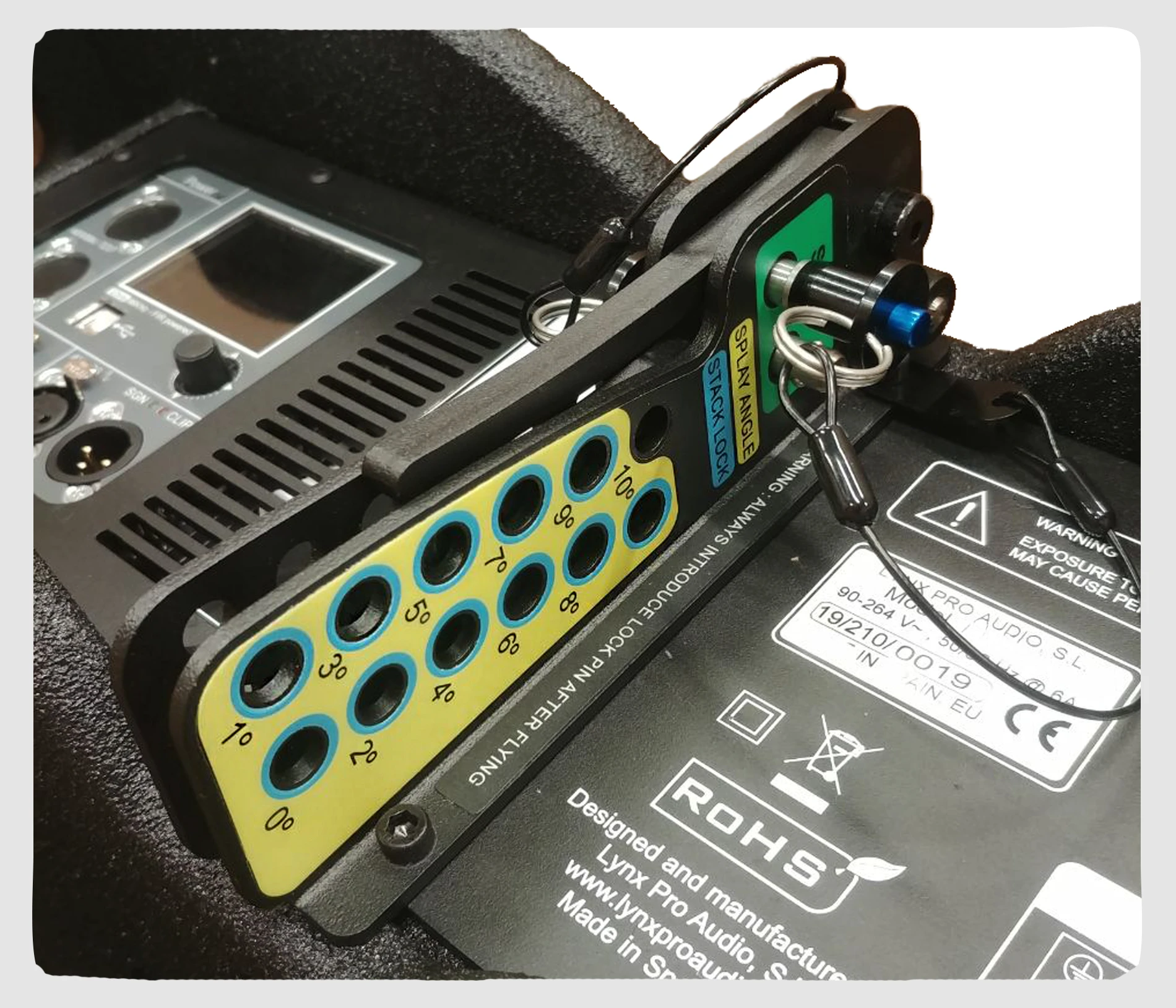

The 3 point rigging system with 2 front retractile levers and 1 centre/rear point enables up to 16 CLS-210 cabinets to be flown in a single array, with optional splay angles, from between 0º to 10º with 1º step increments to create the desired curve.

The system can also be rigged and angled in retracted position enabling a much easier set-up without the need to lift each cabinet individually.

Transport

The CLS-210 is easy to transport thanks to its dedicated flight case where it can be stowed in rest position. With craddle option: no need to lock pins.

Accesories for CLS-210

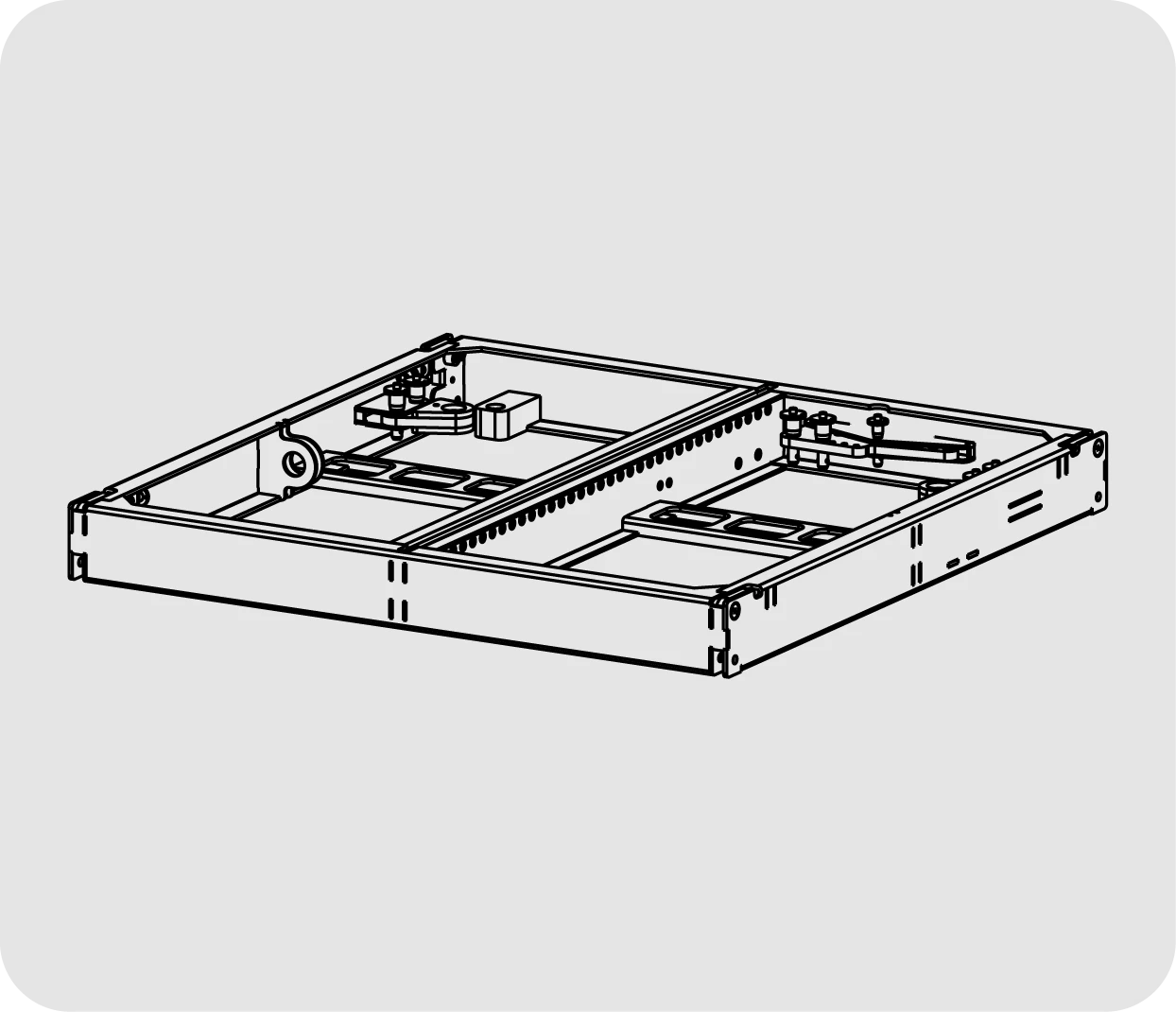

SV-CLS20

Flying frame for 16 CLS-212, CLS-210 or 10 CLS-121S.
Máx. 1000 Kg

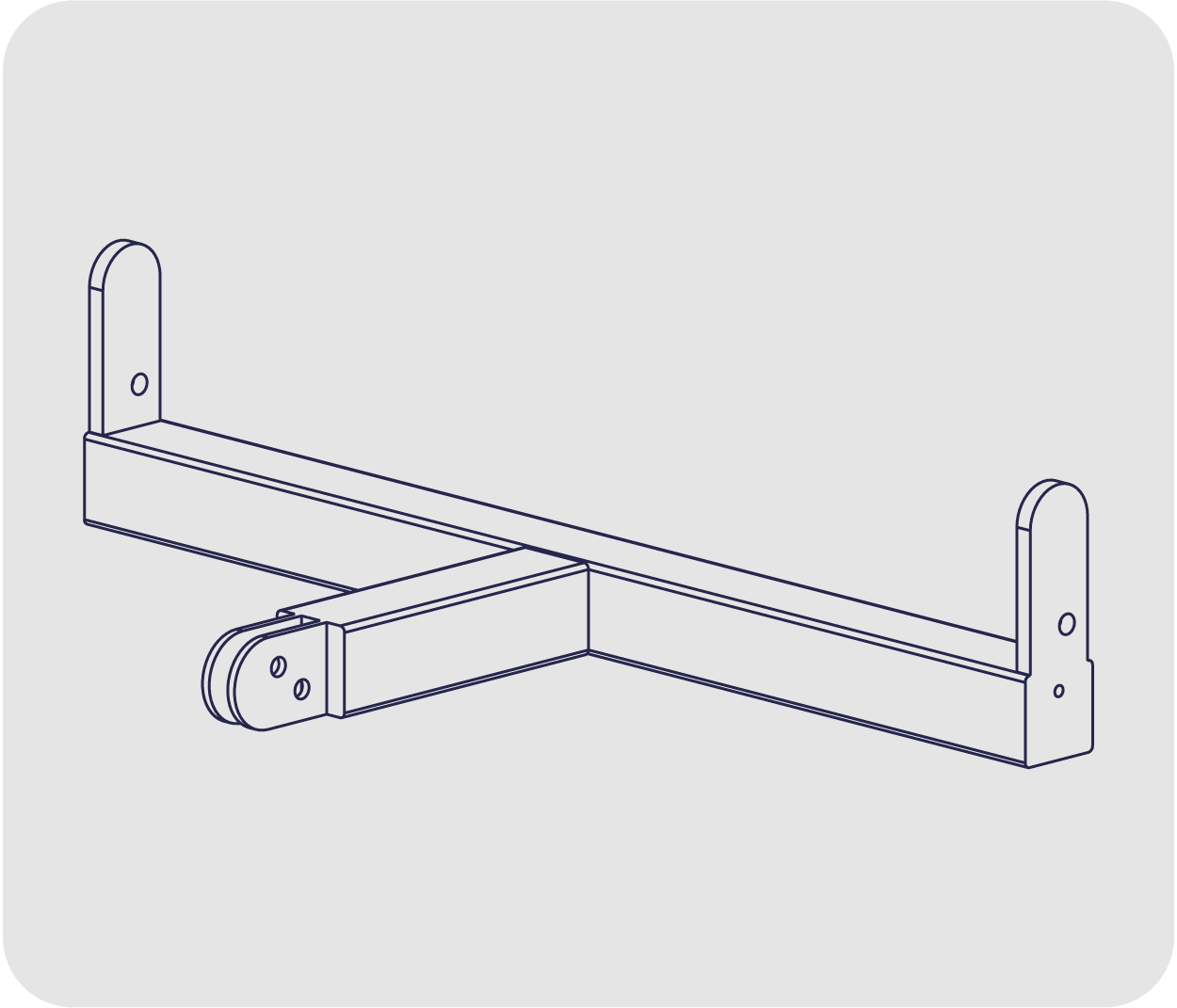

SC-CLS212/121

Connection system for CLS-212 or CLS-210 together with CLS-121S

ST-SVCLS/M20

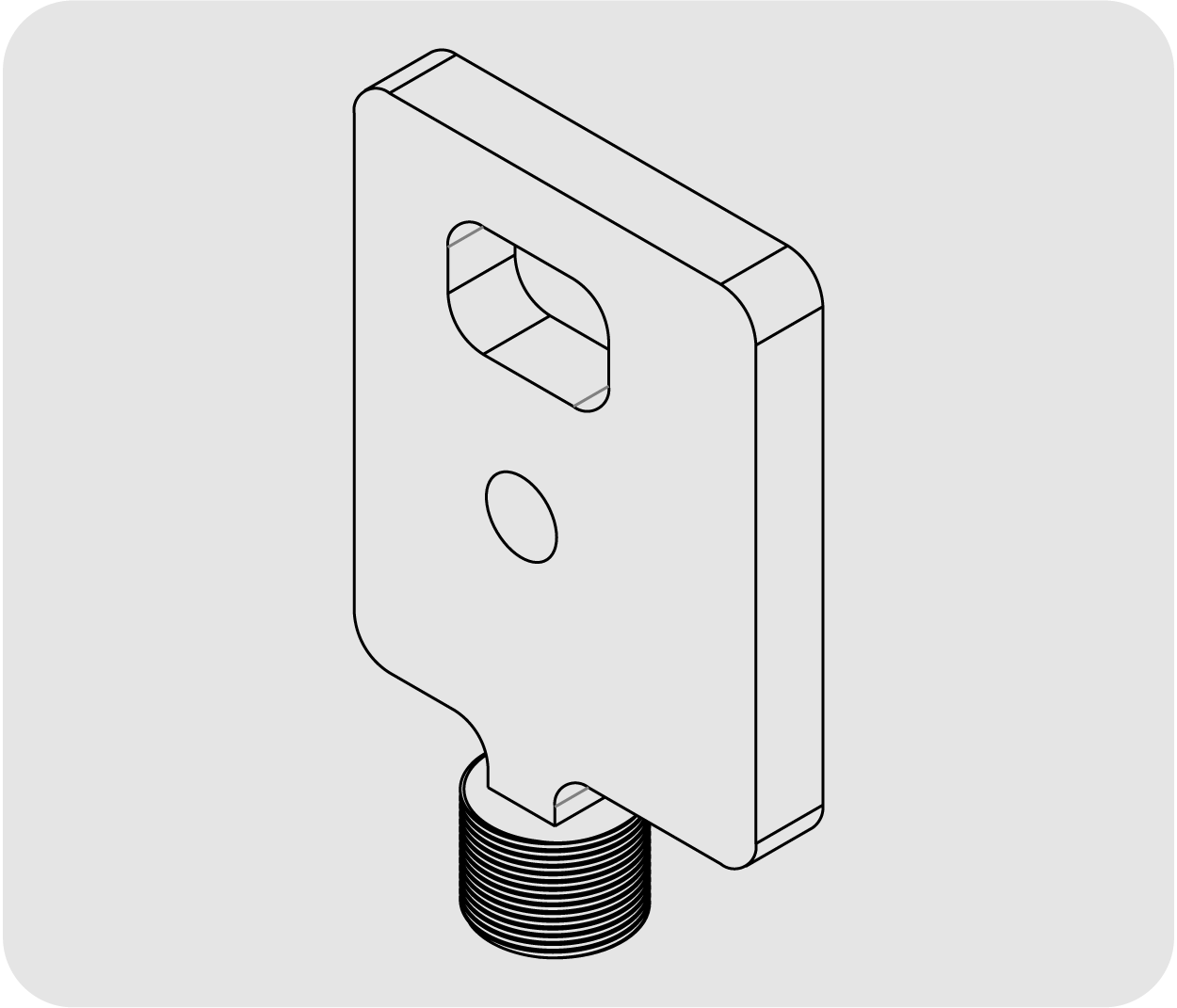

Kit to connect SV-CLS10 or SV-CLS20 flying frame and M20 plate

ST-CLS20KIT

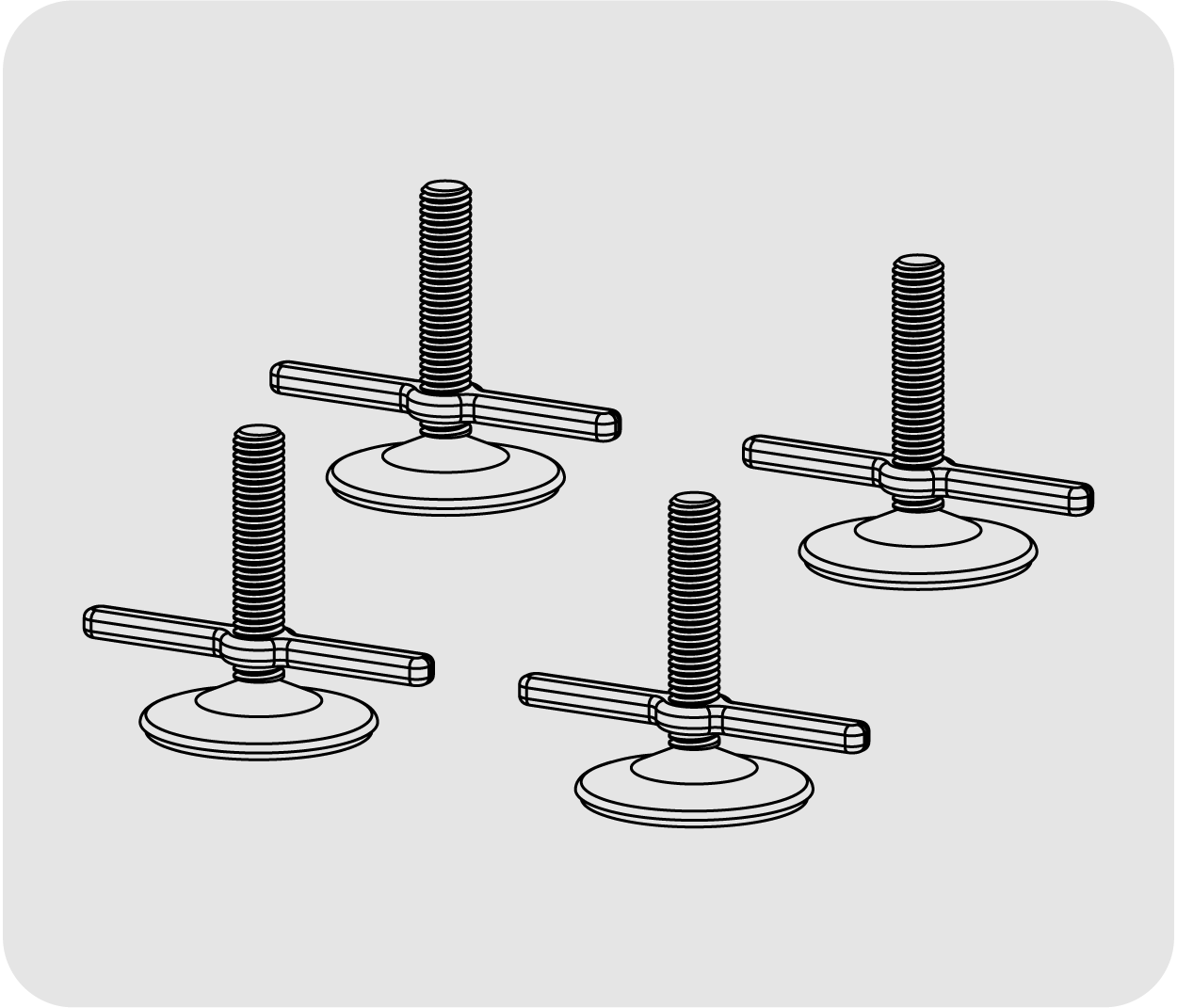

4 x ground Stack stabilisers for SV-CLS20

FD-CLS210NL

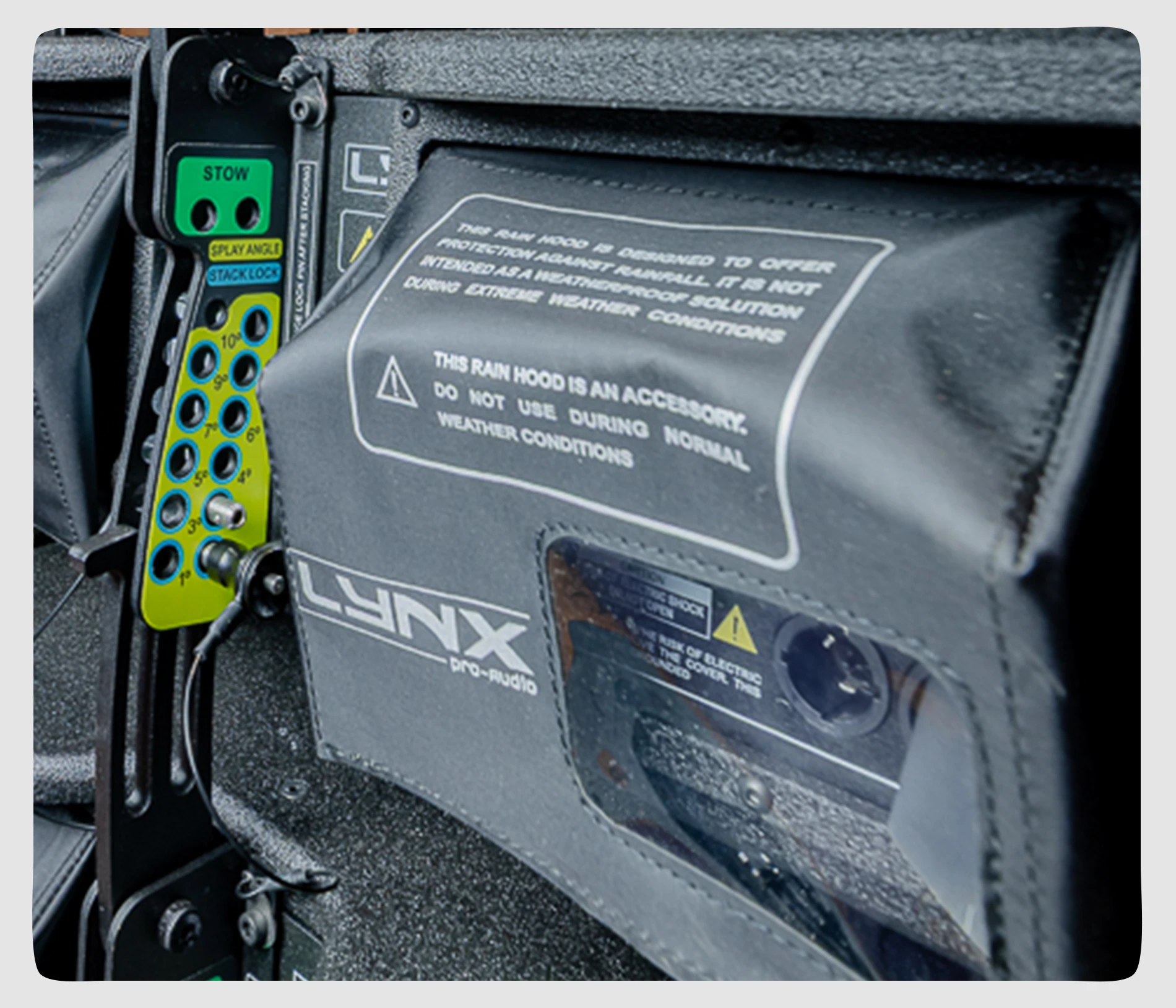

Rain cover for CLS-210

FD-4CLS210

Nylon case for 4 CLS-210

FC-SVCLS20

Flight case to transport 2 SV-CLS20, cables and accessories

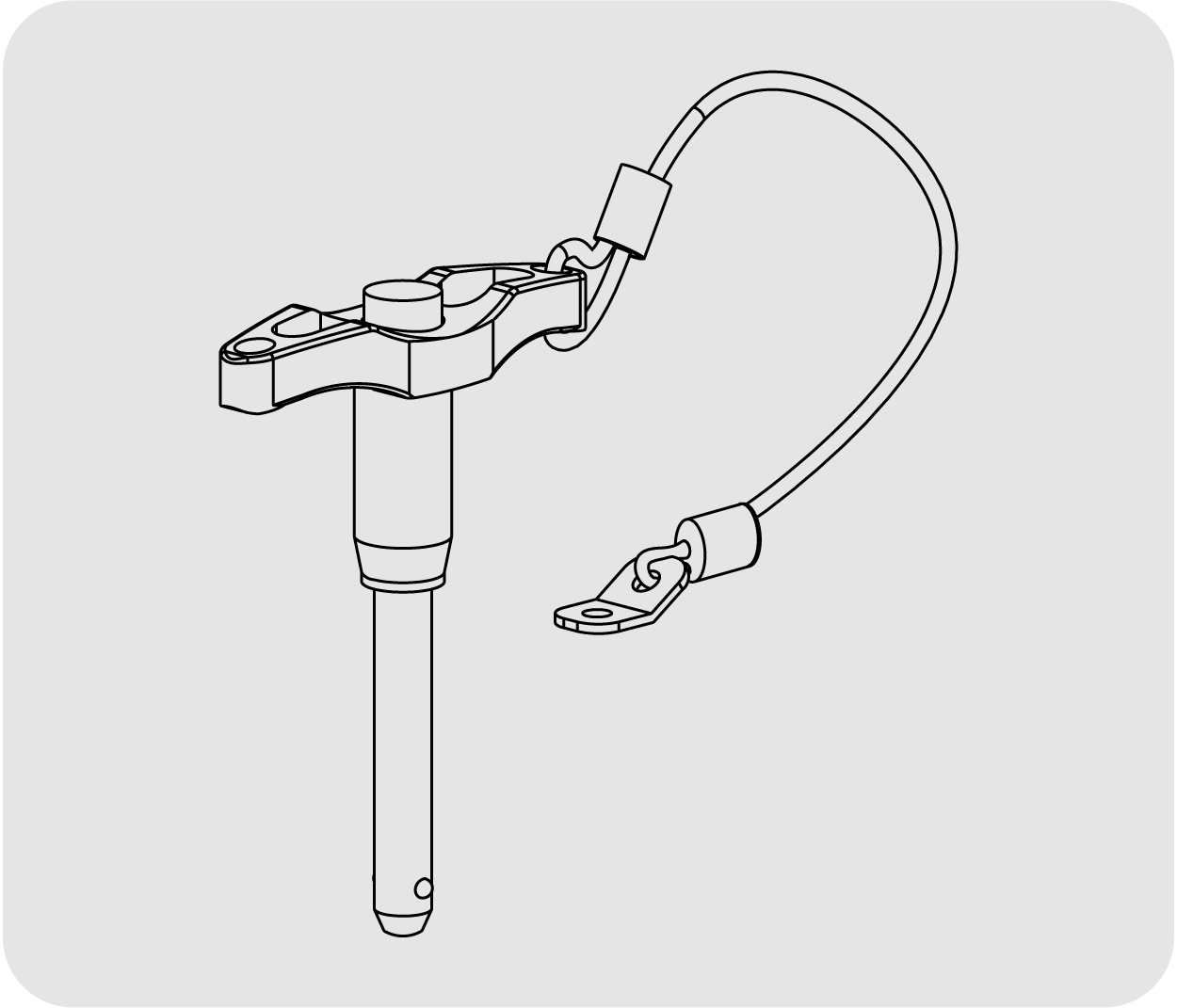

BALL-PSR0820R

Ball pin with thread for CLS-212/ CLS-210/CLS-28 /CLS-118S/ CLS-121S

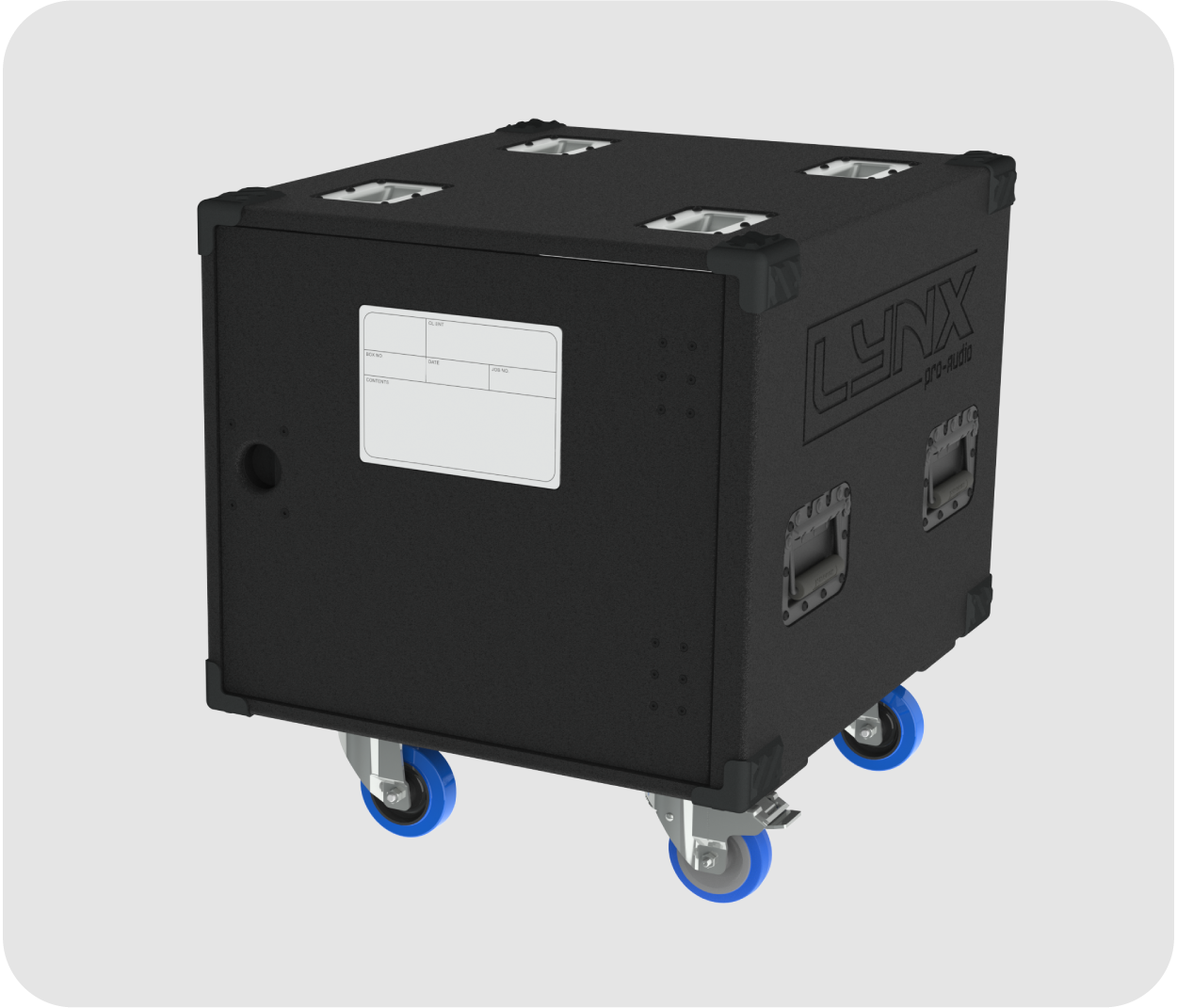

POWERRACK10

Transport rack 10 units

CA-4CLS210

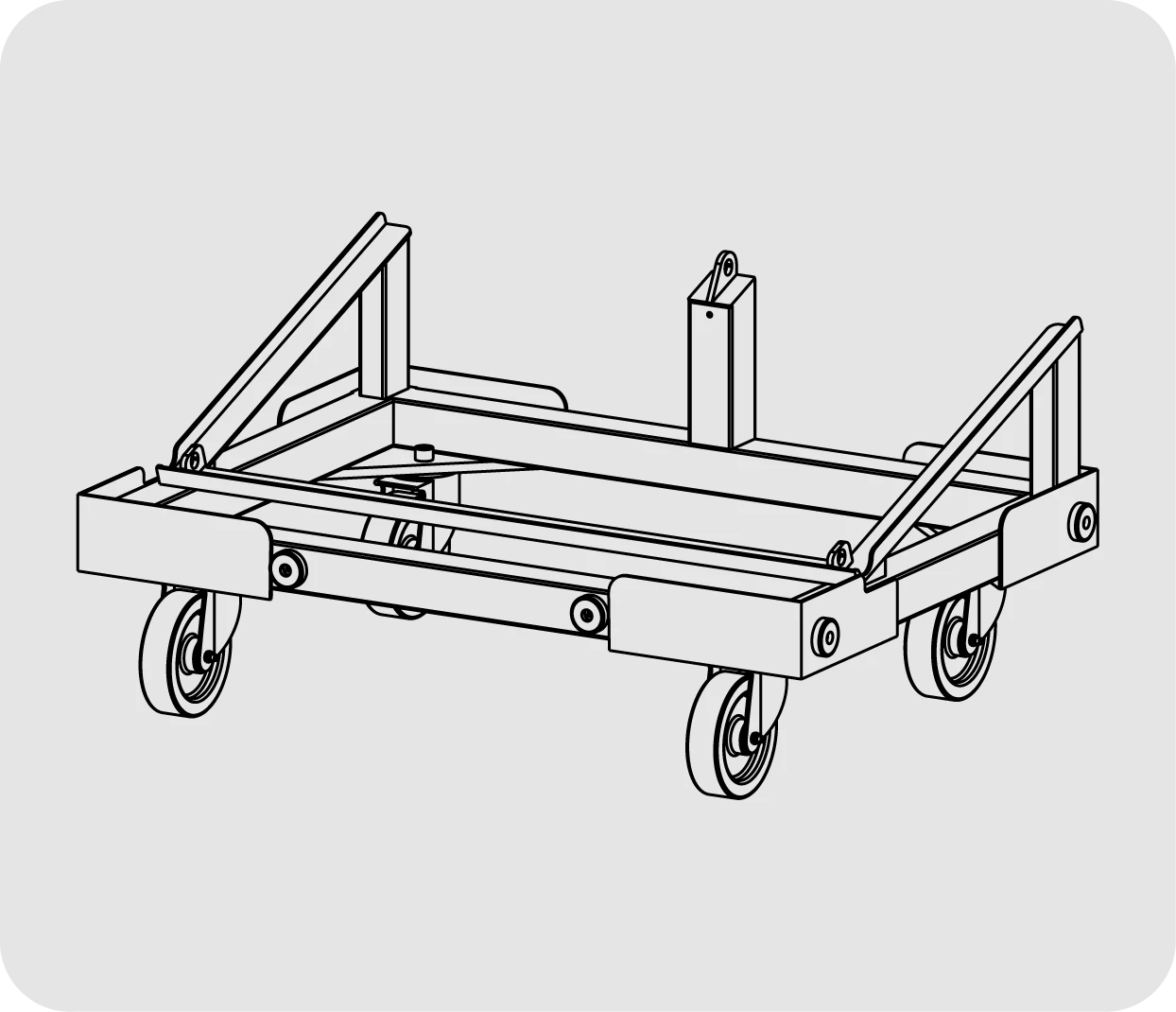

Transport trolley for 4 CLS210

DSP configuration

DSP panel configuration

On the back pannel of the cabinet you will find the digital control area. From the compact joystick located below the screen you are able to configure the basic adjustment functions of the internal DSP.

Just move the joystick to select the icons on the left of the screen. You can enter into the following functions: Home, settings, folder, configuration and information. Please note that you must apply the desired configuration in each one cabinet and requires electrical power to work.

If changes are not made the display will automatically dim to avoid unnecessary light in situations where light is not wanted. To re-activate the light simply press the joystick.

The following screens are an example and may vary slightly for each cabinet.

HOME

On the main screen you can see the cabinet’s input and output:

• Input: You can see a vumeter with the input level and a clip signal.

• Output: You have a vumeter with the output level (0 dBu is the amp’s maximum level) You can check the compressor and control the dynamic activity.

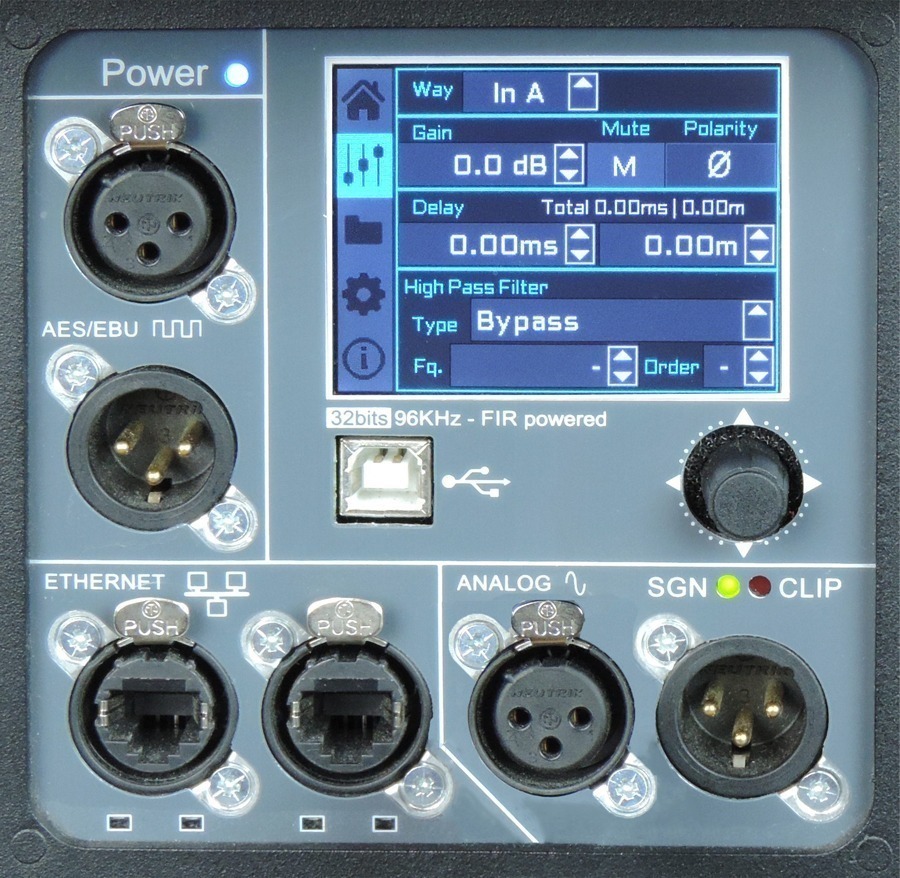

SETTINGS

This panel allows you to change the gain, polarity, mute and the delay for the inputs.

You also have the possibility of putting a high pass, changing the type of filter, frequency and order.

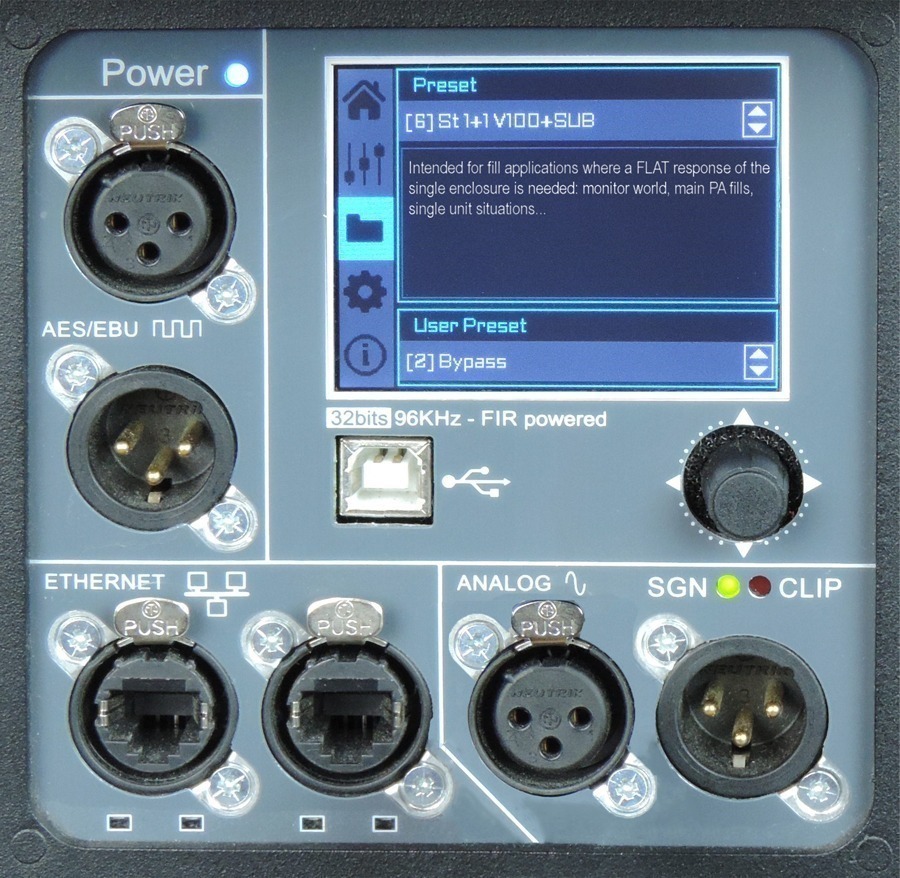

FOLDER

The folder screen shows you the name of the preset and its description.

Using the joystick you can change the preset.

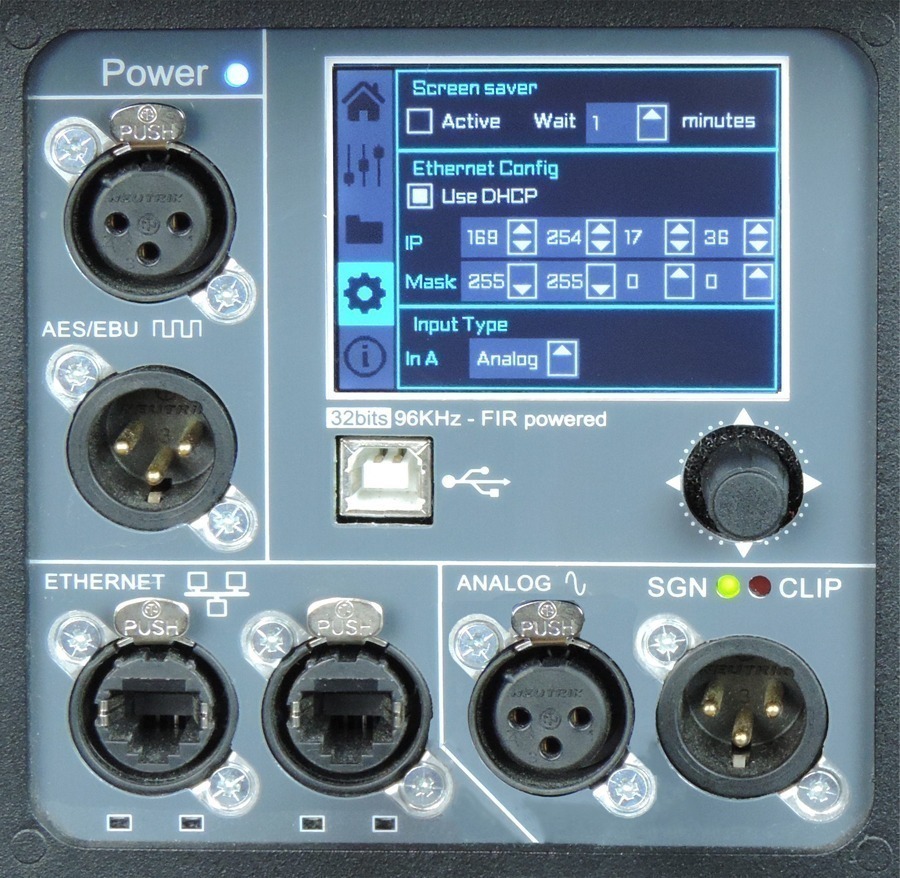

CONFIGURATION

This screen is to configurate Ethernet. You can choose automatic or manual.

You can also configure the screen saver.

And here you have the input selection. You can choose between analog or AES3 for channel 1 or channel 2.

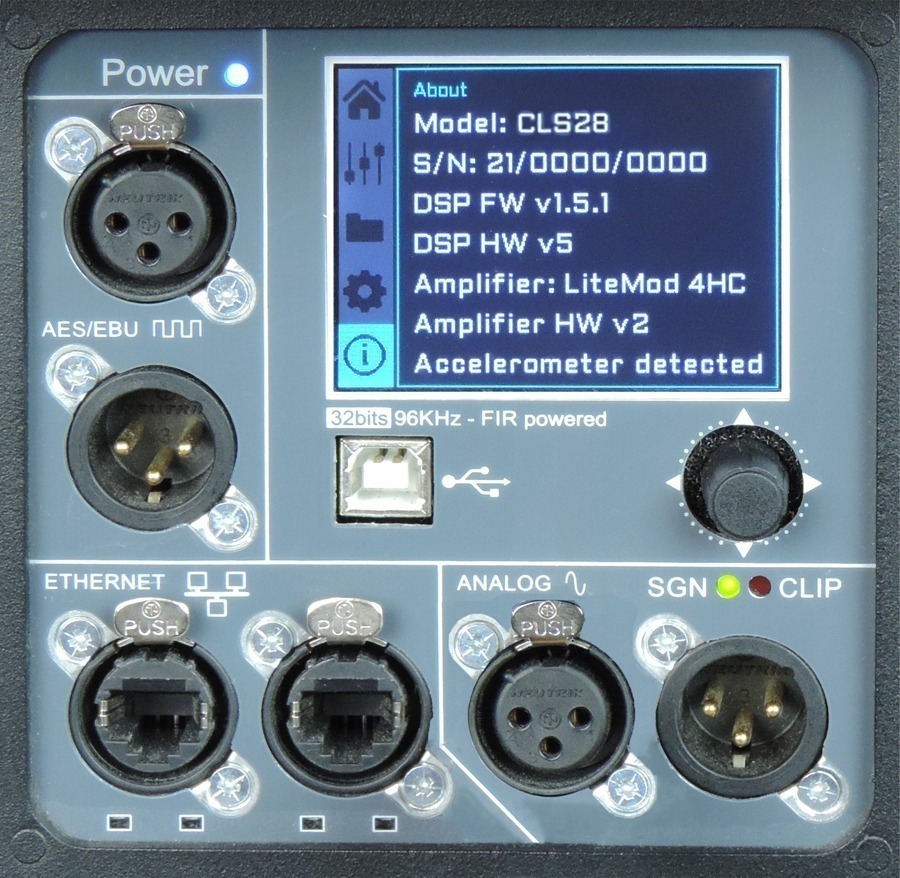

INFORMATION

The last screen shows you some general information regarding the cabinet’s components.

Here you can see the cabinet model, its serial number, DSP firmware and hardware versions, amp module model with hardware version, as well as the accelerometer status.
