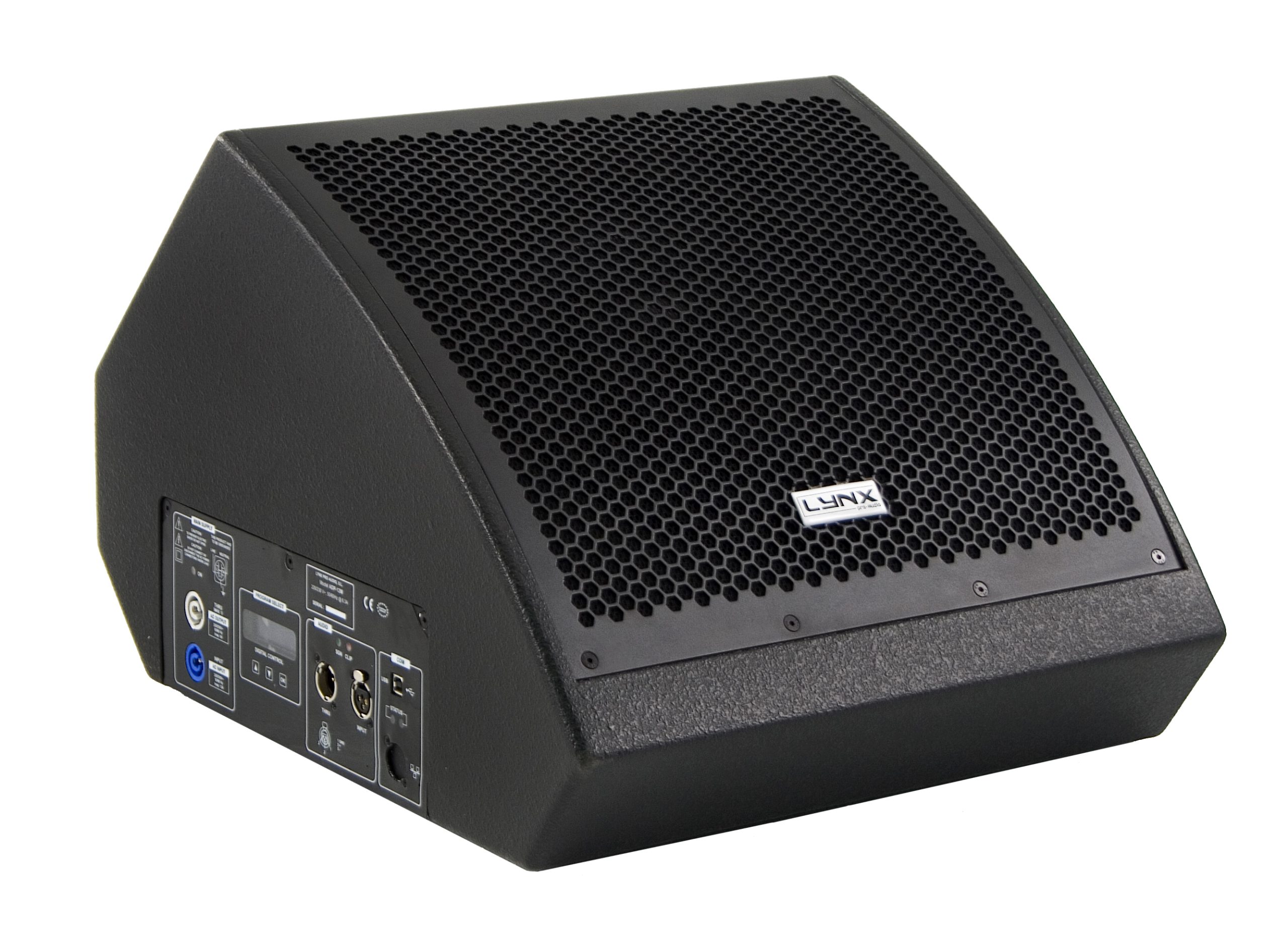

ADP-12M

First class powered cabinet

ADP-12M a high output, self powered (Class D switch mode power supply), two-way stage monitor. Consists of a 12″ (3″ voice coil) coaxial transducer with demodulating rings and a 3″ VC compression driver with a titanium diaphragm and a 40ºH x 60ºV dispersion horn. DSP (FIR technology) controlled with 1500W amplification, 132dB SPL.

The ADP-12M Stage monitor is part of the ADP Self powered, DSP integrated Series. It has been designed to offer the utmost sound reinforcement reliability, incorporating the latest acoustical and electronical technology and delivering incredible, dynamic sound.

The ADP-12M is an extremelly high power, high sensitivity two-way stage monitor providing exceptional performance. Each cabinet has a DSP integrated for system protection and optimization. This DSP applies linear phase (FIR) and classical crossovers. Other features include temperature sensor, fan speed control, Ethernet options and many more. Weight and performance are two important considerations when choosing a monitor.

The ADP-12M has an unbeatable power to size ratio, there is no need for external amplification racks, is very light weight and as such is the ideal solution for portable or fixed sound reinforcement enabling quick and easy set-ups.
Perfectly suited for:

Reinforcement
Stage monitor
Portable installation
Compact voice reinforcement

High-Efficiency Power: Bi-amplified Class D system delivering 2250W (1500W LF + 750W HF) with Power Factor Correction (PFC).
Advanced DSP: 56-bit Lynx DSP processing featuring FIR filters for linear phase response and system optimization.
Acoustic Performance: 139 dB Max SPL (peak) with a consistent 55º x 55º conic dispersion.
Premium Components: Dual 12″ transducers with aluminum voice coils and a 1.4″ titanium diaphragm compression driver.
Rugged Construction: Built from 15 mm premium birch plywood finished in high-resistance polyurea coating.
Intuitive Control: Back panel LCD screen for system adjustment and optional remote control via Ethernet (OCS).

Components

LF/MF: 1 x 12″ coaxial neodymium
HF: 3″ VC HF compression driver

Frequency Range

60 Hz – 20 KHz (-10dB)

Frequency Response

75 Hz – 18 KHz (± 3dB)

Max SPL

129 dB / 132 dB peak

Coverage

40º H x 60º V

Power

1500 W Class D

LF Amplifier: 1 x 750 W
HF Amplifier: 1 x 750 W

Processing

56 bit Lynx DSPB-22 with FIR filters

Cabinet Adjustment

Side panel LCD

Control Connections

XLR / Ethernet (OCS) optional

AC Power

230V / 115V selectable. 50/60 Hz 5A

AC Connections

16A Neutrik powerCon TRUE1 with link output

Finish

Polyurea coating, black colour

Material

15 mm premium birch plywood

Dimensions

370 x 470 x 554 mm (H x W x D)

Weight

20 kg (44 lbs)

More features

Hardware for ADP-12M

Enclosure

The ADP-12M cabinet is constructed from 11-ply premium birch plywood (15mm thickness) and finished with polyurea coating.

Internal design

The internal structure of the ADP-12M is heavily braced for greater longevity and all parts are assembled on metal inserts with metric screws. The amplification modules & DSP are housed in a separate chamber to the drivers avoiding excessive heat & vibration, thus delivering greater efficiency and reliability.

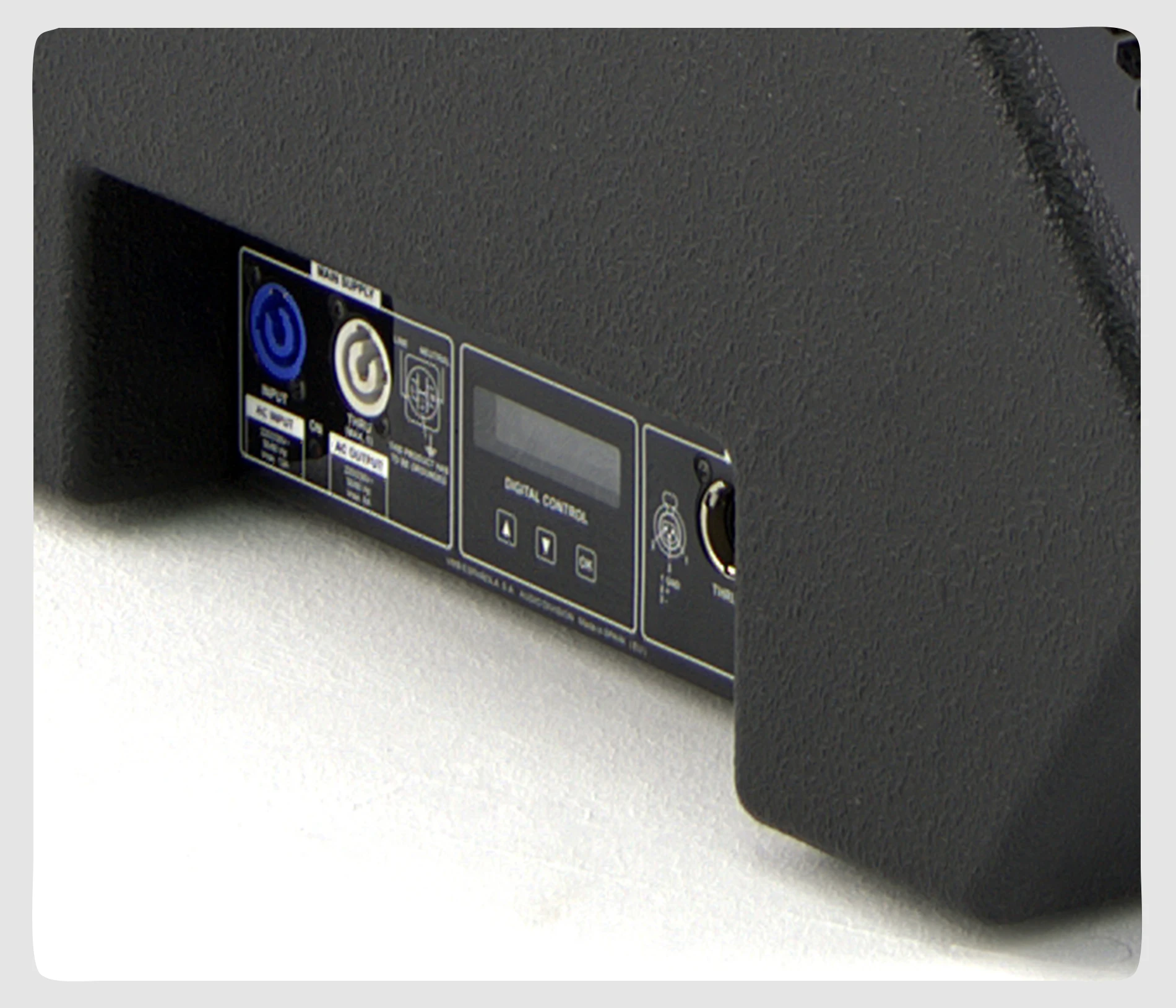

Side panel

The powder coated steel side panel contains all connections and houses the ADP-12M amplification modules and DSP, is easily accessible and housed separately from the drivers for increased reliability and efficiency.

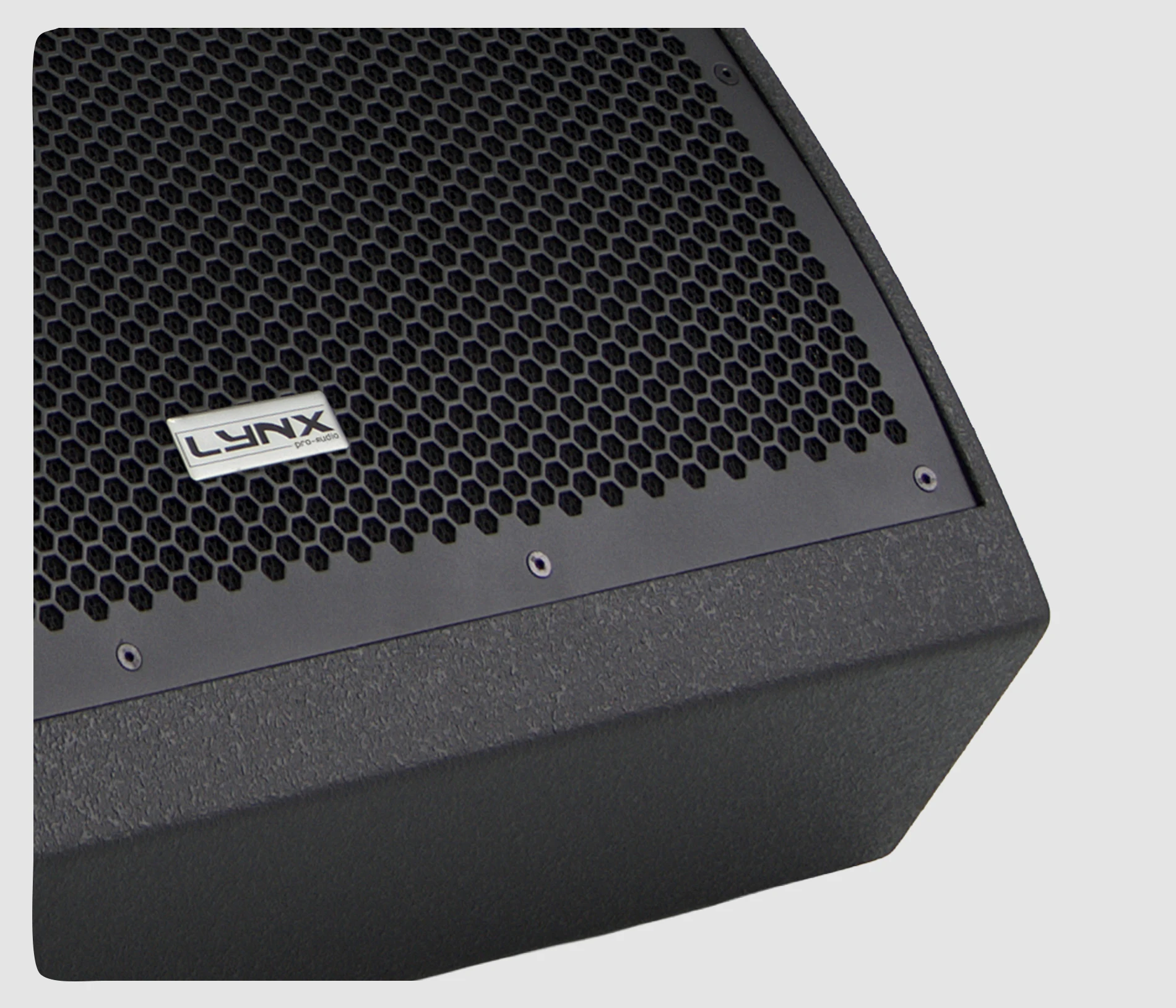

Grill

The ADP-12M has a heavy duty, powder coated front grille with a special acoustic rear fabric to protect the transducers against dust and dirt.

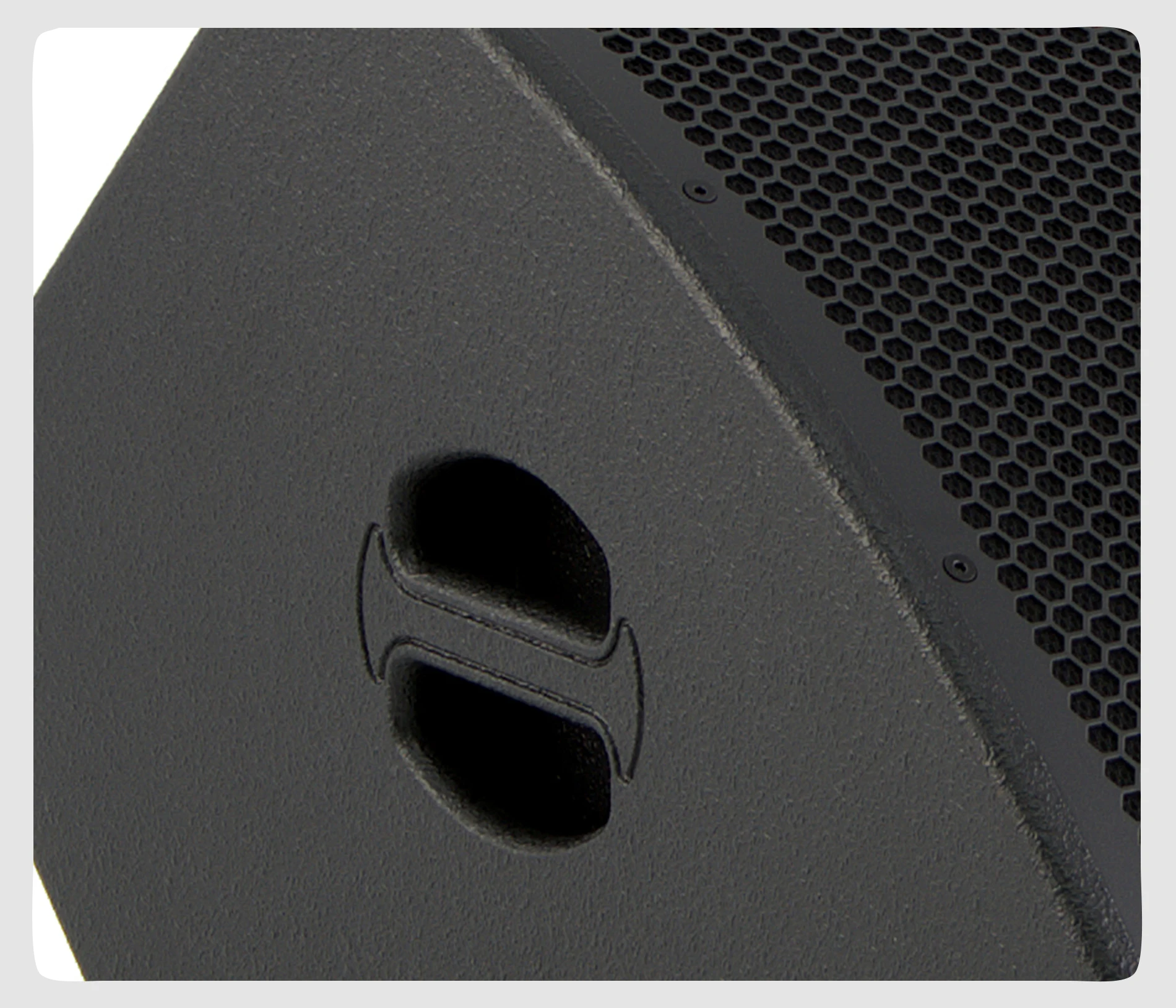

Handles

An ergonomic, die cast handle with firm internal grip is located on each side of the ADP-12M enclosure to facilitate transport, positioning and loading of the cabinets.

Transport

A durable flight case is available to transport two ADP-12M.

Accesories for ADP-12M

FC-12MX2

Flight case to transport two ADP-12M

Components

It uses a 12” coaxial neodymium woofer with demodulating rings for lower distortion and smoothed response and a 3” VC compression driver with composite titanium/mylar diaphragm and a 60º x 40º dispersion horn.

Modified exponential horn flare for improved acoustic loading and controlled coverage. Waterproof cone for outdoor use.Low weight and compact common magnet system design.

Amplification & DSP

Bi-amplified Class D with switching power supply. Includes one 750W power module for the 12” transducer and one 750W power module for the HF driver.

The amplification far exceeds the transducer need thus resulting in high output, high damping factor and extremely low levels of distortion.
